FET, MOSFET Arrays
Use the filters and product table below to compare FET, MOSFET Arrays components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Configuration | FET Feature | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Input Capacitance (Ciss) (Max) @ Vds | Power - Max | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SLA5086MOSFET 5P-CH 60V 5A 12SIP |
161 | - |
|
Datasheet | - | 12-SIP Exposed Tab | Tube | Not For New Designs | MOSFET (Metal Oxide) | 5 P-Channel, Common Source | Logic Level Gate | 60V | 5A | 220mOhm @ 3A, 10V | 2V @ 250µA | - | 790pF @ 10V | 5W | 150°C (TJ) | - | - | Through Hole | 12-SIP |
|
SLA5065MOSFET 4N-CH 60V 7A 15ZIP |
722 | - |
|
Datasheet | - | 15-SIP Exposed Tab, Formed Leads | Tube | Active | MOSFET (Metal Oxide) | 4 N-Channel | - | 60V | 7A | 100mOhm @ 3.5A, 10V | 2V @ 250µA | - | 660pF @ 10V | 4.8W | 150°C (TJ) | - | - | Through Hole | 15-ZIP |
|
SLA5068MOSFET 6N-CH 60V 7A 15ZIP |
352 | - |
|
Datasheet | - | 15-SIP Exposed Tab, Formed Leads | Tube | Active | MOSFET (Metal Oxide) | 6 N-Channel (3-Phase Bridge) | - | 60V | 7A | 100mOhm @ 3.5A, 10V | 2V @ 250µA | - | 660pF @ 10V | 5W | 150°C (TJ) | - | - | Through Hole | 15-ZIP |
|
|
SLA5064MOSFET 3N/3P-CH 60V 10A 12SIP |
972 | - |
|
Datasheet | - | 12-SIP Exposed Tab | Bulk | Active | MOSFET (Metal Oxide) | 3 N and 3 P-Channel (3-Phase Bridge) | Logic Level Gate | 60V | 10A | 140mOhm @ 5A, 4V | - | - | 460pF @ 10V, 1200pF @ 10V | 5W | 150°C (TJ) | - | - | Through Hole | 12-SIP |
|

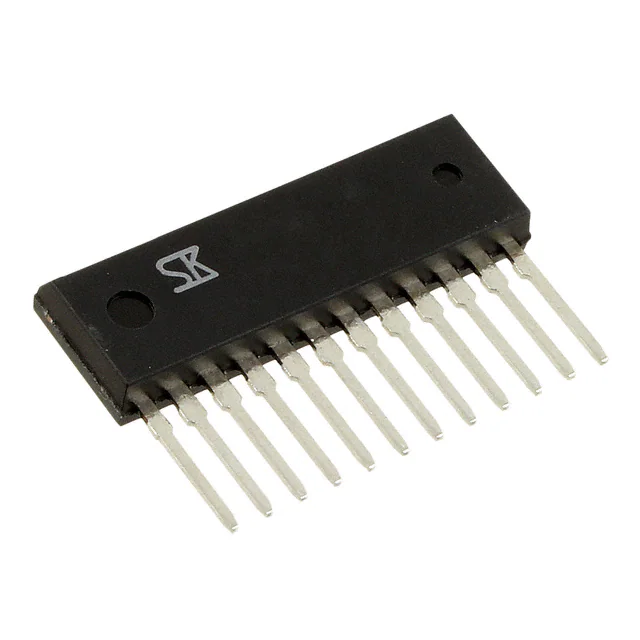

SMA5131MOSFET 6N-CH 250V 2A 12SIP |
81 | - |
|
Datasheet | - | 12-SIP | Tube | Active | MOSFET (Metal Oxide) | 6 N-Channel (3-Phase Bridge) | - | 250V | 2A | - | - | - | - | - | - | - | - | Through Hole | 12-SIP |
|
|
SMA5133MOSFET 3N/3P-CH 500V 2.5A 12SIP |
84 | - |
|
Datasheet | - | 12-SIP | Tube | Active | MOSFET (Metal Oxide) | 3 N and 3 P-Channel (3-Phase Bridge) | - | 500V | 2.5A | - | - | - | - | - | - | - | - | Through Hole | 12-SIP |
|
|
SMA5132MOSFET 3N/3P-CH 500V 1.5A 12SIP |
95 | - |
|
Datasheet | - | 12-SIP | Tube | Active | MOSFET (Metal Oxide) | 3 N and 3 P-Channel (3-Phase Bridge) | - | 500V | 1.5A | - | - | - | - | - | - | - | - | Through Hole | 12-SIP |
|
SLA5065 LF830MOSFET 4N-CH 60V 7A 15SIP |
60 | - |
|
Datasheet | - | 15-SIP | Tube | Active | MOSFET (Metal Oxide) | 4 N-Channel | - | 60V | 7A | 100mOhm @ 3.5A, 10V | 2V @ 250µA | - | 660pF @ 10V | 4.8W | 150°C (TJ) | - | - | Through Hole | 15-SIP |
|
|
SLA5201MOSFET 3N/3P-CH 600V 7A 15ZIP |
98 | - |
|
Datasheet | - | 15-SIP Exposed Tab, Formed Leads | Tube | Active | MOSFET (Metal Oxide) | 3 N and 3 P-Channel (3-Phase Bridge) | - | 600V | 7A | - | - | - | - | - | - | - | - | Through Hole | 15-ZIP |
|
SPF0004MOSFET 2N-CH 275V 6A 20HSOP |
45 | - |
|
Datasheet | - | 20-PowerSOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Not For New Designs | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 275V | 6A (Ta) | 260mOhm @ 6A, 10V | 2.6V @ 1mA | - | 960pF @ 10V | 2.5W (Tc) | 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 20-HSOP |
FET, MOSFET Arrays FAQ
Common questions about filtering, comparing and sourcing FET, MOSFET Arrays components.
How can I narrow the FET, MOSFET Arrays selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific FET, MOSFET Arrays part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
