FET, MOSFET Arrays
Use the filters and product table below to compare FET, MOSFET Arrays components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Configuration | FET Feature | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Input Capacitance (Ciss) (Max) @ Vds | Power - Max | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A2U8M12W3-FCMOSFET 4N-CH 750V/1.2KV 180A |
9,411 | - |
|
Datasheet | ECOPACK® | Module | Bulk | Active | Silicon Carbide (SiC) | 4 N-Channel (Three Level Inverter) | Silicon Carbide (SiC) | 750V, 1.2kV | 180A, 140A | 8mOhm @ 100A, 18V, 12.5mOhm @ 100A, 18V | 4.2V @ 2mA, 4V @ 2mA | 288nC @ 18V, 304nC @ 18V | 7660pF @ 400V, 7370pF @ 800V | - | -55°C ~ 150°C (TJ) | - | - | Chassis Mount | - |
|

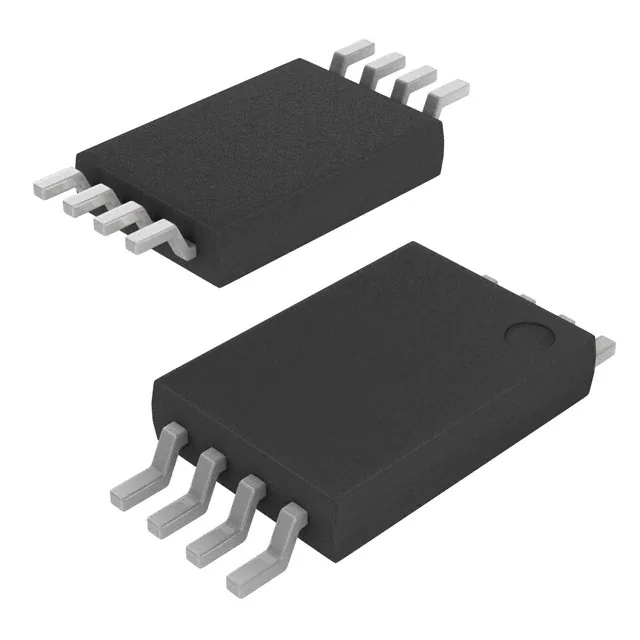

STC5NF20VMOSFET 2N-CH 20V 5A 8TSSOP |
9,404 | - |
|
Datasheet | STripFET™ II | 8-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 20V | 5A | 40mOhm @ 2.5A, 4.5V | 600mV @ 250µA | 11.5nC @ 4.5V | 460pF @ 15V | 1.5W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-TSSOP |
|
|
STL20DNF06LAGMOSFET 2N-CH 60V 20A POWERFLAT |
5,879 | - |
|
Datasheet | - | 8-PowerVDFN | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 60V | 20A | 40mOhm @ 4A, 10V | 2.5V @ 250µA | 22.5nC @ 10V | 670pF @ 25V | 75W | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PowerFlat™ (5x6) |
|
STL40C30H3LLMOSFET N/P-CH 30V 40A POWERFLAT |
3,960 | - |
|
Datasheet | STripFET™ VI | 8-PowerVDFN | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | N and P-Channel | Logic Level Gate | 30V | 40A, 30A | 21mOhm @ 4A, 10V | 1V @ 250µA (Min) | 4.6nC @ 4.5V | 475pF @ 24V | 60W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerFlat™ (5x6) |
|
|
STC5DNF30VMOSFET 2N-CH 30V 4.5A 8TSSOP |
2,989 | - |
|
Datasheet | STripFET™ | 8-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 30V | 4.5A | 35mOhm @ 2.3A, 4.5V | 600mV @ 250µA | 11.5nC @ 4.5V | 460pF @ 25V | 1.3W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-TSSOP |
|
|
STL38DN6F7AGMOSFET 2N-CH 60V 10A POWERFLAT |
2,404 | - |
|
Datasheet | STripFET™ F7 | 8-PowerVDFN | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 60V | 10A (Tc) | 27mOhm @ 5A, 10V | 4V @ 250µA | 7.9nC @ 10V | 380pF @ 25V | 57.7W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PowerFlat™ (5x6) |
|
STS1DN45K3MOSFET 2N-CH 450V 0.5A 8SOIC |
3,992 | - |
|
Datasheet | SuperMESH3™ | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 450V | 500mA | 3.8Ohm @ 500mA, 10V | 4.5V @ 50µA | 6nC @ 10V | 150pF @ 25V | 1.3W | 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
STC6NF30VMOSFET 2N-CH 30V 6A 8TSSOP |
2,383 | - |
|
Datasheet | STripFET™ II | 8-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 30V | 6A | 25mOhm @ 3A, 4.5V | 600mV @ 250µA | 9nC @ 2.5V | 800pF @ 25V | 1.5W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-TSSOP |
|
|
STL52DN4LF7AGMOSFET 2N-CH 40V 18A POWERFLAT |
9,234 | - |
|
Datasheet | STripFET™ F7 | 8-PowerVDFN | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 40V | 18A (Tc) | 16mOhm @ 6A, 10V | 2.5V @ 250µA | 9.4nC @ 10V | 500pF @ 25V | 65W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PowerFlat™ (5x6) |
|
|
STS3DNE60LMOSFET 2N-CH 60V 3A 8SOIC |
5,014 | - |
|
Datasheet | STripFET™ | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 60V | 3A | 80mOhm @ 1.5A, 10V | 1V @ 250µA | 13.5nC @ 4.5V | 815pF @ 25V | 2W | 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
FET, MOSFET Arrays FAQ
Common questions about filtering, comparing and sourcing FET, MOSFET Arrays components.
How can I narrow the FET, MOSFET Arrays selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific FET, MOSFET Arrays part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
