FET, MOSFET Arrays
Use the filters and product table below to compare FET, MOSFET Arrays components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Configuration | FET Feature | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Input Capacitance (Ciss) (Max) @ Vds | Power - Max | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SQJ952EP-T1_GE3MOSFET 2N-CH 60V 23A PPAK SO8 |
10,850 | - |
|
Datasheet | TrenchFET® | PowerPAK® SO-8 Dual | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 60V | 23A (Tc) | 20mOhm @ 10.3A, 10V | 2.5V @ 250µA | 30nC @ 10V | 1800pF @ 30V | 25W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PowerPAK® SO-8 Dual |
|
SQJ260EP-T1_GE3MOSFET 2N-CH 60V 20A PPAK SO8 |
2,732 | - |
|
Datasheet | TrenchFET® | PowerPAK® SO-8 Dual | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 60V | 20A (Tc), 54A (Tc) | 19mOhm @ 6A, 10V, 8.5mOhm @ 10A, 10V | 2.5V @ 250µA | 20nC @ 10V, 40nC @ 10V | 1100pF @ 25V, 2500pF @ 25V | 27W (Tc), 48W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PowerPAK® SO-8 Dual Asymmetric |
|
SIZ902DT-T1-GE3MOSFET 2N-CH 30V 16A 8POWERPAIR |
1,972 | - |
|
Datasheet | TrenchFET® | 8-PowerWDFN | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Half Bridge) | Logic Level Gate | 30V | 16A | 12mOhm @ 13.8A, 10V | 2.2V @ 250µA | 21nC @ 10V | 790pF @ 15V | 29W, 66W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-PowerPair® (6x5) |
|
SQ4282EY-T1_BE3MOSFET 2N-CH 30V 8A 8SOIC |
2,496 | - |
|
Datasheet | TrenchFET® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 30V | 8A (Tc) | 12.3mOhm @ 15A, 10V | 2.5V @ 250µA | 47nC @ 10V | 2367pF @ 15V | 3.9W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 8-SOIC |
|
SQJB48EP-T1_GE3MOSFET 2N-CH 40V 30A PPAK SO8 |
2,910 | - |
|
Datasheet | TrenchFET® | PowerPAK® SO-8 Dual | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 40V | 30A (Tc) | 5.2mOhm @ 8A, 10V | 3.3V @ 250µA | 40nC @ 10V | 2350pF @ 25V | 48W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PowerPAK® SO-8 Dual |
|
SIZF916DT-T1-GE3MOSFET 2N-CH 30V 23A 8POWERPAIR |
890 | - |
|
Datasheet | TrenchFET® Gen IV | 8-PowerWDFN | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 30V | 23A (Ta), 40A (Tc) | 4mOhm @ 10A, 10V, 1.25mOhm @ 10A, 10V | 2.4V @ 250µA, 2.2V @ 250µA | 22nC @ 10V, 95nC @ 10V | 1060pF @ 15V, 4320pF @ 15V | 3.4W (Ta), 26.6W (Tc), 4W (Ta), 60W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-PowerPair® (6x5) |
|
SIZ980BDT-T1-GE3MOSFET 2N-CH 30V 23.7A 8PWRPAIR |
10,508 | - |
|
Datasheet | TrenchFET® Gen IV | 8-PowerWDFN | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual), Schottky | - | 30V | 23.7A (Ta), 54.8A (Tc), 54.3A (Ta), 197A (Tc) | 4.39mOhm @ 15A, 10V, 1.06mOhm @ 19A, 10V | 2.2V @ 250µA | 18nC @ 10V, 79nC @ 10V | 790pF @ 15V, 3655pF @ 15V | 3.8W (Ta), 20W (Tc), 5W (Ta), 66W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-PowerPair® (6x5) |
|
|
SQ4949EY-T1_BE3MOSFET 2P-CH 30V 7.5A 8SOIC |
2,412 | - |
|
Datasheet | TrenchFET® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 P-Channel (Dual) | - | 30V | 7.5A (Tc) | 35mOhm @ 5.9A, 10V | 2.5V @ 250µA | 30nC @ 10V | 1020pF @ 25V | 3.3W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 8-SOIC |
|

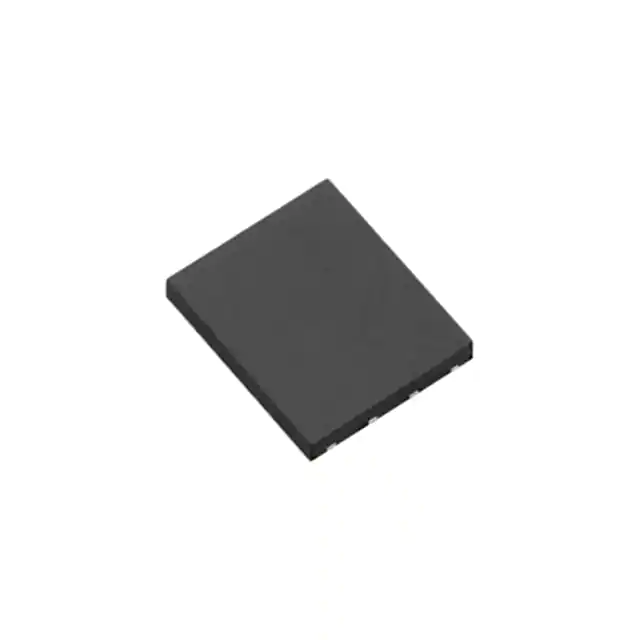

SIZF928DT-T1-GE3MOSFET 2N-CH 30V 33A 8POWERPAIR |
6,064 | - |
|
Datasheet | TrenchFET® Gen IV | 8-PowerWDFN | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 30V | 33A (Ta), 88A (Tc), 61A (Ta), 248A (Tc) | 2.45mOhm @ 10A, 10V, 0.75mOhm @ 15A, 10V | 2V @ 250µA | - | - | 3.9W (Ta), 28W (Tc), 4.5W (Ta), 74W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-PowerPair® (6x5) |
|
SI7922DN-T1-E3MOSFET 2N-CH 100V 1.8A PPAK 1212 |
1,285 | - |
|
Datasheet | TrenchFET® | PowerPAK® 1212-8 Dual | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 100V | 1.8A | 195mOhm @ 2.5A, 10V | 3.5V @ 250µA | 8nC @ 10V | - | 1.3W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® 1212-8 Dual |
FET, MOSFET Arrays FAQ
Common questions about filtering, comparing and sourcing FET, MOSFET Arrays components.
How can I narrow the FET, MOSFET Arrays selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific FET, MOSFET Arrays part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
