FET, MOSFET Arrays
Use the filters and product table below to compare FET, MOSFET Arrays components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Configuration | FET Feature | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Input Capacitance (Ciss) (Max) @ Vds | Power - Max | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CCB016M12GM3TMOSFET 6N-CH 1200V 50A MODULE |
49 | - |
|
Datasheet | - | Module | Box | Active | Silicon Carbide (SiC) | 6 N-Channel | - | 1200V (1.2kV) | 50A (Tj) | 20.8mOhm @ 50A, 15V | 3.9V @ 23mA | 236nC @ 15V | 6700pF @ 1000V | 10mW | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | Module |
|
|
CAB006A12GM3TMOSFET 2N-CH 1200V 200A MODULE |
39 | - |
|
Datasheet | - | Module | Box | Active | Silicon Carbide (SiC) | 2 N-Channel (Half Bridge) | - | 1200V (1.2kV) | 200A (Tj) | 6.9mOhm @ 200A, 15V | 3.6V @ 69mA | 708nC @ 15V | 20400pF @ 800V | - | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | Module |
|
|
CAB5R0A23GM4MOSFET 2N-CH 2300V 150A |
30 | - |
|
Datasheet | - | Module | Box | Active | Silicon Carbide (SiC) | 2 N-Channel (Half Bridge) | Silicon Carbide (SiC) | 2300V (2.3kV) | 150A | 7mOhm @ 240A, 15V | 4V @ 114mA | 880nC @ 15V | 36600pF @ 1.5kV | 710W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | - |
|

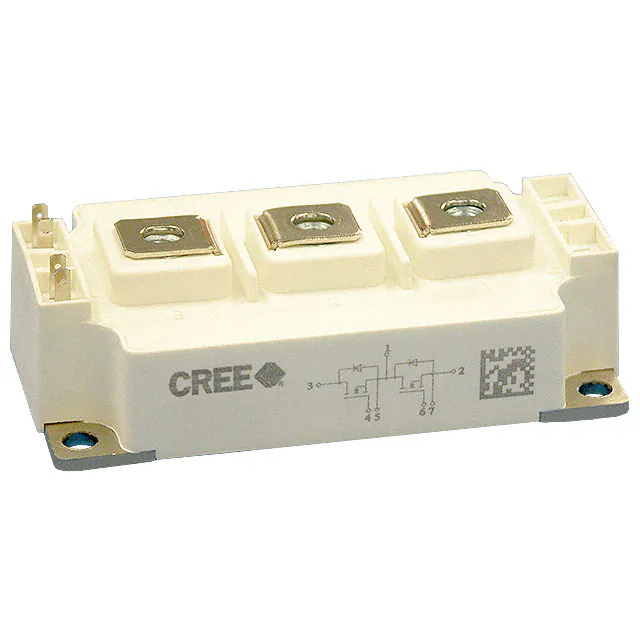

CAS120M12BM2MOSFET 2N-CH 1200V 193A MODULE |
117 | - |
|
Datasheet | Z-Rec® | Module | Bulk | Last Time Buy | Silicon Carbide (SiC) | 2 N-Channel (Half Bridge) | - | 1200V (1.2kV) | 193A (Tc) | 16mOhm @ 120A, 20V | 2.6V @ 6mA (Typ) | 378nC @ 20V | 6470pF @ 800V | 925W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | Module |
|

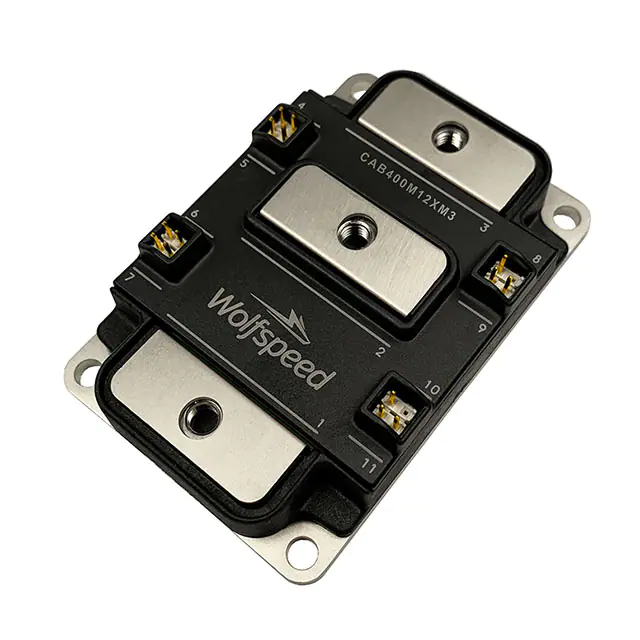

CAB400M12XM3MOSFET 2N-CH 1200V 395A |
24 | - |
|
Datasheet | - | Module | Box | Active | Silicon Carbide (SiC) | 2 N-Channel (Dual) | - | 1200V (1.2kV) | 395A (Tc) | 5.3mOhm @ 400A, 15V | 3.6V @ 92mA | 908nC @ 15V | 2450pF @ 800V | - | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | - |
|

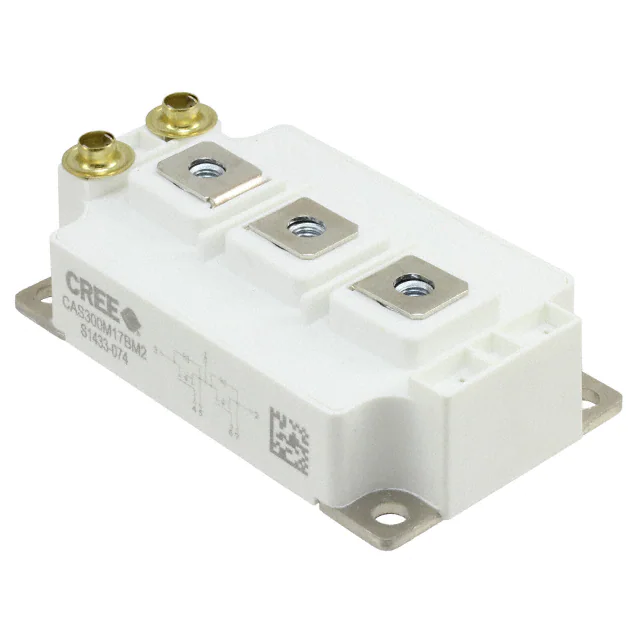

CAS300M17BM2MOSFET 2N-CH 1700V 325A MODULE |
1 | - |
|
Datasheet | Z-Rec® | Module | Box | Last Time Buy | Silicon Carbide (SiC) | 2 N-Channel (Half Bridge) | - | 1700V (1.7kV) | 325A (Tc) | 10mOhm @ 225A, 20V | 2.3V @ 15mA (Typ) | 1076nC @ 20V | 20000pF @ 1000V | 1760W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | Module |
|
EAB450M12XM3MOSFET 2N-CH 1200V 450A |
3 | - |
|
Datasheet | - | Module | Box | Active | Silicon Carbide (SiC) | 2 N-Channel (Half Bridge) | - | 1200V (1.2kV) | 450A (Tc) | 3.7mOhm @ 450A, 15V | 3.6V @ 132mA | 1330nC @ 15V | 38000pF @ 800V | - | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | - |
|

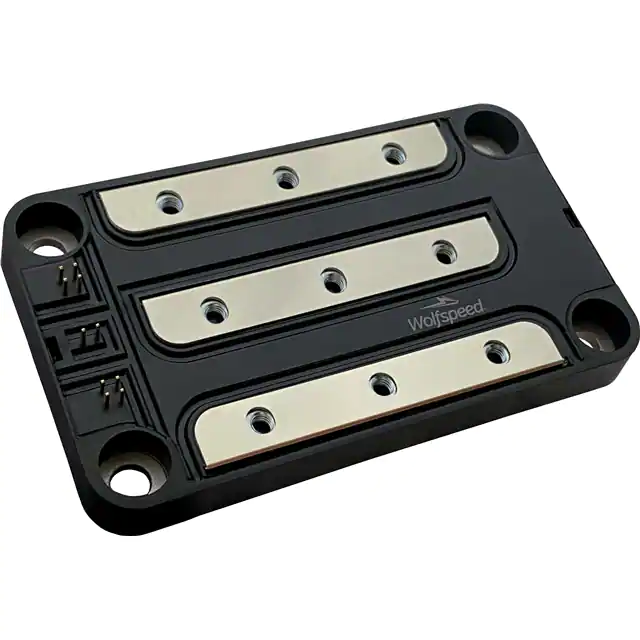

CAB760M12HM3MOSFET 2N-CH 1200V 1015A MODULE |
6 | - |
|
Datasheet | - | Module | Box | Active | Silicon Carbide (SiC) | 2 N-Channel (Half Bridge) | - | 1200V (1.2kV) | 1015A (Tc) | 1.73mOhm @ 760A, 15V | 3.6V @ 280mA | 2724nC @ 15V | 79400pF @ 800V | - | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | Module |
|
|
CBB032M12FM3TMOSFET 4N-CH 1200V 39A |
22 | - |
|
Datasheet | - | Module | Box | Active | Silicon Carbide (SiC) | 4 N-Channel (Full Bridge) | - | 1200V (1.2kV) | 39A (Tj) | 44mOhm @ 30A, 15V | 3.9V @ 11mA | 118nC @ 15V | 3500pF @ 1000V | - | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | - |
|
CAB006A12GM3MOSFET 2N-CH 1200V 200A |
10 | - |
|
Datasheet | - | Module | Tray | Active | Silicon Carbide (SiC) | 2 N-Channel (Half Bridge) | - | 1200V (1.2kV) | 200A (Tj) | 6.9mOhm @ 200A, 15V | 3.6V @ 69mA | 708nC @ 15V | 20400pF @ 800V | - | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | - |
FET, MOSFET Arrays FAQ
Common questions about filtering, comparing and sourcing FET, MOSFET Arrays components.
How can I narrow the FET, MOSFET Arrays selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific FET, MOSFET Arrays part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
