FET, MOSFET Arrays
Use the filters and product table below to compare FET, MOSFET Arrays components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Configuration | FET Feature | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Input Capacitance (Ciss) (Max) @ Vds | Power - Max | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DMN2023UCB4-7MOSFET 2N-CH 24V 6A X1-WLB1818-4 |
3,000 | - |
|
Datasheet | - | 4-XFBGA, WLBGA | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) Common Drain | - | 24V | 6A (Ta) | - | 1.3V @ 1mA | 37nC @ 4.5V | 3333pF @ 10V | 1.45W | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | X1-WLB1818-4 |
|
DMN61D8LVT-13MOSFET 2N-CH 60V 0.63A TSOT26 |
2,434 | - |
|
Datasheet | - | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 60V | 630mA | 1.8Ohm @ 150mA, 5V | 2V @ 1mA | 0.74nC @ 5V | 12.9pF @ 12V | 820mW | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TSOT-26 |
|
DMN2024UTS-13MOSFET 2N-CH 20V 6.2A 8TSSOP |
2,367 | - |
|
Datasheet | - | 8-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 20V | 6.2A (Ta), 15.2A (Tc) | 24mOhm @ 6.5A, 4.5V | 950mV @ 250µA | 0.9nC @ 10V | 647pF @ 10V | 890mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-TSSOP |
|
|
DMG6968UTS-13MOSFET 2N-CH 20V 5.2A 8TSSOP |
2,299 | - |
|
Datasheet | - | 8-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) Common Drain | Logic Level Gate | 20V | 5.2A | 23mOhm @ 6.5A, 4.5V | 950mV @ 250µA | 8.8nC @ 4.5V | 143pF @ 10V | 1W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-TSSOP |
|
DMN2014LHAB-13MOSFET 2N-CH 20V 9A 6UDFN |
10,000 | - |
|
Datasheet | - | 6-UFDFN Exposed Pad | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 20V | 9A (Ta) | 13mOhm @ 4A, 4.5V | 1.1V @ 250µA | 16nC @ 4.5V | 1550pF @ 10V | 800mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | U-DFN2030-6 (Type B) |
|
DMT3020LFDBQ-7MOSFET 2N-CH 30V 7.7A 6UDFN |
2,295 | - |
|
Datasheet | - | 6-UDFN Exposed Pad | Tape & Reel (TR) | Active | - | 2 N-Channel (Dual) | - | 30V | 7.7A (Ta) | 20mOhm @ 9A, 10V | 2.5V @ 250µA | 7nC @ 10V | 393pF @ 15V | 700mW | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | U-DFN2020-6 (Type B) |
|

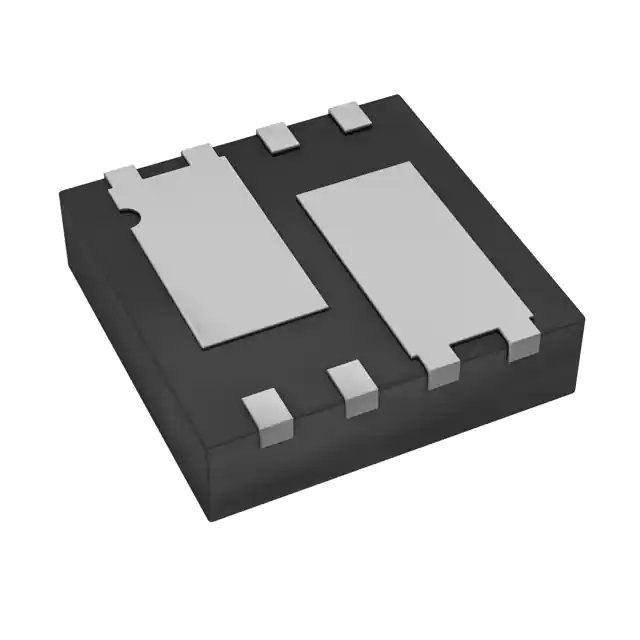

DMN3016LDN-7MOSFET 2N-CH 30V 7.3A 8VDFN |
1,878 | - |
|
Datasheet | - | 8-PowerWDFN | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 30V | 7.3A | 20mOhm @ 11A, 10V | 2V @ 250µA | 25.1nC @ 10V | 1415pF @ 15V | 1.1W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | V-DFN3030-8 (Type J) |
|
|
DMP1055UFDB-7MOSFET 2P-CH 12V 3.9A 6UDFN |
2,900 | - |
|
Datasheet | - | 6-UDFN Exposed Pad | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 P-Channel (Dual) | - | 12V | 3.9A | 59mOhm @ 3.6A, 4.5V | 1V @ 250µA | 20.8nC @ 8V | 1028pF @ 6V | 1.36W | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | U-DFN2020-6 (Type B) |
|
DMT3020LSD-13MOSFET 2N-CH 30V 16A 8SO |
2,318 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 30V | 16A (Tc) | 20mOhm @ 9A, 10V | 2.5V @ 250µA | 7nC @ 10V | 393pF @ 15V | 1W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SO |
|
|
DMN12M8UCA10-7MOSFET 2N-CH 12V X4-DSN3015-10 |
4,985 | - |
|
Datasheet | - | 10-SMD, No Lead | Bulk | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) Common Drain | - | 12V | 25A (Ta) | 2.8mOhm @ 6A, 4.5V | 1.4V @ 1.11mA | 36.4nC @ 4V | 2504pF @ 10V | 1.4W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | X4-DSN3015-10 |
FET, MOSFET Arrays FAQ
Common questions about filtering, comparing and sourcing FET, MOSFET Arrays components.
How can I narrow the FET, MOSFET Arrays selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific FET, MOSFET Arrays part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
