FETs, MOSFETs
Use the filters and product table below to compare FETs, MOSFETs components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AUIRFS8408MOSFET N-CH 40V 195A D2PAK |
9,745 | - |
|
Datasheet | HEXFET® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 195A (Tc) | 10V | 1.6mOhm @ 100A, 10V | 3.9V @ 250µA | 324 nC @ 10 V | ±20V | 10820 pF @ 25 V | - | 294W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | D2PAK |
|
AUIRFS8408-7PMOSFET N-CH 40V 240A D2PAK |
6,741 | - |
|
Datasheet | HEXFET® | TO-263-7, D2PAK (6 Leads + Tab), TO-263CB | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 240A (Tc) | 10V | 1mOhm @ 100A, 10V | 3.9V @ 250µA | 315 nC @ 10 V | ±20V | 10250 pF @ 25 V | - | 294W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PG-TO263-7-900 |
|
AUIRFS8409MOSFET N-CH 40V 195A D2PAK |
2,470 | - |
|
Datasheet | HEXFET® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 195A (Tc) | 10V | 1.2mOhm @ 100A, 10V | 3.9V @ 250µA | 450 nC @ 10 V | ±20V | 14240 pF @ 25 V | - | 375W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PG-TO263-3 |
|
AUIRFR8401MOSFET N-CH 40V 100A DPAK |
6,127 | - |
|
Datasheet | HEXFET® | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 100A (Tc) | 10V | 4.25mOhm @ 60A, 10V | 3.9V @ 50µA | 63 nC @ 10 V | ±20V | 2200 pF @ 25 V | - | 79W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-252AA (DPAK) |
|
AUIRFU8405MOSFET N-CH 40V 100A IPAK |
5,228 | - |
|
Datasheet | HEXFET® | TO-251-3 Short Leads, IPAK, TO-251AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 100A (Tc) | 10V | 1.98mOhm @ 90A, 10V | 3.9V @ 100µA | 155 nC @ 10 V | ±20V | 5171 pF @ 25 V | - | 163W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | IPAK |
|
AUIRFU8401MOSFET N-CH 40V 100A IPAK |
5,759 | - |
|
Datasheet | HEXFET® | TO-251-3 Short Leads, IPAK, TO-251AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 100A (Tc) | 10V | 4.25mOhm @ 60A, 10V | 3.9V @ 500µA | 63 nC @ 10 V | ±20V | 2200 pF @ 25 V | - | 79W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | IPAK |
|
IRFH4213TRPBFMOSFET N-CH 25V 41A PQFN |
3,365 | - |
|
Datasheet | HEXFET® | 8-PowerTDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 25 V | 41A (Ta) | 4.5V, 10V | 1.35mOhm @ 50A, 10V | 2.1V @ 100µA | 54 nC @ 10 V | ±20V | 3420 pF @ 13 V | - | 3.6W (Ta), 89W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PQFN (5x6) |
|

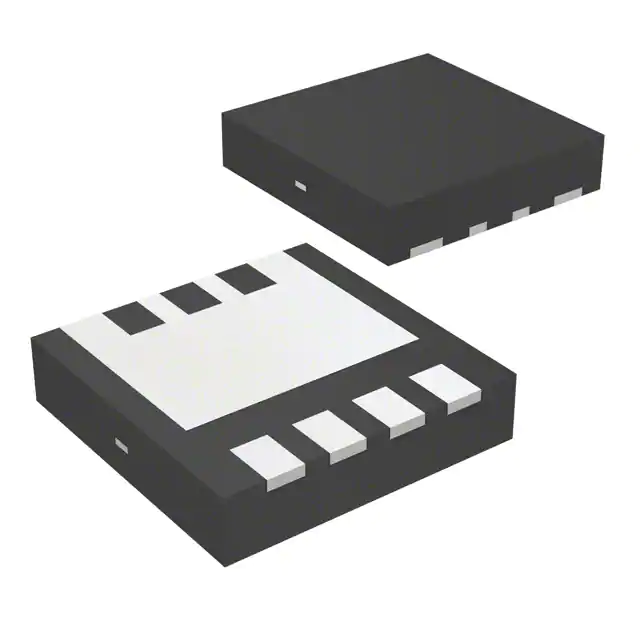

IRFHM4226TRPBFMOSFET N CH 25V 28A PQFN |
8,716 | - |
|
Datasheet | HEXFET® | 8-TQFN Exposed Pad | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 25 V | 28A (Ta) | 4.5V, 10V | 2.2mOhm @ 30A, 10V | 2.1V @ 50µA | 32 nC @ 10 V | ±20V | 2000 pF @ 13 V | - | 2.7W (Ta), 39W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | - |
|
|
IPD60R600P6MOSFET N-CH 600V 7.3A TO252-3 |
7,517 | - |
|
Datasheet | CoolMOS™ P6 | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Discontinued at Digi-Key | N-Channel | MOSFET (Metal Oxide) | 600 V | 7.3A (Tc) | 10V | 600mOhm @ 2.4A, 10V | - | 12 nC @ 10 V | ±20V | 557 pF @ 100 V | - | 63W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-TO252-3 |
|
IPA65R099C6XKSA1MOSFET N-CH 650V 38A TO220 |
3,585 | - |
|
Datasheet | CoolMOS™ | TO-220-3 Full Pack | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 650 V | 38A (Tc) | 10V | 99mOhm @ 12.8A, 10V | 3.5V @ 1.2mA | 127 nC @ 10 V | ±20V | 2780 pF @ 100 V | - | 35W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO220-3-111 |
FETs, MOSFETs FAQ
Common questions about filtering, comparing and sourcing FETs, MOSFETs components.
How can I narrow the FETs, MOSFETs selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific FETs, MOSFETs part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
