FETs, MOSFETs
Use the filters and product table below to compare FETs, MOSFETs components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FCPF380N60E-F152MOSFET N-CH 600V 10.2A TO220F-3 |
7,152 | - |
|
Datasheet | SuperFET® II | TO-220-3 Full Pack | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 10.2A (Tc) | - | 380mOhm @ 5A, 10V | 3.5V @ 250µA | 45 nC @ 10 V | - | 1770 pF @ 25 V | - | 31W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220F-3 |
|
|
FDPF4N60NZMOSFET N-CH 600V 3.8A TO220F |
7,483 | - |
|
Datasheet | UniFET-II™ | TO-220-3 Full Pack | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 3.8A (Tc) | 10V | 2.5Ohm @ 1.9A, 10V | 5V @ 250µA | 10.8 nC @ 10 V | ±25V | 510 pF @ 25 V | - | 28W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220F-3 |
|
FDB42AN15A0-F085MOSFET N-CH 150V 35A D2PAK |
5,957 | - |
|
Datasheet | PowerTrench® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 150 V | 35A (Tc) | 10V | 42mOhm @ 12A, 10V | 4V @ 250µA | 36 nC @ 10 V | ±20V | 2040 pF @ 25 V | - | 150W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | TO-263 (D2PAK) |
|
FDD120AN15A0-F085MOSFET N-CH 150V 14A DPAK |
5,338 | - |
|
Datasheet | PowerTrench® | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 150 V | 14A (Tc) | 10V | 120mOhm @ 4A, 10V | 4V @ 250µA | 14 nC @ 10 V | ±20V | 743 pF @ 25 V | - | 65W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | TO-252AA |
|
WPH4003-1EMOSFET N-CH 1700V 2.5A TO3PF |
5,104 | - |
|
Datasheet | - | TO-3P-3 Full Pack | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 1700 V | 2.5A (Tc) | 10V | 10.5Ohm @ 1.5A, 10V | - | 48 nC @ 10 V | ±30V | 850 pF @ 30 V | - | 3W (Ta), 55W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-3PF |
|

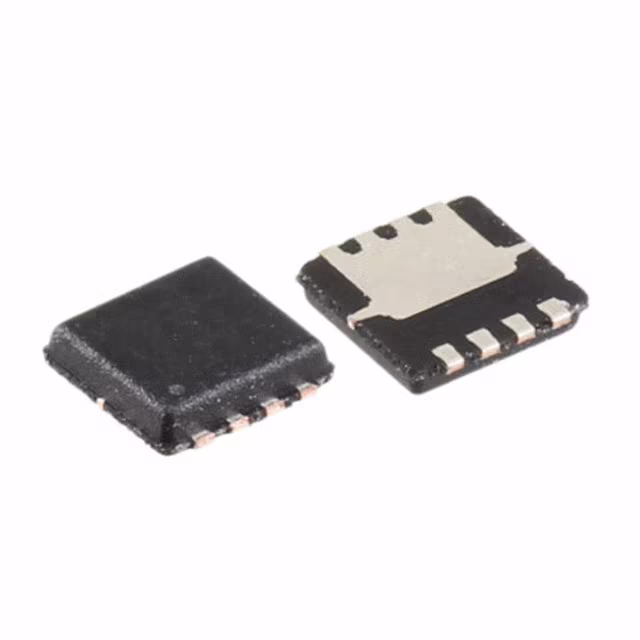

FDMC612PZMOSFET P-CH 20V 14A 8MLP |
4,698 | - |
|
Datasheet | PowerTrench® | 8-PowerWDFN | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 14A (Ta) | 2.5V, 4.5V | 8.4mOhm @ 14A, 4.5V | 1.5V @ 250µA | 74 nC @ 4.5 V | ±12V | 7995 pF @ 10 V | - | 2.3W (Ta), 26W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-MLP (3.3x3.3) |
|
FDB035AN06A0-F085MOSFET N-CH 60V 22A D2PAK |
7,562 | - |
|
Datasheet | PowerTrench® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 22A (Ta) | 10V | 3.5mOhm @ 80A, 10V | 4V @ 250µA | 124 nC @ 10 V | ±20V | 6400 pF @ 25 V | - | 310W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | TO-263 (D2PAK) |
|
|
FDB3632-F085MOSFET N-CH 100V 12A TO263AB |
5,718 | - |
|
Datasheet | PowerTrench® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 12A (Ta) | 10V | 9mOhm @ 80A, 10V | 4V @ 250µA | 110 nC @ 10 V | ±20V | 6000 pF @ 25 V | - | 310W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | TO-263 (D2PAK) |
|
FDD10AN06A0-F085MOSFET N-CH 60V 11A TO252AA |
3,906 | - |
|
Datasheet | PowerTrench® | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 11A (Ta) | 10V | 10.5mOhm @ 50A, 10V | 4V @ 250µA | 37 nC @ 10 V | ±20V | 1840 pF @ 25 V | - | 135W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | TO-252AA |
|
|
FDD8870-F085MOSFET N-CH 30V 21A TO252AA |
8,374 | - |
|
Datasheet | PowerTrench® | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 21A (Ta) | 4.5V, 10V | 3.9mOhm @ 35A, 10V | 2.5V @ 250µA | 118 nC @ 10 V | ±20V | 5160 pF @ 15 V | - | 160W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | TO-252AA |
FETs, MOSFETs FAQ
Common questions about filtering, comparing and sourcing FETs, MOSFETs components.
How can I narrow the FETs, MOSFETs selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific FETs, MOSFETs part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
