FETs, MOSFETs
Use the filters and product table below to compare FETs, MOSFETs components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CSD17302Q5AMOSFET N-CH 30V 16A/87A 8VSON |
19,753 | - |
|
Datasheet | NexFET™ | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 16A (Ta), 87A (Tc) | 3V, 8V | 7.9mOhm @ 14A, 8V | 1.7V @ 250µA | 7 nC @ 4.5 V | +10V, -8V | 950 pF @ 15 V | - | 3W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-VSONP (5x6) |
|
CSD23202W10TMOSFET P-CH 12V 2.2A 4DSBGA |
15,097 | - |
|
Datasheet | NexFET™ | 4-UFBGA, DSBGA | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 12 V | 2.2A (Ta) | 1.5V, 4.5V | 53mOhm @ 500mA, 4.5V | 900mV @ 250µA | 3.8 nC @ 4.5 V | -6V | 512 pF @ 6 V | - | 1W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 4-DSBGA (1x1) |
|
CSD17581Q3ATMOSFET N-CH 30V 60A 8VSON |
10,850 | - |
|
Datasheet | NexFET™ | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 60A (Tc) | 4.5V, 10V | 3.8mOhm @ 16A, 10V | 1.7V @ 250µA | 54 nC @ 10 V | ±20V | 3640 pF @ 15 V | - | 2.8W (Ta), 63W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-VSONP (3x3.3) |
|
|
CSD16404Q5AMOSFET N-CH 25V 21A/81A 8VSON |
4,328 | - |
|
Datasheet | NexFET™ | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 25 V | 21A (Ta), 81A (Tc) | 4.5V, 10V | 5.1mOhm @ 20A, 10V | 2.1V @ 250µA | 8.5 nC @ 4.5 V | +16V, -12V | 1220 pF @ 12.5 V | - | 3W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-VSONP (5x6) |
|
CSD23203WTMOSFET P-CH 8V 3A 6DSBGA |
39,033 | - |
|
Datasheet | NexFET™ | 6-UFBGA, DSBGA | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 8 V | 3A (Ta) | 1.8V, 4.5V | 19.4mOhm @ 1.5A, 4.5V | 1.1V @ 250µA | 6.3 nC @ 4.5 V | -6V | 914 pF @ 4 V | - | 750mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-DSBGA (1x1.5) |
|

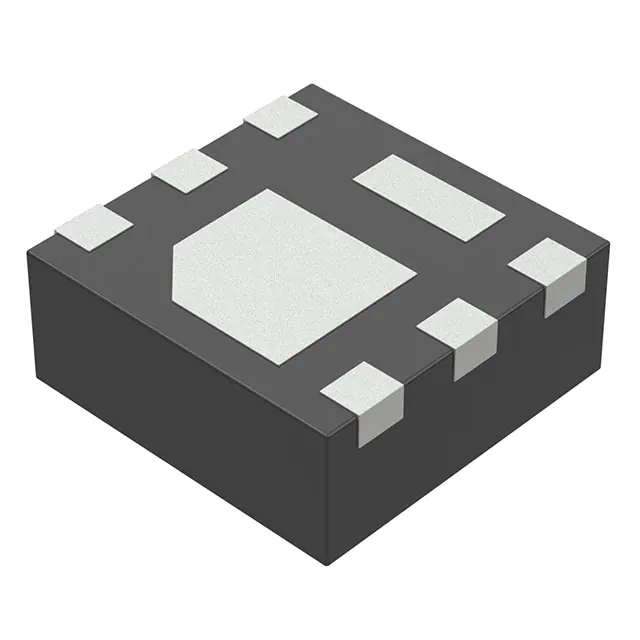

CSD17318Q2TMOSFET N-CHANNEL 30V 25A 6WSON |
2,670 | - |
|
Datasheet | NexFET™ | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 25A (Tc) | 2.5V, 8V | 15.1mOhm @ 8A, 8V | 1.2V @ 250µA | 6 nC @ 4.5 V | ±10V | 879 pF @ 15 V | - | 16W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-WSON (2x2) |
|
|
CSD17581Q5ATMOSFET N-CH 30V 24A/123A 8VSON |
1,897 | - |
|
Datasheet | NexFET™ | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 24A (Ta), 123A (Tc) | 4.5V, 10V | 3.4mOhm @ 16A, 10V | 1.7V @ 250µA | 54 nC @ 10 V | ±20V | 3640 pF @ 15 V | - | 3.1W (Ta), 83W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-VSONP (5x6) |
|
|
CSD13306WTMOSFET N-CH 12V 3.5A 6DSBGA |
1,255 | - |
|
Datasheet | NexFET™ | 6-UFBGA, DSBGA | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 12 V | 3.5A (Ta) | 2.5V, 4.5V | 10.2mOhm @ 1.5A, 4.5V | 1.3V @ 250µA | 11.2 nC @ 4.5 V | ±10V | 1370 pF @ 6 V | - | 1.9W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-DSBGA (1x1.5) |
|
CSD22205LTMOSFET P-CH 8V 7.4A 4PICOSTAR |
30,195 | - |
|
Datasheet | NexFET™ | 4-XFLGA | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 8 V | 7.4A (Ta) | 1.5V, 4.5V | 9.9mOhm @ 1A, 4.5V | 1.05V @ 250µA | 8.5 nC @ 4.5 V | -6V | 1390 pF @ 4 V | - | 600mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 4-PICOSTAR |
|
|
CSD25304W1015TMOSFET P-CH 20V 3A 6DSBGA |
1,482 | - |
|
Datasheet | NexFET™ | 6-UFBGA, DSBGA | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 3A (Ta) | 1.8V, 4.5V | 32.5mOhm @ 1.5A, 4.5V | 1.15V @ 250µA | 4.4 nC @ 4.5 V | ±8V | 595 pF @ 10 V | - | 750mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-DSBGA (1x1.5) |
FETs, MOSFETs FAQ
Common questions about filtering, comparing and sourcing FETs, MOSFETs components.
How can I narrow the FETs, MOSFETs selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific FETs, MOSFETs part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
