FETs, MOSFETs
Use the filters and product table below to compare FETs, MOSFETs components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IXFA30N60XMOSFET N-CH 600V 30A TO263 |
9,773 | - |
|
Datasheet | HiPerFET™, Ultra X | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 30A (Tc) | 10V | 155mOhm @ 15A, 10V | 4.5V @ 4mA | 56 nC @ 10 V | ±30V | 2270 pF @ 25 V | - | 500W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263AA (IXFA) |
|
IXFP220N06T3MOSFET N-CH 60V 220A TO220AB |
9,919 | - |
|
Datasheet | HiperFET™, TrenchT3™ | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 220A (Tc) | 10V | 4mOhm @ 100A, 10V | 4V @ 250µA | 136 nC @ 10 V | ±20V | 8500 pF @ 25 V | - | 440W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220-3 |
|
|
IXTA270N04T4MOSFET N-CH 40V 270A TO263AA |
4,003 | - |
|
Datasheet | Trench | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 270A (Tc) | 10V | 2.2mOhm @ 50A, 10V | 4V @ 250µA | 182 nC @ 10 V | ±15V | 9140 pF @ 25 V | - | 375W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-263AA |
|
IXTA270N04T4-7MOSFET N-CH 40V 270A TO263-7 |
3,649 | - |
|
Datasheet | Trench | TO-263-7, D2PAK (6 Leads + Tab) | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 270A (Tc) | 10V | 2.2mOhm @ 50A, 10V | 4V @ 250µA | 182 nC @ 10 V | ±15V | 9140 pF @ 25 V | - | 375W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-263-7 (IXTA) |
|
IXTQ26N60PMOSFET N-CH 600V 26A TO3P |
9,402 | - |
|
Datasheet | Polar | TO-3P-3, SC-65-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 26A (Tc) | 10V | 270mOhm @ 500mA, 10V | 5V @ 250µA | 72 nC @ 10 V | ±30V | 4150 pF @ 25 V | - | 460W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-3P |
|
IXTC13N50MOSFET N-CH 500V 12A ISOPLUS220 |
2,171 | - |
|
Datasheet | - | ISOPLUS220™ | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 12A (Tc) | 10V | 400mOhm @ 6.5A, 10V | 4V @ 2.5mA | 120 nC @ 10 V | ±20V | 2800 pF @ 25 V | - | 140W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | ISOPLUS220™ |
|
|
IXTC26N50PMOSFET N-CH 500V 15A ISOPLUS220 |
9,804 | - |
|
Datasheet | PolarHV™ | ISOPLUS220™ | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 15A (Tc) | 10V | 260mOhm @ 13A, 10V | 5.5V @ 250µA | 65 nC @ 10 V | ±30V | 3600 pF @ 25 V | - | 130W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | ISOPLUS220™ |
|
IXFV16N80PMOSFET N-CH 800V 16A PLUS220 |
5,379 | - |
|
Datasheet | HiPerFET™, Polar | TO-220-3, Short Tab | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 800 V | 16A (Tc) | 10V | 600mOhm @ 500mA, 10V | 5V @ 4mA | 71 nC @ 10 V | ±30V | 4600 pF @ 25 V | - | 460W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PLUS220 |
|

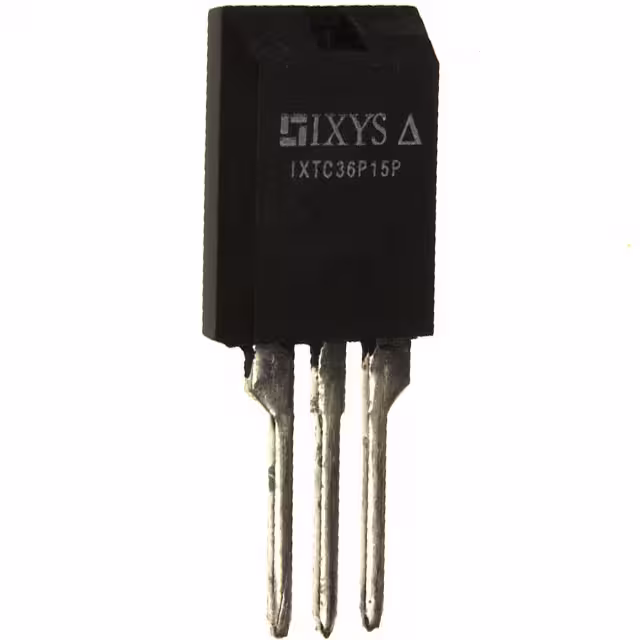

IXTC36P15PMOSFET P-CH 150V 22A ISOPLUS220 |
3,442 | - |
|
Datasheet | PolarP™ | ISOPLUS220™ | Tube | Obsolete | P-Channel | MOSFET (Metal Oxide) | 150 V | 22A (Tc) | 10V | 120mOhm @ 18A, 10V | 5V @ 250µA | 55 nC @ 10 V | ±20V | 2950 pF @ 25 V | - | 150W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | ISOPLUS220™ |
|
|
IXFC110N10PMOSFET N-CH 100V 60A ISOPLUS220 |
7,073 | - |
|
Datasheet | HiPerFET™, PolarHT™ | ISOPLUS220™ | Box | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 60A (Tc) | 10V | 17mOhm @ 55A, 10V | 5V @ 4mA | 110 nC @ 10 V | ±20V | 3550 pF @ 25 V | - | 120W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | ISOPLUS220™ |
FETs, MOSFETs FAQ
Common questions about filtering, comparing and sourcing FETs, MOSFETs components.
How can I narrow the FETs, MOSFETs selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific FETs, MOSFETs part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
