FETs, MOSFETs
Use the filters and product table below to compare FETs, MOSFETs components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IXFT24N50MOSFET N-CH 500V 24A TO268 |
7,771 | - |
|
Datasheet | HiPerFET™ | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 24A (Tc) | 10V | 230mOhm @ 12A, 10V | 4V @ 4mA | 160 nC @ 10 V | ±20V | 4200 pF @ 25 V | - | 300W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-268AA |
|

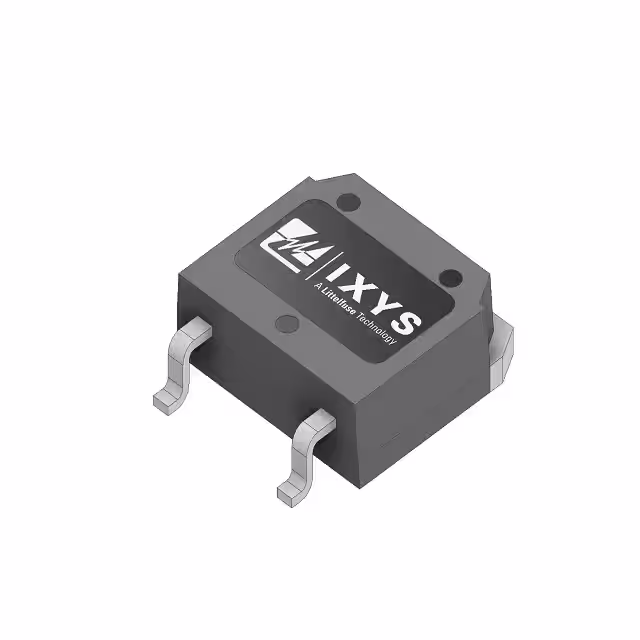

IXFT78N60X3HVMOSFET ULTRA 600V 78A TO268HV |
9,900 | - |
|
Datasheet | HiPerFET™, Ultra X3 | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 78A (Tc) | 10V | 38mOhm @ 39A, 10V | 5V @ 4mA | 70 nC @ 10 V | ±20V | 4700 pF @ 25 V | - | 780W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-268HV (IXFT) |
|
|
IXTT440N04T4HVMOSFET N-CH 40V 440A TO268 |
9,236 | - |
|
Datasheet | Trench | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 440A (Tc) | 10V | 1.25mOhm @ 100A, 10V | 4V @ 250µA | 480 nC @ 10 V | ±15V | 26000 pF @ 25 V | - | 940W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-268HV (IXTT) |
|
IXFH80N08MOSFET N-CH 80V 80A TO247AD |
9,859 | - |
|
Datasheet | HiPerFET™ | TO-247-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 80 V | 80A (Tc) | 10V | 9mOhm @ 40A, 10V | 4V @ 4mA | 180 nC @ 10 V | ±20V | 4800 pF @ 25 V | - | 300W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247AD (IXFH) |
|
|
IXFH60N20MOSFET N-CH 200V 60A TO247AD |
6,356 | - |
|
Datasheet | HiPerFET™ | TO-247-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 200 V | 60A (Tc) | 10V | 33mOhm @ 30A, 10V | 4V @ 4mA | 155 nC @ 10 V | ±20V | 5200 pF @ 25 V | - | 300W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247AD (IXFH) |
|
|
IXFH80N10MOSFET N-CH 100V 80A TO247AD |
2,336 | - |
|
Datasheet | HiPerFET™ | TO-247-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 80A (Tc) | 10V | 12.5mOhm @ 40A, 10V | 4V @ 4mA | 180 nC @ 10 V | ±20V | 4800 pF @ 25 V | - | 300W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247AD (IXFH) |
|
|
IXFH22N55MOSFET N-CH 550V 22A TO247AD |
2,834 | - |
|
Datasheet | HiPerFET™ | TO-247-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 550 V | 22A (Tc) | 10V | 270mOhm @ 11A, 10V | 4.5V @ 4mA | 170 nC @ 10 V | ±20V | 4200 pF @ 25 V | - | 300W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247AD (IXFH) |
|
IXTC75N10MOSFET N-CH 100V 72A ISOPLUS220 |
5,161 | - |
|
Datasheet | MegaMOS™ | ISOPLUS220™ | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 72A (Tc) | 10V | 20mOhm @ 37.5A, 10V | 4V @ 250µA | 260 nC @ 10 V | ±20V | 4500 pF @ 25 V | - | 230W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | ISOPLUS220™ |
|
IXTK128N15MOSFET N-CH 150V 128A TO264 |
8,246 | - |
|
Datasheet | MegaMOS™ | TO-264-3, TO-264AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 150 V | 128A (Tc) | 10V | 15mOhm @ 500mA, 10V | 4V @ 250µA | 240 nC @ 10 V | ±20V | 6000 pF @ 25 V | - | 540W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-264 (IXTK) |
|
|
IXTK80N25MOSFET N-CH 250V 80A TO264 |
8,384 | - |
|
Datasheet | MegaMOS™ | TO-264-3, TO-264AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 250 V | 80A (Tc) | 10V | 33mOhm @ 500mA, 10V | 4V @ 250µA | 240 nC @ 10 V | ±20V | 6000 pF @ 25 V | - | 540W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-264 (IXTK) |
FETs, MOSFETs FAQ
Common questions about filtering, comparing and sourcing FETs, MOSFETs components.
How can I narrow the FETs, MOSFETs selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific FETs, MOSFETs part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
