FETs, MOSFETs

Use the filters and product table below to compare FETs, MOSFETs components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.

If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.

Parametric Selection Filter options by technical parameters

Stock & Datasheets Review availability and technical references

RFQ & BOM Support Send your target MPN, quantity or BOM

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Package/Case	Packaging	Product Status	FET Type	Technology	Drain to Source Voltage (Vdss)	Current - Continuous Drain (Id) @ 25°C	Drive Voltage (Max Rds On, Min Rds On)	Rds On (Max) @ Id, Vgs	Vgs(th) (Max) @ Id	Gate Charge (Qg) (Max) @ Vgs	Vgs (Max)	Input Capacitance (Ciss) (Max) @ Vds	FET Feature	Power Dissipation (Max)	Operating Temperature	Grade	Qualification	Mounting Type	Supplier Device Package
IXTQ280N055T MOSFET N-CH 55V 280A TO3P IXYS	6,051	-	RFQ	Datasheet	TrenchMV™	TO-3P-3, SC-65-3	Tube	Obsolete	N-Channel	MOSFET (Metal Oxide)	55 V	280A (Tc)	10V	3.2mOhm @ 50A, 10V	4V @ 250µA	200 nC @ 10 V	±20V	9700 pF @ 25 V	-	550W (Tc)	-55°C ~ 175°C (TJ)	-	-	Through Hole	TO-3P
IXTT10P50 MOSFET P-CH 500V 10A TO268 IXYS	7,906	-	RFQ	Datasheet	-	TO-268-3, D3PAK (2 Leads + Tab), TO-268AA	Box	Active	P-Channel	MOSFET (Metal Oxide)	500 V	10A (Tc)	10V	900mOhm @ 5A, 10V	5V @ 250µA	160 nC @ 10 V	±20V	4700 pF @ 25 V	-	300W (Tc)	-55°C ~ 150°C (TJ)	-	-	Surface Mount	TO-268AA
IXTT20N50D MOSFET N-CH 500V 20A TO268 IXYS	3,380	-	RFQ	Datasheet	Depletion	TO-268-3, D3PAK (2 Leads + Tab), TO-268AA	Tube	Active	N-Channel, Depletion Mode	MOSFET (Metal Oxide)	500 V	20A (Tc)	10V	330mOhm @ 10A, 10V	3.5V @ 250mA	125 nC @ 10 V	±30V	2500 pF @ 25 V	-	400W (Tc)	-55°C ~ 150°C (TJ)	-	-	Surface Mount	TO-268AA
IXTU01N100D MOSFET N-CH 1000V 400MA TO251 IXYS	7,180	-	RFQ	Datasheet	Depletion	TO-251-3 Short Leads, IPAK, TO-251AA	Tube	Active	N-Channel, Depletion Mode	MOSFET (Metal Oxide)	1000 V	400mA (Tc)	0V	80Ohm @ 50mA, 0V	4.5V @ 25µA	5.8 nC @ 5 V	±20V	100 pF @ 25 V	-	1.1W (Ta), 25W (Tc)	-55°C ~ 150°C (TJ)	-	-	Through Hole	TO-251AA
IXTU64N055T MOSFET N-CH 55V 64A TO251 IXYS	7,760	-	RFQ	Datasheet	Trench	TO-251-3 Short Leads, IPAK, TO-251AA	Tube	Active	N-Channel	MOSFET (Metal Oxide)	55 V	64A (Tc)	-	-	4V @ 25µA	-	-	-	-	-	-	-	-	Through Hole	TO-251AA

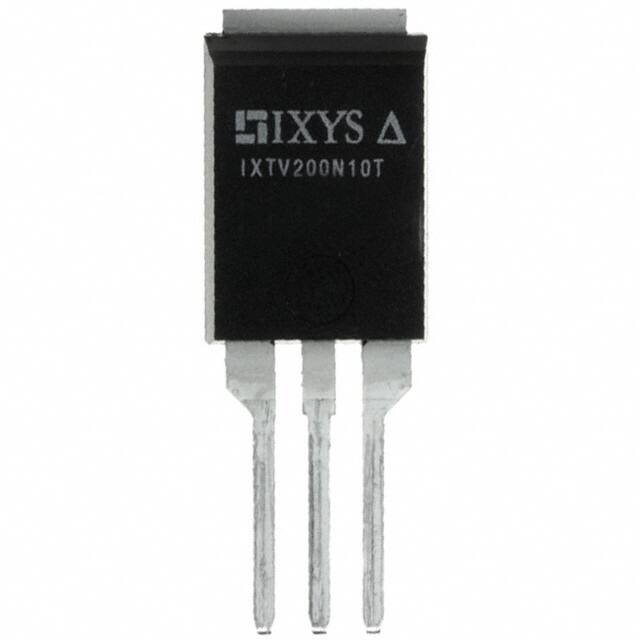

IXTV200N10T MOSFET N-CH 100V 200A PLUS220 IXYS	7,263	-	RFQ	Datasheet	TrenchMV™	TO-220-3, Short Tab	Tube	Obsolete	N-Channel	MOSFET (Metal Oxide)	100 V	200A (Tc)	10V	5.5mOhm @ 50A, 10V	4.5V @ 250µA	152 nC @ 10 V	±30V	9400 pF @ 25 V	-	550W (Tc)	-55°C ~ 175°C (TJ)	-	-	Through Hole	PLUS220

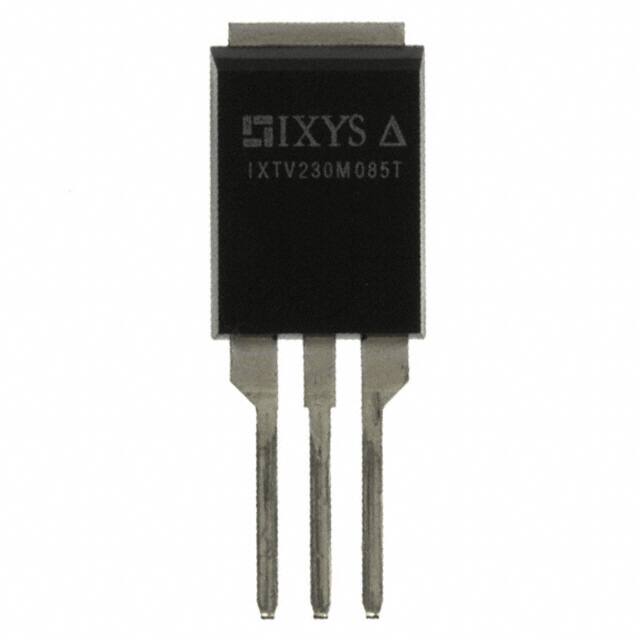

IXTV230N085T MOSFET N-CH 85V 230A PLUS220 IXYS	3,034	-	RFQ	Datasheet	TrenchMV™	TO-220-3, Short Tab	Tube	Obsolete	N-Channel	MOSFET (Metal Oxide)	85 V	230A (Tc)	10V	4.4mOhm @ 50A, 10V	4V @ 250µA	187 nC @ 10 V	±20V	9900 pF @ 25 V	-	550W (Tc)	-55°C ~ 175°C (TJ)	-	-	Through Hole	PLUS220
IXTY2N80P MOSFET N-CH 800V 2A TO252 IXYS	7,380	-	RFQ	Datasheet	PolarHV™	TO-252-3, DPAK (2 Leads + Tab), SC-63	Tube	Obsolete	N-Channel	MOSFET (Metal Oxide)	800 V	2A (Tc)	10V	6Ohm @ 1A, 10V	5.5V @ 50µA	10.6 nC @ 10 V	±30V	440 pF @ 25 V	-	70W (Tc)	-55°C ~ 150°C (TJ)	-	-	Surface Mount	TO-252AA
IXTY50N085T MOSFET N-CH 85V 50A TO252 IXYS	9,798	-	RFQ	Datasheet	TrenchMV™	TO-252-3, DPAK (2 Leads + Tab), SC-63	Tube	Obsolete	N-Channel	MOSFET (Metal Oxide)	85 V	50A (Tc)	10V	23mOhm @ 25A, 10V	4V @ 25µA	34 nC @ 10 V	±20V	1460 pF @ 25 V	-	130W (Tc)	-55°C ~ 175°C (TJ)	-	-	Surface Mount	TO-252AA
IXTY55N075T MOSFET N-CH 75V 55A TO252 IXYS	8,854	-	RFQ	Datasheet	TrenchMV™	TO-252-3, DPAK (2 Leads + Tab), SC-63	Tube	Obsolete	N-Channel	MOSFET (Metal Oxide)	75 V	55A (Tc)	10V	19.5mOhm @ 27.5A, 10V	4V @ 25µA	33 nC @ 10 V	±20V	1400 pF @ 25 V	-	130W (Tc)	-55°C ~ 175°C (TJ)	-	-	Surface Mount	TO-252AA

WINSUN SOURCING SUPPORT

Need Help Sourcing FETs, MOSFETs?

Send the target part number, manufacturer, specifications and quantity. Winsun (HK) Electronics can assist with availability checks, quotation support, shortage sourcing and alternative-part options when appropriate.

Availability and lead-time support BOM, shortage and alternative sourcing

Send part number & quantity Request a Quote

Need sourcing assistance? Contact Sales

FREQUENTLY ASKED QUESTIONS

FETs, MOSFETs FAQ

Common questions about filtering, comparing and sourcing FETs, MOSFETs components.

How can I narrow the FETs, MOSFETs selection?

Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.

Should I confirm the datasheet before selecting a part?

Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.

Can Winsun (HK) Electronics help source a specific FETs, MOSFETs part number?

Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.

Do you support BOM, shortage or alternative-part requirements?

Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
