Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

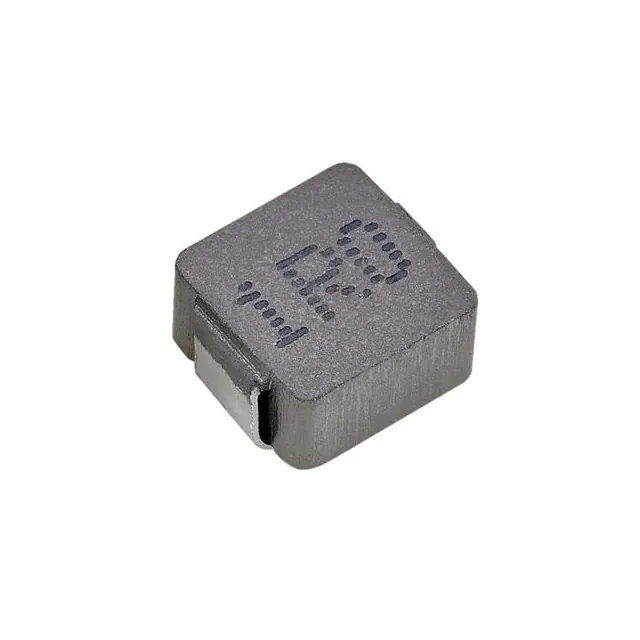

AIP0530GX-1R0MPBDGPOWER INDUCTOR 5.7X5.4X3 1.0UH 2 |
3,930 | - |
|
Datasheet | AIP0530GX | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 1 µH | ±20% | 10.5 A | 14A | Shielded | 8.5mOhm Max | - | 55MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.224" L x 0.213" W (5.70mm x 5.40mm) | 0.118" (3.00mm) |
|
|
AIP0530GX-3R3MPBDGPOWER INDUCTOR 5.7X5.4X3 3.3UH 2 |
3,790 | - |
|
Datasheet | AIP0530GX | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 3.3 µH | ±20% | 7.7 A | 8.7A | Shielded | 23mOhm Max | - | 28MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.224" L x 0.213" W (5.70mm x 5.40mm) | 0.118" (3.00mm) |
|
|
AIP0630GX-3R3MPBDGPOWER INDUCTOR 7.7X6.5X3 3.3UH 2 |
1,933 | - |
|
Datasheet | AIP0630GX | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 3.3 µH | ±20% | 8 A | 11A | Shielded | 19.2mOhm Max | - | 25MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.283" L x 0.256" W (7.20mm x 6.50mm) | 0.118" (3.00mm) |
|
|
AIP0630GX-2R2MPBDGPOWER INDUCTOR 7.7X6.5X3 2.2UH 2 |
1,880 | - |
|
Datasheet | AIP0630GX | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 2.2 µH | ±20% | 9.9 A | 14.3A | Shielded | 13.1mOhm Max | - | 32MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.283" L x 0.256" W (7.20mm x 6.50mm) | 0.118" (3.00mm) |
|
|
AIP0630GX-1R0MPBDGPOWER INDUCTOR 7.7X6.5X3 1.0UH 2 |
1,754 | - |
|
Datasheet | AIP0630GX | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 1 µH | ±20% | 17.1 A | 20.7A | Shielded | 5.95mOhm Max | - | 48MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.283" L x 0.256" W (7.20mm x 6.50mm) | 0.118" (3.00mm) |
|
|
AIP0630GX-4R7MPBDGPOWER INDUCTOR 7.7X6.5X3 4.7UH 2 |
1,288 | - |
|
Datasheet | AIP0630GX | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 4.7 µH | ±20% | 6.7 A | 11.3A | Shielded | 29.3mOhm Max | - | 21MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.283" L x 0.256" W (7.20mm x 6.50mm) | 0.118" (3.00mm) |
|
|
AIP0530GX-4R7MPBDGPOWER INDUCTOR 5.7X5.3X3 4.7UH 2 |
992 | - |
|
Datasheet | AIP0530GX | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 4.7 µH | ±20% | 5.6 A | 6.8A | Shielded | 35.5mOhm Max | - | 21MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.224" L x 0.213" W (5.70mm x 5.40mm) | 0.118" (3.00mm) |
|
MCI1608HQ2N2SHBPR5MCI-HQ,1608,2.2NH,0.3,DCR0.10,30 |
1,000 | - |
|
Datasheet | MCI HQ | 0603 (1608 Metric) | Active | Multilayer | Ceramic | 2.2 nH | ±0.3nH | 1 A | - | Unshielded | 100mOhm Max | 8 @ 100MHz | 8GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
