Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PL9232NLTFIXED IND 1MH 400MA 2.85 OHM SMD |
3,013 | - |
|
Datasheet | PL92XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 1 mH | ±20% | 400 mA | 410mA | Shielded | 2.85Ohm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.201" (5.10mm) |
|
PL9101TFIXED IND 1UH 10.5A 4.5 MOHM SMD |
2,038 | - |
|
Datasheet | PL91XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 1 µH | ±30% | 10.5 A | 12.7A | Shielded | 4.5mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.248" (6.30mm) |
|
PL9102TFIXED IND 1.8UH 9.5A 5.5MOHM SMD |
1,532 | - |
|
Datasheet | PL91XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 1.8 µH | ±30% | 9.5 A | 10.1A | Shielded | 5.5mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.248" (6.30mm) |
|
PL9105TFIXED IND 5.1UH 5.6A 15.6MOHM SM |
4,549 | - |
|
Datasheet | PL91XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 5.1 µH | ±30% | 5.6 A | 6.3A | Shielded | 15.6mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.248" (6.30mm) |
|
PL9106TFIXED IND 6.8UH 5.2A 18 MOHM SMD |
1,147 | - |
|
Datasheet | PL91XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 6.8 µH | ±30% | 5.2 A | 5.6A | Shielded | 18mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.248" (6.30mm) |
|
PL9119TFIXED IND 82UH 1.7A 178 MOHM SMD |
3,091 | - |
|
Datasheet | PL91XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 82 µH | ±20% | 1.7 A | 1.7A | Shielded | 178mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.248" (6.30mm) |
|
PL9122TFIXED IND 150UH 1.2A 280MOHM SMD |
3,015 | - |
|
Datasheet | PL91XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 150 µH | ±20% | 1.2 A | 1.2A | Shielded | 280mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.248" (6.30mm) |
|
PL9123TFIXED IND 180UH 1.1A 310MOHM SMD |
4,802 | - |
|
Datasheet | PL91XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 180 µH | ±20% | 1.1 A | 1.1A | Shielded | 310mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.248" (6.30mm) |
|

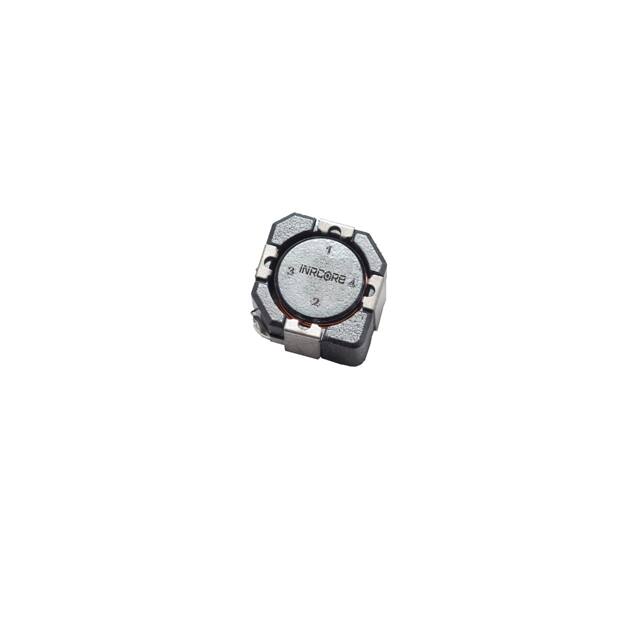

PL9128TFIXED IND 470UH 680MA 850MOHM SM |
1,964 | - |
|
Datasheet | PL91XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 470 µH | ±20% | 680 mA | 680mA | Shielded | 850mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.248" (6.30mm) |
|
PL9129TFIXED IND 560UH 630MA 1.06OHM SM |
2,417 | - |
|
Datasheet | PL91XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 560 µH | ±20% | 630 mA | 630mA | Shielded | 1.06Ohm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.248" (6.30mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
