Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PL8102NLFIXED IND 22.7UH 1A 125 MOHM SMD |
3,128 | - |
|
Datasheet | SLED | Nonstandard | Tube | Active | Toroidal | - | 22.7 µH | - | 1 A | - | Unshielded | 125mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.400" L x 0.345" W (10.16mm x 8.76mm) | 0.250" (6.35mm) |
|
|
PL9501NLTFIXED IND 2.5UH 2.6A 17.6MOHM SM |
4,831 | - |
|
Datasheet | PL95XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 2.5 µH | ±30% | 2.6 A | 2.6A | Shielded | 17.6mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.256" L x 0.256" W (6.50mm x 6.50mm) | 0.122" (3.10mm) |
|
PL9501TFIXED IND 2.5UH 2.6A 17.6MOHM SM |
1,138 | - |
|
Datasheet | PL95XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 2.5 µH | ±30% | 2.6 A | 2.6A | Shielded | 17.6mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.256" L x 0.256" W (6.50mm x 6.50mm) | 0.122" (3.10mm) |
|
|
PL9509NLTFIXED IND 15UH 1.1A 82 MOHM SMD |
2,197 | - |
|
Datasheet | PL95XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 15 µH | ±20% | 1.1 A | 1.1A | Shielded | 82mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.256" L x 0.256" W (6.50mm x 6.50mm) | 0.122" (3.10mm) |
|

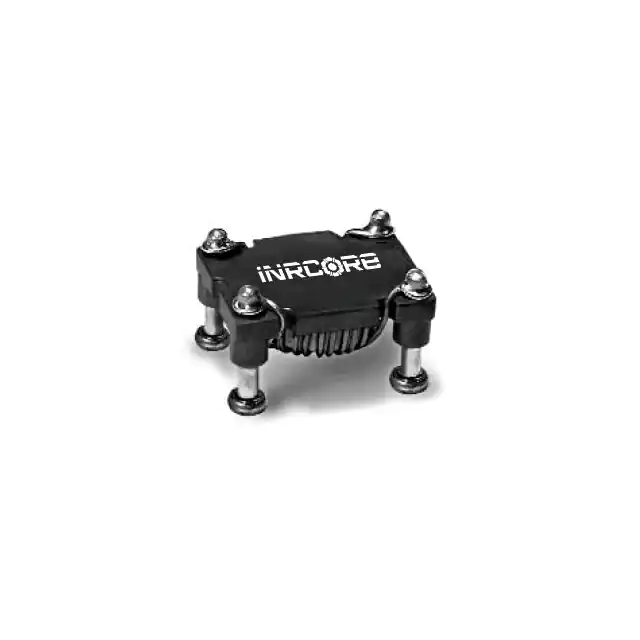

PL8110TFIXED IND 5.2UH 4.8A 17.3MOHM SM |
1,957 | - |
|
Datasheet | SLED | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 5.2 µH | - | 4.8 A | - | Unshielded | 17.3mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.625" L x 0.525" W (15.88mm x 13.34mm) | 0.400" (10.16mm) |
|
|
PL9503NLTFIXED IND 4UH 2.1A 27 MOHM SMD |
2,184 | - |
|
Datasheet | PL95XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 4 µH | ±30% | 2.1 A | 2.1A | Shielded | 27mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.256" L x 0.256" W (6.50mm x 6.50mm) | 0.122" (3.10mm) |
|
PL9505TFIXED IND 6UH 1.7A 41.9 MOHM SMD |
2,345 | - |
|
Datasheet | PL95XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 6 µH | ±30% | 1.7 A | 1.7A | Shielded | 41.9mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.256" L x 0.256" W (6.50mm x 6.50mm) | 0.122" (3.10mm) |
|
|
PL9508NLTFIXED IND 12UH 1.2A 72 MOHM SMD |
4,171 | - |
|
Datasheet | PL95XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 12 µH | ±20% | 1.2 A | 1.2A | Shielded | 72mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.256" L x 0.256" W (6.50mm x 6.50mm) | 0.122" (3.10mm) |
|
|
PL9515NLTFIXED IND 47UH 600MA 230MOHM SMD |
4,823 | - |
|
Datasheet | PL95XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 47 µH | ±20% | 600 mA | 600mA | Shielded | 230mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.256" L x 0.256" W (6.50mm x 6.50mm) | 0.122" (3.10mm) |
|
|
PL9516NLTFIXED IND 56UH 550MA 305MOHM SMD |
2,600 | - |
|
Datasheet | PL95XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 56 µH | ±20% | 550 mA | 550mA | Shielded | 305mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.256" L x 0.256" W (6.50mm x 6.50mm) | 0.122" (3.10mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
