Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PFC212236A-471K470uH, 10%, 54.5mOhm, 26.3Amp Ma |
1,332 | - |
|
Datasheet | PFC212236A | Radical, Vertical, 4 Leads (Open) | Tray | Active | Toroidal | Alloy | 470 µH | ±10% | 13.4 A | 26.3A | Shielded | 54.5mOhm | - | - | - | -55°C ~ 130°C | - | - | Through Hole | - | - | 2.370" (60.20mm) |
|
|
PFC212236A-681K680uH, 10%, 74.0mOhm, 21.9Amp Ma |
1,020 | - |
|
Datasheet | PFC212236A | Radical, Vertical, 4 Leads (Open) | Tray | Active | Toroidal | Alloy | 680 µH | ±10% | 11.2 A | 21.9A | Shielded | 74mOhm | - | - | - | -55°C ~ 130°C | - | - | Through Hole | - | - | 2.370" (60.20mm) |
|
|
PFC282820B-900MHFPFC CHOKE 90.0UH, 28.0A, 12.5 M |
1,023 | - |
|
Datasheet | - | Radial, Horizontal, 4 Leads | Bulk | Active | Wirewound | Alloy Powder | 90 µH | ±20% | 15.5 A | 14.4A | Unshielded | 12.5mOhm | - | - | - | -55°C ~ 150°C | 100 kHz | - | Through Hole | Radial | 1.083" L x 0.787" W (27.50mm x 20.00mm) | 1.102" (28.00mm) |
|
|
PFC282820B-330MHFPFC CHOKE 33.0UH, 46.0A, 4.5 M |
4,756 | - |
|
Datasheet | - | Radial, Horizontal, 4 Leads | Bulk | Active | Wirewound | Alloy Powder | 33 µH | ±20% | 26 A | 23.7A | Unshielded | 4.5mOhm | - | - | - | -55°C ~ 150°C | 100 kHz | - | Through Hole | Radial | 1.083" L x 0.787" W (27.50mm x 20.00mm) | 1.102" (28.00mm) |
|
|
PFC282820B-161MHFPFC CHOKE 165.0UH, 20.8A, 22.3M |
3,714 | - |
|
Datasheet | - | Radial, Horizontal, 4 Leads | Bulk | Active | Wirewound | Alloy Powder | 165 µH | ±20% | 11.7 A | 10.7A | Unshielded | 22.3mOhm | - | - | - | -55°C ~ 150°C | 100 kHz | - | Through Hole | Radial | 1.083" L x 0.787" W (27.50mm x 20.00mm) | 1.102" (28.00mm) |
|
|
PFC282820B-121MHFPFC CHOKE 125.0UH, 23.8A, 16.7M |
3,301 | - |
|
Datasheet | - | Radial, Horizontal, 4 Leads | Bulk | Active | Wirewound | Alloy Powder | 125 µH | ±20% | 13.5 A | 12.3A | Unshielded | 16.7mOhm | - | - | - | -55°C ~ 150°C | 100 kHz | - | Through Hole | Radial | 1.083" L x 0.787" W (27.50mm x 20.00mm) | 1.102" (28.00mm) |
|
|
PFC282820B-221MHFPFC CHOKE 220.0UH, 17.9A, 31.0M |
4,364 | - |
|
Datasheet | - | Radial, Horizontal, 4 Leads | Bulk | Active | Wirewound | Alloy Powder | 220 µH | ±20% | 10 A | 9.2A | Unshielded | 31mOhm | - | - | - | -55°C ~ 150°C | 100 kHz | - | Through Hole | Radial | 1.083" L x 0.787" W (27.50mm x 20.00mm) | 1.102" (28.00mm) |
|

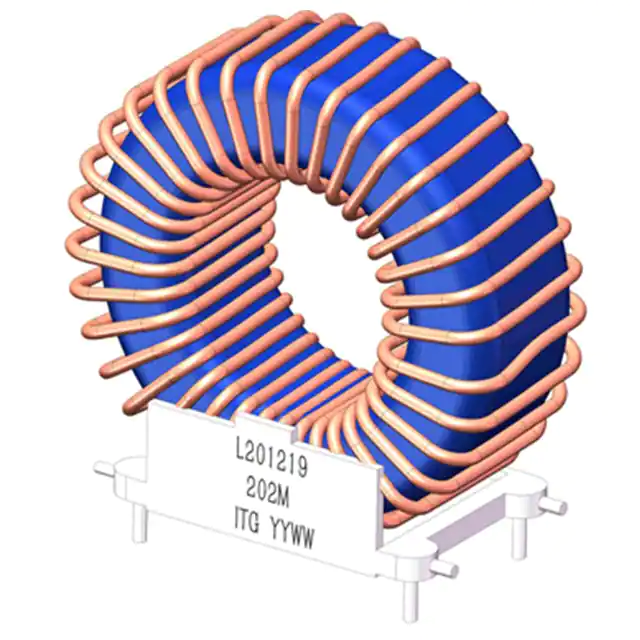

L201219-831MHF836.7uH, 20%, 80 mOhm DCR, 5.2A |
2,918 | - |
|
Datasheet | L201219 | Radial, Vertical Cylinder, 4 Leads (Open) | Bulk | Active | Toroidal | Alloy Powder | 836.7 µH | ±20% | 5.2 A | 3.3A | Unshielded | 80mOhm Max | - | - | - | -55°C ~ 130°C | 10 kHz | - | Through Hole | - | 1.319" L x 0.787" W (33.50mm x 20.00mm) | 1.457" (37.00mm) |
|
|
PFC282822B-171MHFPFC CHOKE 175.0UH, 20.4A, 23.8M |
4,498 | - |
|
Datasheet | - | Radial, Horizontal, 4 Leads | Bulk | Active | Wirewound | Alloy Powder | 175 µH | ±20% | 11 A | 10.5A | Unshielded | 23.8mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Through Hole | Radial | 1.083" L x 0.846" W (27.50mm x 21.50mm) | 1.102" (28.00mm) |
|
|
PFC282822B-381MHFPFC CHOKE 380.0UH, 14.0A, 56.3M |
4,738 | - |
|
Datasheet | - | Radial, Horizontal, 4 Leads | Bulk | Active | Wirewound | Alloy Powder | 380 µH | ±20% | 7 A | 7.2A | Unshielded | 56.3mOhm | - | - | - | -55°C ~ 150°C | 100 kHz | - | Through Hole | Radial | 1.083" L x 0.846" W (27.50mm x 21.50mm) | 1.102" (28.00mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
