Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

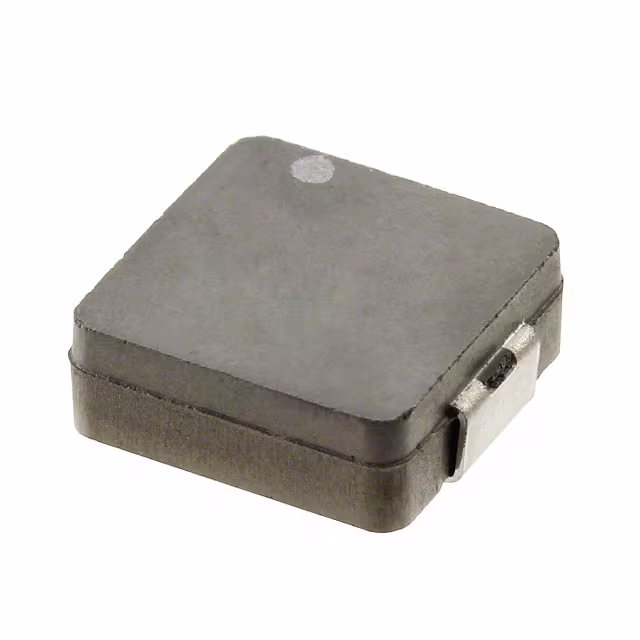

MPLC1040L1R5FIXED IND 1.5UH 12.4A 7 MOHM SMD |
3,932 | - |
|
Datasheet | MPLC | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Wirewound | - | 1.5 µH | ±20% | 12.4 A | 12.7A | Shielded | 7mOhm Max | - | - | - | -20°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
MPX1D1250L680FIXED IND 68UH 3.6A 163 MOHM SMD |
198 | - |
|
Datasheet | METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 68 µH | ±20% | 3.6 A | 4.5A | Shielded | 163mOhm Max | - | 3MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.492" W (13.20mm x 12.50mm) | 0.197" (5.00mm) |
|

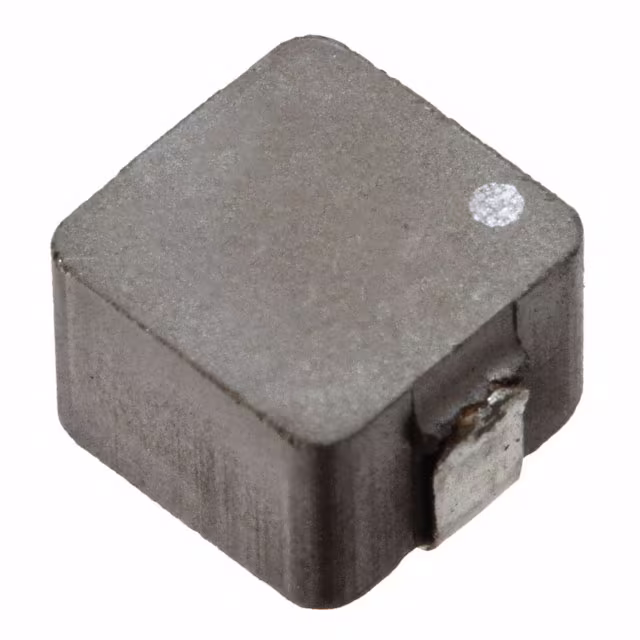

MPC0750LR60CFIXED IND 600NH 17A 2.3 MOHM SMD |
2,370 | - |
|
Datasheet | MPC | 2-SMD, J-Lead | Tape & Reel (TR) | Active | - | Ferrite | 600 nH | ±20% | 17 A | 19A | Shielded | 2.3mOhm Max | - | - | - | -20°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.264" W (8.00mm x 6.70mm) | 0.197" (5.00mm) |
|
|
MPX1D1250L1R0FIXED IND 1UH 28.8A 2.6 MOHM SMD |
497 | - |
|
Datasheet | METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 1 µH | ±20% | 28.8 A | 43A | Shielded | 2.6mOhm Max | - | 34MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.492" W (13.20mm x 12.50mm) | 0.197" (5.00mm) |
|

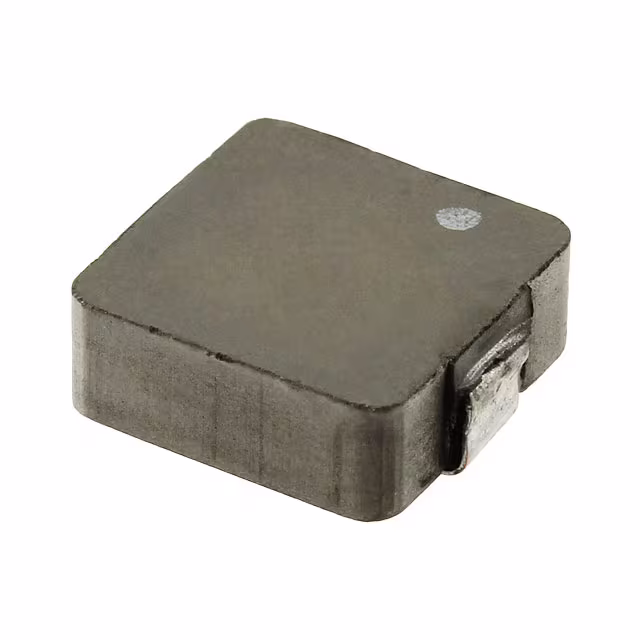

MPC1040LR88CFIXED IND 880NH 17A 2.3 MOHM SMD |
2,790 | - |
|
Datasheet | MPC | 2-SMD, J-Lead | Tape & Reel (TR) | Active | - | Ferrite | 880 nH | ±20% | 17 A | 24A | Shielded | 2.3mOhm Max | - | - | - | -20°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
|
MPX1D1250L2R2FIXED IND 2.2UH 21A 4.8 MOHM SMD |
483 | - |
|
Datasheet | METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 2.2 µH | ±20% | 21 A | 28.5A | Shielded | 4.8mOhm Max | - | 21MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.492" W (13.20mm x 12.50mm) | 0.197" (5.00mm) |
|
SBCP-11HY101HFIXED IND 100UH 1.3A 190 MOHM TH |
643 | - |
|
Datasheet | SBCP | Radial, Vertical Cylinder | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 1.3 A | 3A | Unshielded | 190mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.492" Dia (12.50mm) | 0.472" (12.00mm) |
|
MPXV1D1250L2R2FIXED IND 2.2UH 21A 4.8MOHM SMD |
500 | - |
|
Datasheet | METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 2.2 µH | ±20% | 21 A | 28.5A | Shielded | 4.8mOhm Max | - | 21MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.492" W (13.20mm x 12.50mm) | 0.197" (5.00mm) |
|
|
MPXV1D1250L4R7FIXED IND 4.7UH 14.4A 10.1 MOHM |
500 | - |
|
Datasheet | METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 4.7 µH | ±20% | 14.4 A | 17.5A | Shielded | 10.1mOhm Max | - | 13MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.492" W (13.20mm x 12.50mm) | 0.197" (5.00mm) |
|
|
MPXV1D1250L6R8FIXED IND 6.8UH 11.6A 15.5 MOHM |
492 | - |
|
Datasheet | METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 6.8 µH | ±20% | 11.6 A | 14A | Shielded | 15.5mOhm Max | - | 10MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.492" W (13.20mm x 12.50mm) | 0.197" (5.00mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
