Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MPX1D0840L220FIXED IND 22UH 4.2A 98.3MOHM SMD |
1,742 | - |
|
Datasheet | METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 22 µH | ±20% | 4.2 A | 5.5A | Shielded | 98.3mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.341" L x 0.315" W (8.65mm x 8.00mm) | 0.157" (4.00mm) |
|
|
MPX1D0840L100FIXED IND 10UH 6A 49.6 MOHM SMD |
970 | - |
|
Datasheet | METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 10 µH | ±20% | 6 A | 7.5A | Shielded | 49.6mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.341" L x 0.315" W (8.65mm x 8.00mm) | 0.157" (4.00mm) |
|
|
MPX1D0840L3R3FIXED IND 3.3UH 11.3A 14MOHM SMD |
1,725 | - |
|
Datasheet | METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 3.3 µH | ±20% | 11.3 A | 15A | Shielded | 14mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.341" L x 0.315" W (8.65mm x 8.00mm) | 0.157" (4.00mm) |
|

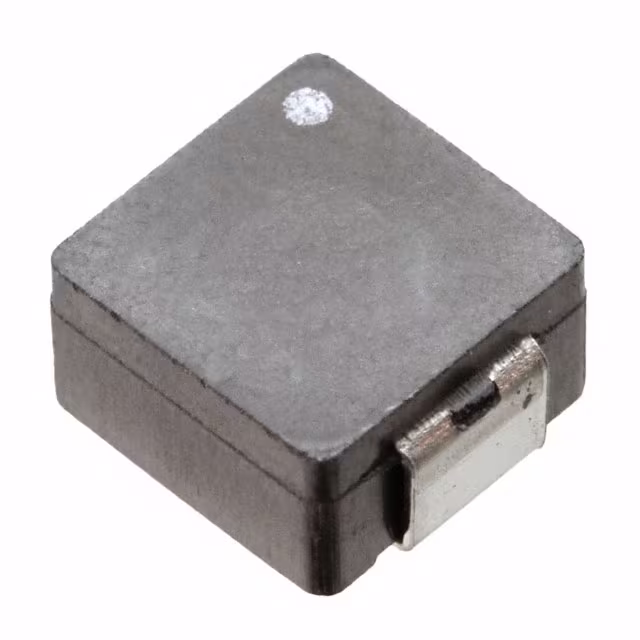

MPLCH0740L3R3FIXED IND 3.3UH 7.8A 19 MOHM SMD |
4,815 | - |
|
Datasheet | MPLCH | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 3.3 µH | ±20% | 7.8 A | 7A | Shielded | 19mOhm Max | - | - | - | -20°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.264" W (7.80mm x 6.70mm) | 0.157" (4.00mm) |
|
MPXV1D0830L100FIXED IND 10UH 5.4A 61.7MOHM SMD |
2,841 | - |
|
Datasheet | METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 10 µH | ±20% | 5.4 A | 8A | Shielded | 61.7mOhm Max | - | 12MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.341" L x 0.315" W (8.65mm x 8.00mm) | 0.118" (3.00mm) |
|
|
MPXV1D0840L330FIXED IND 33UH 3.4A 154.2MOHM SM |
1,810 | - |
|
Datasheet | METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 33 µH | ±20% | 3.4 A | 4.5A | Shielded | 154.2mOhm Max | - | 6.2MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.341" L x 0.315" W (8.65mm x 8.00mm) | 0.157" (4.00mm) |
|
|
MPXV1D0840L100FIXED IND 10UH 6A 49.6 MOHM SMD |
1,408 | - |
|
Datasheet | METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 10 µH | ±20% | 6 A | 7.5A | Shielded | 49.6mOhm Max | - | 12MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.341" L x 0.315" W (8.65mm x 8.00mm) | 0.157" (4.00mm) |
|
MPX1D0530L150FIXED IND 15UH 2.5A 214.6MOHM SM |
660 | - |
|
Datasheet | METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 15 µH | ±20% | 2.5 A | 3A | Shielded | 214.6mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.197" W (5.30mm x 5.00mm) | 0.118" (3.00mm) |
|
SBC6-331-871FIXED IND 330UH 870MA 410MOHM TH |
937 | - |
|
Datasheet | SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 870 mA | 1.9A | Unshielded | 410mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.472" Dia (12.00mm) | 0.591" (15.00mm) |
|
|
SBC6-4R7-802FIXED IND 4.7UH 8A 10 MOHM TH |
644 | - |
|
Datasheet | SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 8 A | 16.1A | Unshielded | 10mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.472" Dia (12.00mm) | 0.591" (15.00mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
