Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SH50S-1.4-176FIXED IND 176UH 1.4A 140MOHM SMD |
1,422 | - |
|
Datasheet | SH50 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Iron Powder | 176 µH | ±20% | 1.4 A | - | Unshielded | 140mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.957" L x 0.925" W (24.30mm x 23.50mm) | 0.411" (10.45mm) |
|
|
SH50S-1.4-220FIXED IND 220UH 1.4A 380MOHM SMD |
546 | - |
|
Datasheet | SH50 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Iron Powder | 220 µH | ±20% | 1.4 A | - | Unshielded | 380mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.701" L x 0.669" W (17.80mm x 17.00mm) | 0.451" (11.45mm) |
|
SH150T-0.68-377FIXED IND 377UH 680MA 1 OHM TH |
230 | - |
|
Datasheet | SH150 | Radial, Horizontal - Corner Terminals | Tray | Active | Toroidal | Iron Powder | 377 µH | ±20% | 680 mA | - | Unshielded | 1Ohm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.614" L x 0.591" W (15.60mm x 15.00mm) | 0.358" (9.10mm) |
|

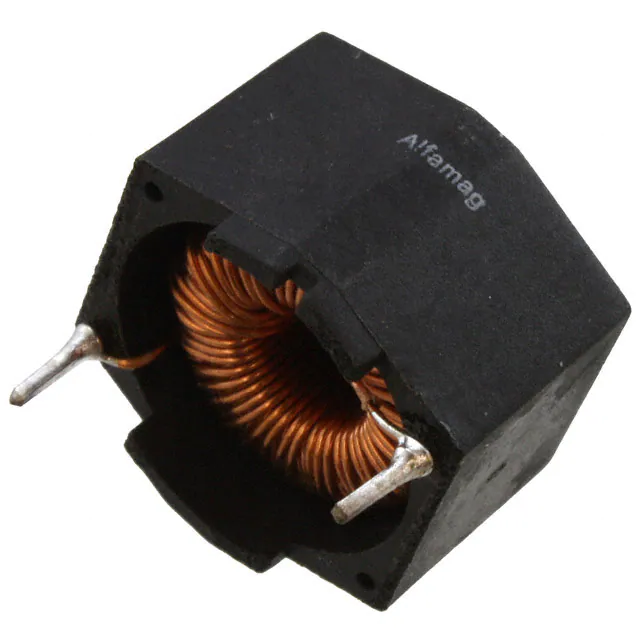

SH50F-1.4-220FIXED IND 220UH 1.4A 380 MOHM TH |
1,857 | - |
|
Datasheet | SH50 | Radial, Vertical Cylinder, 4 Leads | Tray | Active | Toroidal | Iron Powder | 220 µH | ±20% | 1.4 A | - | Unshielded | 380mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.669" Dia (17.00mm) | 0.492" (12.50mm) |
|
SH50C-2.0-470FIXED IND 470UH 2A 170 MOHM TH |
36,038 | - |
|
Datasheet | SH50 | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 470 µH | ±20% | 2 A | - | Unshielded | 170mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 1.252" L x 0.701" W (31.80mm x 17.81mm) | 1.382" (35.10mm) |
|
SH150C-2.22-114FIXED IND 114UH 2.22A 100MOHM TH |
3,838 | - |
|
Datasheet | SH150 | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 114 µH | ±20% | 2.22 A | - | Unshielded | 100mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.827" L x 0.449" W (21.00mm x 11.40mm) | 0.937" (23.80mm) |
|
SH150C-3.00-110FIXED IND 110UH 3A 90 MOHM TH |
384 | - |
|
Datasheet | SH150 | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 110 µH | ±20% | 3 A | - | Unshielded | 90mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.949" L x 0.598" W (24.10mm x 15.20mm) | 1.059" (26.90mm) |
|
|
SH50S-2.0-150FIXED IND 150UH 2A 100 MOHM SMD |
471 | - |
|
Datasheet | SH50 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Iron Powder | 150 µH | ±20% | 2 A | - | Unshielded | 100mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.957" L x 0.925" W (24.30mm x 23.50mm) | 0.411" (10.45mm) |
|
SH150S-0.83-248FIXED IND 248UH 830MA 600MOHM SM |
279 | - |
|
Datasheet | SH150 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Iron Powder | 248 µH | ±20% | 830 mA | - | Unshielded | 600mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.614" L x 0.591" W (15.60mm x 15.00mm) | 0.388" (9.85mm) |
|

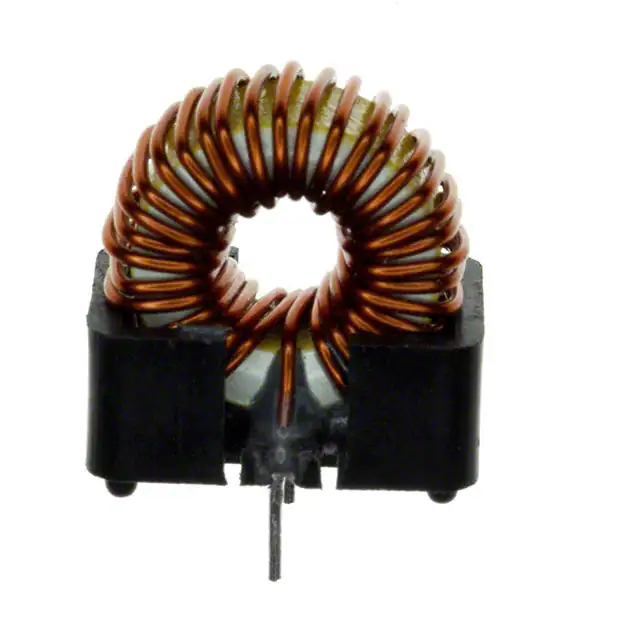

SH50C-3.0-47FIXED IND 47UH 3A 50 MOHM TH |
614 | - |
|
Datasheet | SH50 | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 47 µH | ±20% | 3 A | - | Unshielded | 50mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.650" L x 0.449" W (16.50mm x 11.40mm) | 0.760" (19.30mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
