Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

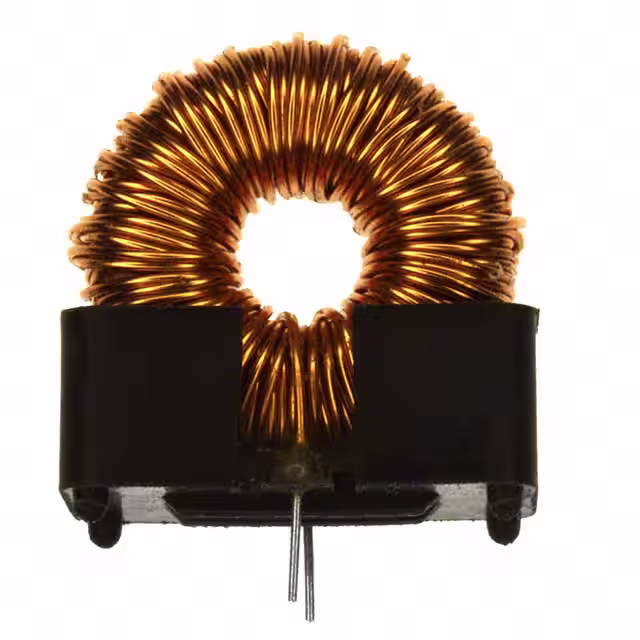

SH150C-1.5-250FIXED IND 250UH 1.5A 230 MOHM TH |
3,724 | - |
|
Datasheet | SH150 | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 250 µH | ±20% | 1.5 A | - | Unshielded | 230mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.827" L x 0.449" W (21.00mm x 11.40mm) | 0.937" (23.80mm) |
|
SWS-3.00-38FIXED IND 38UH 3A 50 MOHM SMD |
4,268 | - |
|
Datasheet | SW | Nonstandard | Tape & Reel (TR) | Obsolete | Toroidal | Iron Powder | 38 µH | ±20% | 3 A | - | Unshielded | 50mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.925" L x 0.925" W (23.50mm x 23.50mm) | 0.506" (12.85mm) |
|
SWS-3.00-77FIXED IND 77UH 3A 80 MOHM SMD |
1,249 | - |
|
Datasheet | SW | Nonstandard | Tape & Reel (TR) | Obsolete | Toroidal | Iron Powder | 77 µH | ±20% | 3 A | - | Unshielded | 80mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.925" L x 0.925" W (23.50mm x 23.50mm) | 0.506" (12.85mm) |
|
|
SWS-2.70-77FIXED IND 77UH 2.7A 90 MOHM SMD |
2,692 | - |
|
Datasheet | SW | Nonstandard | Tape & Reel (TR) | Obsolete | Toroidal | Iron Powder | 77 µH | ±20% | 2.7 A | - | Unshielded | 90mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.925" L x 0.925" W (23.50mm x 23.50mm) | 0.506" (12.85mm) |
|
|
SWS-3.00-53FIXED IND 53UH 3A 80 MOHM SMD |
1,922 | - |
|
Datasheet | SW | Nonstandard | Tape & Reel (TR) | Obsolete | Toroidal | Iron Powder | 53 µH | ±20% | 3 A | - | Unshielded | 80mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.925" L x 0.925" W (23.50mm x 23.50mm) | 0.506" (12.85mm) |
|

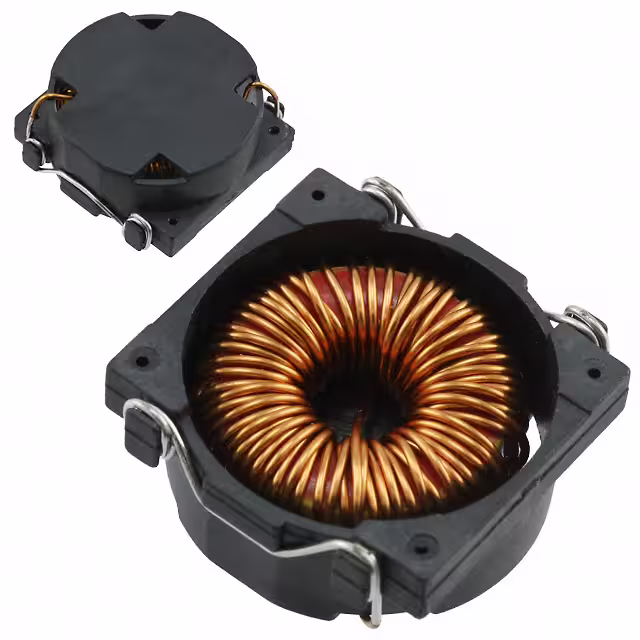

SH150S-2.70-77FIXED IND 77UH 2.7A 90 MOHM SMD |
4,533 | - |
|
Datasheet | SH150 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Iron Powder | 77 µH | ±20% | 2.7 A | - | Unshielded | 90mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.957" L x 0.925" W (24.30mm x 23.50mm) | 0.427" (10.85mm) |
|
SH260T-4.3-10FIXED IND 10UH 4.3A 26 MOHM TH |
3,673 | - |
|
Datasheet | SH260 | Radial, Horizontal - Corner Terminals | Tray | Active | Toroidal | Iron Powder | 10 µH | ±20% | 4.3 A | - | Unshielded | 26mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.614" L x 0.591" W (15.60mm x 15.00mm) | 0.358" (9.10mm) |
|
|
SWS-1.50-250FIXED IND 250UH 1.5A 230MOHM SMD |
3,805 | - |
|
Datasheet | SW | Nonstandard | Tape & Reel (TR) | Obsolete | Toroidal | Iron Powder | 250 µH | ±20% | 1.5 A | - | Unshielded | 230mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.925" L x 0.925" W (23.50mm x 23.50mm) | 0.506" (12.85mm) |
|
SH150S-1.50-250FIXED IND 250UH 1.5A 230MOHM SMD |
3,008 | - |
|
Datasheet | SH150 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Iron Powder | 250 µH | ±20% | 1.5 A | - | Unshielded | 230mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.957" L x 0.925" W (24.30mm x 23.50mm) | 0.427" (10.85mm) |
|
SWS-1.20-38FIXED IND 38UH 1.2A 100 MOHM SMD |
3,564 | - |
|
Datasheet | SW | Nonstandard | Tape & Reel (TR) | Obsolete | Toroidal | Iron Powder | 38 µH | ±20% | 1.2 A | - | Unshielded | 100mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.504" L x 0.504" W (12.80mm x 12.80mm) | 0.285" (7.25mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
