Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SWT-0.46-78FIXED IND 78UH 460MA 800 MOHM TH |
4,240 | - |
|
Datasheet | SW | Radial, Horizontal (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 78 µH | ±20% | 460 mA | - | Unshielded | 800mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.339" L x 0.339" W (8.60mm x 8.60mm) | 0.217" (5.50mm) |
|
SWT-0.56-55FIXED IND 55UH 560MA 500 MOHM TH |
3,821 | - |
|
Datasheet | SW | Radial, Horizontal (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 55 µH | ±20% | 560 mA | - | Unshielded | 500mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.339" L x 0.339" W (8.60mm x 8.60mm) | 0.287" (7.30mm) |
|

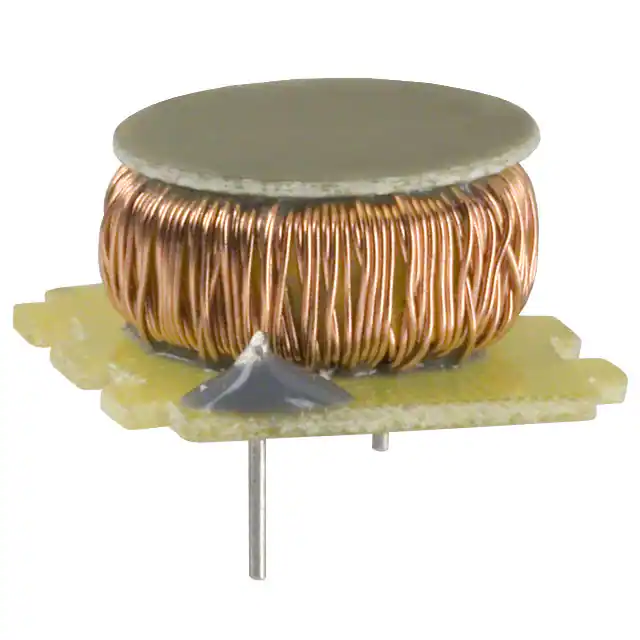

SWT-0.68-39FIXED IND 39UH 680MA 300 MOHM TH |
1,383 | - |
|
Datasheet | SW | Radial, Horizontal (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 39 µH | ±20% | 680 mA | - | Unshielded | 300mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.339" L x 0.339" W (8.60mm x 8.60mm) | 0.287" (7.30mm) |
|
|
SWT-0.84-26FIXED IND 26UH 840MA 200 MOHM TH |
2,454 | - |
|
Datasheet | SW | Radial, Horizontal (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 26 µH | ±20% | 840 mA | - | Unshielded | 200mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.339" L x 0.339" W (8.60mm x 8.60mm) | 0.287" (7.30mm) |
|
|
SWT-1.02-17FIXED IND 17UH 1.02A 100 MOHM TH |
3,120 | - |
|
Datasheet | SW | Radial, Horizontal (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 17 µH | ±20% | 1.02 A | - | Unshielded | 100mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.339" L x 0.339" W (8.60mm x 8.60mm) | 0.287" (7.30mm) |
|
SH50T-1.4-220FIXED IND 220UH 1.4A 380 MOHM TH |
4,197 | - |
|
Datasheet | SH50 | Radial, Horizontal - Corner Terminals | Tray | Obsolete | Toroidal | Iron Powder | 220 µH | ±20% | 1.4 A | - | Unshielded | 380mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.689" L x 0.669" W (17.50mm x 17.00mm) | 0.492" (12.50mm) |
|
|
SH50T-0.9-330FIXED IND 330UH 900MA 740MOHM TH |
2,183 | - |
|
Datasheet | SH50 | Radial, Horizontal - Corner Terminals | Tray | Obsolete | Toroidal | Iron Powder | 330 µH | ±20% | 900 mA | - | Unshielded | 740mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.689" L x 0.669" W (17.50mm x 17.00mm) | 0.492" (12.50mm) |
|
|
SH50T-0.85-680FIXED IND 680UH 850MA 1.25OHM TH |
1,325 | - |
|
Datasheet | SH50 | Radial, Horizontal - Corner Terminals | Tray | Obsolete | Toroidal | Iron Powder | 680 µH | ±20% | 850 mA | - | Unshielded | 1.25Ohm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.689" L x 0.669" W (17.50mm x 17.00mm) | 0.492" (12.50mm) |
|
|
SH50C-0.90-267FIXED IND 330UH 900MA 180MOHM TH |
4,591 | - |
|
Datasheet | SH50 | Horizontal, 4 PC Pin | Bulk | Active | Toroidal | - | 267 µH | ±20% | 900 mA | - | Unshielded | 180mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | Horizontal, 4 PC Pin | 0.689" L x 0.669" W (17.50mm x 17.00mm) | 0.492" (12.50mm) |
|
|
SH50F-0.90-330FIXED IND 330UH 900MA 740MOHM TH |
4,919 | - |
|
Datasheet | SH50 | Horizontal, 4 PC Pin | Bulk | Active | Toroidal | - | 302 µH | ±20% | 900 mA | - | Unshielded | 740mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | Horizontal, 4 PC Pin | 0.689" L x 0.669" W (17.50mm x 17.00mm) | 0.492" (12.50mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
