Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MCEP125SG1R0MFIXED IND 1UH 16.5A 2.5 MOHM SMD |
450 | - |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | Planar | - | 1 µH | ±20% | 16.5 A | 20A | - | 2.5mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.500" L x 0.492" W (12.70mm x 12.50mm) | 0.217" (5.50mm) |
|
MHW1807SG4R0KFIXED IND 4UH 18A 3 MOHM SMD |
250 | - |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | Planar | - | 4 µH | ±10% | 18 A | 18A | - | 3mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.800" L x 0.748" W (20.30mm x 19.00mm) | 0.335" (8.50mm) |
|
MHW2009SG7R0KAFIXED IND 7UH 7A 7 MOHM SMD |
500 | - |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | Planar | - | 7 µH | ±10% | 7 A | 18A | - | 7mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.858" L x 0.835" W (21.80mm x 21.20mm) | 0.323" (8.20mm) |
|
MHW1807SG2R0KAFIXED IND 2UH 25A 3 MOHM SMD |
250 | - |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | Planar | - | 2 µH | ±10% | 25 A | 32A | - | 3mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.800" L x 0.748" W (20.30mm x 19.00mm) | 0.335" (8.50mm) |
|
MHW2012SG100KAFIXED IND 10UH 10A 3.9 MOHM SMD |
120 | - |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | Planar | - | 10 µH | ±10% | 10 A | 21A | - | 3.9mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.878" L x 0.866" W (22.30mm x 22.00mm) | 0.492" (12.50mm) |
|

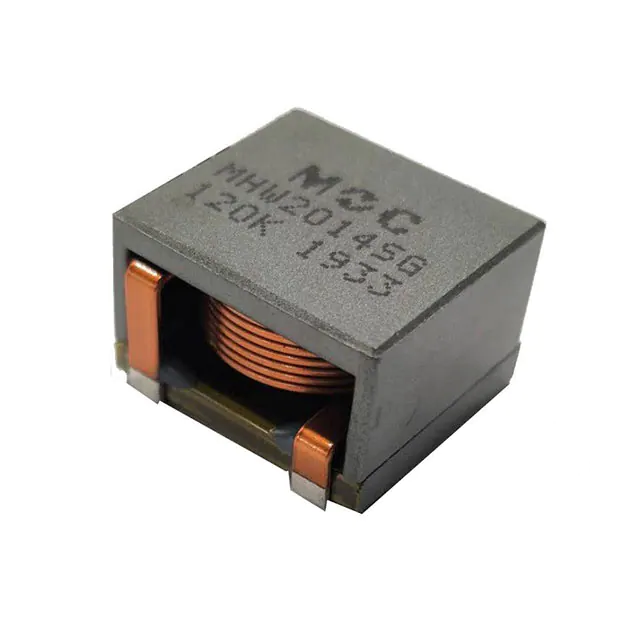

MHW2014SG120KFIXED IND 12UH 12A 5 MOHM SMD |
3,537 | - |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | Planar | - | 12 µH | ±10% | 12 A | 22A | - | 5mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.878" L x 0.866" W (22.30mm x 22.00mm) | 0.555" (14.10mm) |
|
MHW2618HBSG100KFIXED IND 10UH 28A 2.86 MOHM SMD |
4,976 | - |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | Planar | - | 10 µH | ±10% | 28 A | 31.2A | - | 2.86mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 1.098" L x 1.098" W (27.94mm x 27.94mm) | 0.700" (17.78mm) |
|
MHW2618HBSG4R7KFIXED IND 4.7UH 28A 2.86MOHM SMD |
2,965 | - |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | Planar | - | 4.7 µH | ±10% | 28 A | 61.2A | - | 2.86mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 1.098" L x 1.098" W (27.94mm x 27.94mm) | 0.700" (17.78mm) |
|
MHA0530NSGR68MFIXED IND 680NH 8.5A 9.8MOHM SMD |
2,950 | - |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 680 nH | ±20% | 8.5 A | 12A | - | 9.8mOhm Max | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.217" L x 0.205" W (5.50mm x 5.20mm) | 0.110" (2.80mm) |
|
MHW2012SG150KAFIXED IND 15UH 10A 3.9 MOHM SMD |
3,113 | - |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | Planar | - | 15 µH | ±10% | 10 A | 15.3A | - | 3.9mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.878" L x 0.866" W (22.30mm x 22.00mm) | 0.492" (12.50mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
