Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LQW15AN2N5B00DFIXED IND 2.5NH 850MA 0.05OHM SM |
24,192 | - |
|
Datasheet | LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 2.5 nH | ±0.1nH | 850 mA | - | Unshielded | 50mOhm Max | 20 @ 250MHz | 15GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
LQW15AN82NG00DFIXED IND 82NH 130MA 2.24OHM SMD |
23,630 | - |
|
Datasheet | LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 82 nH | ±2% | 130 mA | - | Unshielded | 2.24Ohm Max | 20 @ 150MHz | 2.3GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
|
LQW18ANR11G00DFIXED IND 110NH 200MA 1.2OHM SMD |
23,523 | - |
|
Datasheet | LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 110 nH | ±2% | 200 mA | - | Unshielded | 1.2Ohm Max | 32 @ 150MHz | 1.7GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
LQW18ANR12G00DFIXED IND 120NH 180MA 1.3OHM SMD |
23,282 | - |
|
Datasheet | LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 120 nH | ±2% | 180 mA | - | Unshielded | 1.3Ohm Max | 32 @ 150MHz | 1.6GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|

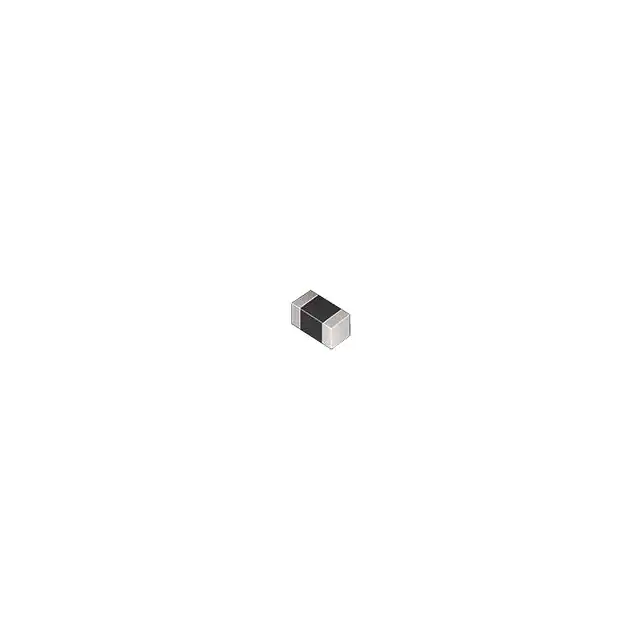

LQM18DN220M70LFIXED IND 22UH 200MA |
22,187 | - |
|
Datasheet | LQM18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 22 µH | ±20% | 200 mA | 50mA | Shielded | 3.12Ohm Max | - | 15MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
LQW18AN68NG00DFIXED IND 68NH 340MA 0.38OHM SMD |
22,185 | - |
|
Datasheet | LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 68 nH | ±2% | 340 mA | - | Unshielded | 380mOhm Max | 38 @ 200MHz | 2.2GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
LQW15AN8N7G00DFIXED IND 8.7NH 540MA 0.14OHM SM |
21,796 | - |
|
Datasheet | LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 8.7 nH | ±2% | 540 mA | - | Unshielded | 140mOhm Max | 25 @ 250MHz | 5.5GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
LQW15AN40NG00DFIXED IND 40NH 250MA 0.7OHM SMD |
21,427 | - |
|
Datasheet | LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 40 nH | ±2% | 250 mA | - | Unshielded | 700mOhm Max | 25 @ 250MHz | 3GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
|
LQW15AN3N0B00DFIXED IND 3NH 750MA 0.07OHM SMD |
21,425 | - |
|
Datasheet | LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 3 nH | ±0.1nH | 750 mA | - | Unshielded | 70mOhm Max | 20 @ 250MHz | 15GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
LQW18AN43NG00DFIXED IND 43NH 380MA 0.29OHM SMD |
20,924 | - |
|
Datasheet | LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 43 nH | ±2% | 380 mA | - | Unshielded | 290mOhm Max | 40 @ 200MHz | 2.7GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
