Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

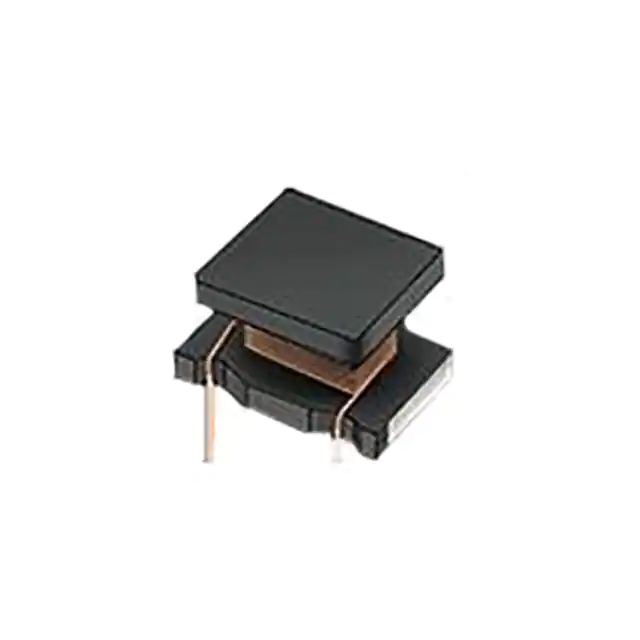

LQH32NZ6R8K23LFIXED IND 6.8UH 240MA 1.5OHM SMD |
2,633 | - |
|
Datasheet | LQH32 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±10% | 240 mA | - | Unshielded | 1.5Ohm Max | 20 @ 1MHz | 25MHz | AEC-Q200 | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
|
LQH32NZ120J23LFIXED IND 12UH 180MA 2 OHM SMD |
3,931 | - |
|
Datasheet | LQH32 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 12 µH | ±5% | 180 mA | - | Unshielded | 2Ohm Max | 35 @ 1MHz | 18MHz | AEC-Q200 | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
|
LQH32NZ5R6K23LFIXED IND 5.6UH 250MA 1.3OHM SMD |
2,760 | - |
|
Datasheet | LQH32 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 5.6 µH | ±10% | 250 mA | - | Unshielded | 1.3Ohm Max | 20 @ 1MHz | 28MHz | AEC-Q200 | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
|
LQH32NZ150J23LFIXED IND 15UH 170MA 2.2 OHM SMD |
1,004 | - |
|
Datasheet | LQH32 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±5% | 170 mA | - | Unshielded | 2.2Ohm Max | 35 @ 1MHz | 16MHz | AEC-Q200 | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
|
LQH32NZ8R2K23LFIXED IND 8.2UH 225MA 1.6OHM SMD |
3,741 | - |
|
Datasheet | LQH32 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±10% | 225 mA | - | Unshielded | 1.6Ohm Max | 20 @ 1MHz | 23MHz | AEC-Q200 | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
|
LQH32NZ2R2K23LFIXED IND 2.2UH 370MA 800MOHM SM |
2,694 | - |
|
Datasheet | LQH32 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±10% | 370 mA | - | Unshielded | 800mOhm Max | 20 @ 1MHz | 50MHz | AEC-Q200 | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
|
LQH32NZ270J23LFIXED IND 27UH 125MA 3.1 OHM SMD |
1,248 | - |
|
Datasheet | LQH32 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±5% | 125 mA | - | Unshielded | 3.1Ohm Max | 35 @ 1MHz | 13MHz | AEC-Q200 | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
|
LQH32NZ121J23LFIXED IND 120UH 75MA 8 OHM SMD |
1,156 | - |
|
Datasheet | LQH32 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 120 µH | ±5% | 75 mA | - | Unshielded | 8Ohm Max | 40 @ 796kHz | 7.5MHz | AEC-Q200 | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
|
LQH32NZ151J23LFIXED IND 150UH 70MA 9.3 OHM SMD |
1,039 | - |
|
Datasheet | LQH32 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±5% | 70 mA | - | Unshielded | 9.3Ohm Max | 40 @ 796kHz | 7MHz | AEC-Q200 | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
|
LQH32NZ820J23LFIXED IND 82UH 70MA 6.2 OHM SMD |
4,727 | - |
|
Datasheet | LQH32 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±5% | 70 mA | - | Unshielded | 6.2Ohm Max | 40 @ 1MHz | 8.5MHz | AEC-Q200 | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
