Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LQH6PPN6R8M43LFIXED IND 6.8UH 2.85A 28MOHM SMD |
2,336 | - |
|
Datasheet | LQH6 | 2424 (6060 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 6.8 µH | ±20% | 2.85 A | 3.2A | Shielded | 28mOhm | - | 20MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
LQH6PPN100M43LFIXED IND 10UH 2.6A 44 MOHM SMD |
2,855 | - |
|
Datasheet | LQH6 | 2424 (6060 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 10 µH | ±20% | 2.6 A | 2.6A | Shielded | 44mOhm | - | 15MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
LQH6PPN150M43LFIXED IND 15UH 2.2A 65 MOHM SMD |
2,266 | - |
|
Datasheet | LQH6 | 2424 (6060 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 15 µH | ±20% | 2.2 A | 2.2A | Shielded | 65mOhm | - | 10MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
LQH6PPN220M43LFIXED IND 22UH 1.55A 108MOHM SMD |
1,769 | - |
|
Datasheet | LQH6 | 2424 (6060 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 22 µH | ±20% | 1.55 A | 1.7A | Shielded | 108mOhm | - | 10MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
|
LQH6PPN330M43LFIXED IND 33UH 1.29A 137MOHM SMD |
1,044 | - |
|
Datasheet | LQH6 | 2424 (6060 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 33 µH | ±20% | 1.29 A | 1.6A | Shielded | 137mOhm | - | 6MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
LQH6PPN470M43LFIXED IND 47UH 1.1A 230 MOHM SMD |
2,914 | - |
|
Datasheet | LQH6 | 2424 (6060 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 47 µH | ±20% | 1.1 A | 1.25A | Shielded | 230mOhm Max | - | 6MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|

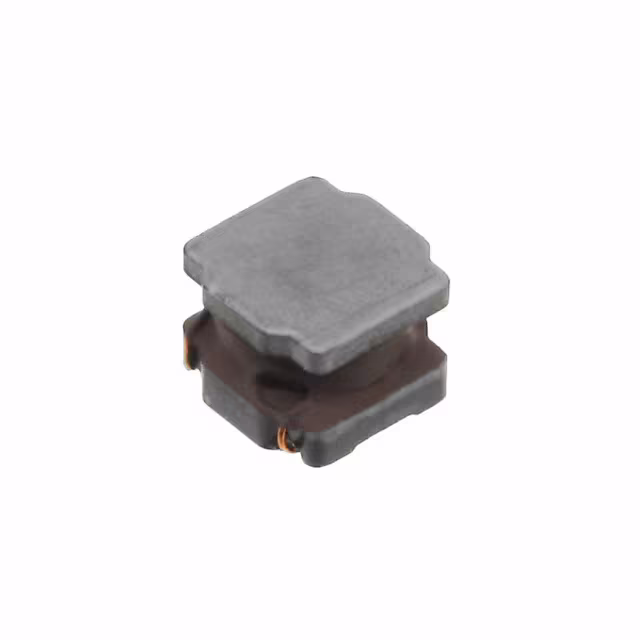

LQH6PPN680M43LFIXED IND 68UH 1A 289 MOHM SMD |
2,438 | - |
|
Datasheet | LQH6 | 2424 (6060 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 68 µH | ±20% | 1 A | 1.1A | Shielded | 289mOhm | - | 5MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
LQH6PPN101M43LFIXED IND 100UH 800MA 436MOHM SM |
2,449 | - |
|
Datasheet | LQH6 | 2424 (6060 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 100 µH | ±20% | 800 mA | 920mA | Shielded | 436mOhm | - | 3MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
LQW2BHNR22J03LFIXED IND 220NH 240MA 0.7OHM SMD |
3,871 | - |
|
Datasheet | LQW2 | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Non-Magnetic | 220 nH | ±5% | 240 mA | - | Unshielded | 700mOhm Max | 35 @ 100MHz | 500MHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.059" W (2.00mm x 1.50mm) | 0.070" (1.78mm) |
|
LQH2HPN1R2NJRLFIXED IND 1.2UH 1.24A 66MOHM SMD |
4,370 | - |
|
Datasheet | LQH2 | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1.2 µH | ±30% | 1.24 A | 2.45A | Shielded | 66mOhm Max | - | 100MHz | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
