Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B1134AS-6R8N=P3EMC |
4,236 | - |
|
Datasheet | DS84LCB | Nonstandard | Tape & Reel (TR) | Not For New Designs | - | Ferrite | 6.8 µH | ±30% | 3.3 A | 4.2A | Shielded | 43mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.331" L x 0.327" W (8.40mm x 8.30mm) | 0.157" (4.00mm) |
|
|
B1134AS-150M=P3EMC |
2,781 | - |
|
Datasheet | DS84LCB | Nonstandard | Tape & Reel (TR) | Not For New Designs | - | Ferrite | 15 µH | ±20% | 2.3 A | 2.8A | Shielded | 80mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.331" L x 0.327" W (8.40mm x 8.30mm) | 0.157" (4.00mm) |
|
|
B1134AS-101M=P3EMC |
4,195 | - |
|
Datasheet | DS84LCB | Nonstandard | Tape & Reel (TR) | Not For New Designs | - | Ferrite | 100 µH | ±20% | 930 mA | 1.1A | Shielded | 460mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.331" L x 0.327" W (8.40mm x 8.30mm) | 0.157" (4.00mm) |
|
LQH2HPN150MGRLFIXED IND 15UH 560MA 1.11OHM SMD |
4,835 | - |
|
Datasheet | LQH2 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 15 µH | ±20% | 560 mA | 570mA | Shielded | 1.11Ohm Max | - | 20MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
LQH2HPNR68MGRLFIXED IND 680NH 2.33A 66MOHM SMD |
3,922 | - |
|
Datasheet | LQH2 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 680 nH | ±20% | 2.33 A | 2.43A | Shielded | 66mOhm Max | - | 110MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
1255AY-3R3N=P3FIXED IND 3.3UH 4.4A 21MOHM SMD |
3,374 | - |
|
Datasheet | DG6045C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 4.4 A | 5.2A | Shielded | 21mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.248" L x 0.248" W (6.30mm x 6.30mm) | 0.177" (4.50mm) |
|
LQH43CN151K03LFIXED IND 150UH 130MA 3.5OHM SMD |
1,622 | - |
|
Datasheet | LQH43 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 130 mA | - | Unshielded | 3.5Ohm Max | - | 5.5MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.110" (2.80mm) |
|

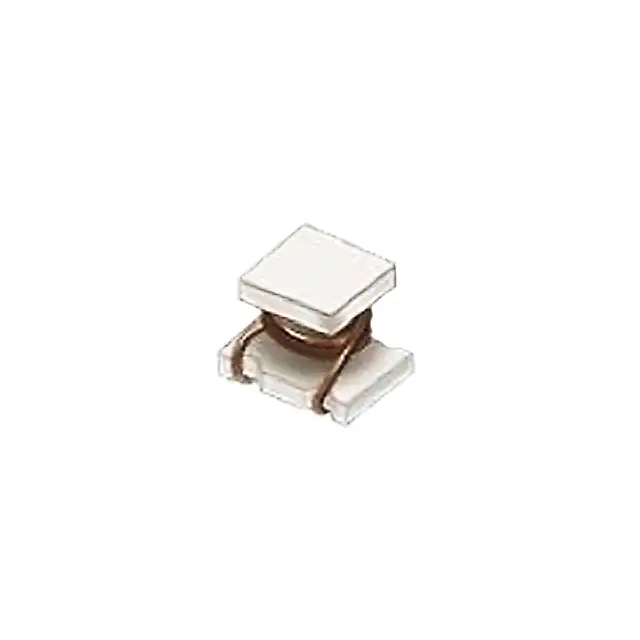

LQW2BHNR15G03LFIXED IND 150NH 260MA 0.68OHM SM |
1,722 | - |
|
Datasheet | LQW2 | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Non-Magnetic | 150 nH | ±2% | 260 mA | - | Unshielded | 680mOhm Max | 30 @ 150MHz | 350MHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.059" W (2.00mm x 1.50mm) | 0.070" (1.78mm) |
|
|
1255AY-150M=P3FIXED IND 15UH 2.4A 63 MOHM SMD |
1,431 | - |
|
Datasheet | DG6045C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 2.4 A | 2.5A | Shielded | 63mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.248" L x 0.248" W (6.30mm x 6.30mm) | 0.177" (4.50mm) |
|
|
1255AY-1R0N=P3FIXED IND 1UH 6.5A 10 MOHM SMD |
3,532 | - |
|
Datasheet | DG6045C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 6.5 A | 9.5A | Shielded | 10mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.248" L x 0.248" W (6.30mm x 6.30mm) | 0.177" (4.50mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
