Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LQH43NN820J03LFIXED IND 82UH 170MA 2.2 OHM SMD |
4,306 | - |
|
Datasheet | LQH43 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±5% | 170 mA | - | Unshielded | 2.2Ohm Max | 35 @ 1MHz | 7.5MHz | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.110" (2.80mm) |
|
|
LQH43NN820K03LFIXED IND 82UH 170MA 2.2 OHM SMD |
4,737 | - |
|
Datasheet | LQH43 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±10% | 170 mA | - | Unshielded | 2.2Ohm Max | 35 @ 1MHz | 7.5MHz | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.110" (2.80mm) |
|
|
LQH43NN821J03LFIXED IND 820UH 60MA 20.5OHM SMD |
1,765 | - |
|
Datasheet | LQH43 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 820 µH | ±5% | 60 mA | - | Unshielded | 20.5Ohm Max | 40 @ 796kHz | 2.2MHz | - | -40°C ~ 105°C | 1 kHz | - | Surface Mount | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.110" (2.80mm) |
|
|
LQH43NN821K03LFIXED IND 820UH 60MA 20.5OHM SMD |
1,614 | - |
|
Datasheet | LQH43 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 820 µH | ±10% | 60 mA | - | Unshielded | 20.5Ohm Max | 40 @ 796kHz | 2.2MHz | - | -40°C ~ 105°C | 1 kHz | - | Surface Mount | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.110" (2.80mm) |
|
|
LQH43NN8R2K03LFIXED IND 8.2UH 450MA 560MOHM SM |
1,777 | - |
|
Datasheet | LQH43 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±10% | 450 mA | - | Unshielded | 560mOhm Max | 30 @ 1MHz | 27MHz | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.110" (2.80mm) |
|
|
LQH43NN8R2M03LFIXED IND 8.2UH 450MA 560MOHM SM |
3,042 | - |
|
Datasheet | LQH43 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±20% | 450 mA | - | Unshielded | 560mOhm Max | 30 @ 1MHz | 27MHz | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.110" (2.80mm) |
|

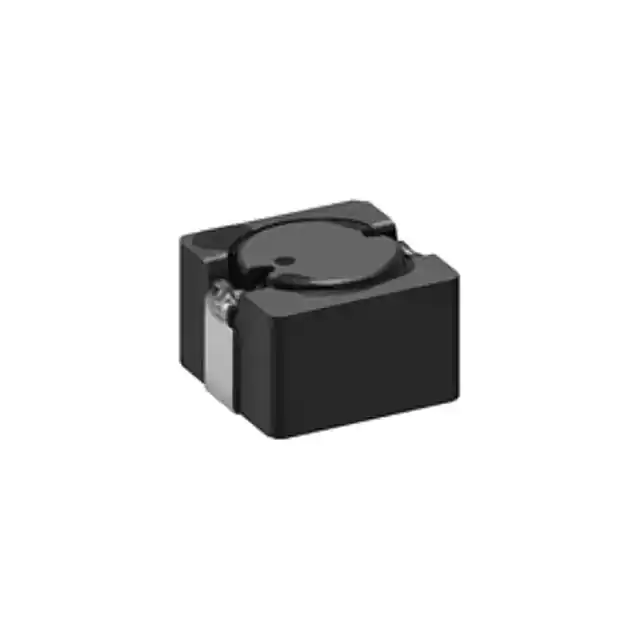

B1047AS-1R0N=P3FIXED IND 1UH 6.4A 12 MOHM SMD |
4,878 | - |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 6.4 A | 9.2A | Shielded | 12mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 2-SMD | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.197" (5.00mm) |
|
|
B1047AS-1R5N=P3FIXED IND 1.5UH 5.9A 14 MOHM SMD |
2,268 | - |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 5.9 A | 7.7A | Shielded | 14mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 2-SMD | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.197" (5.00mm) |
|
|
B1047AS-2R7N=P3FIXED IND 2.7UH 5.1A 18 MOHM SMD |
3,703 | - |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 2.7 µH | ±30% | 5.1 A | 5.6A | Shielded | 18mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 2-SMD | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.197" (5.00mm) |
|
|
B1047AS-3R6N=P3FIXED IND 3.6UH 4.4A 23 MOHM SMD |
2,715 | - |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 3.6 µH | ±30% | 4.4 A | 5A | Shielded | 23mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 2-SMD | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.197" (5.00mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
