Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MDH10060C-221MB=P3FIXED IND 220UH 0.8A 345 MOHM SM |
1,186 | - |
|
Datasheet | MDH10060C | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 220 µH | ±20% | 800 mA | 1A | Unshielded | 448.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.394" W (10.10mm x 10.00mm) | 0.248" (6.30mm) |
|
|
MDH10060C-101MB=P3FIXED IND 100UH 1.2A 160 MOHM SM |
1,718 | - |
|
Datasheet | MDH10060C | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 100 µH | ±20% | 1.2 A | 1.5A | Unshielded | 208mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.394" W (10.10mm x 10.00mm) | 0.248" (6.30mm) |
|
|
MDH10060C-330MB=P3FIXED IND 33UH 2.1A 61 MOHM SMD |
4,035 | - |
|
Datasheet | MDH10060C | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 33 µH | ±20% | 2.1 A | 2.6A | Unshielded | 79.3mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.394" W (10.10mm x 10.00mm) | 0.248" (6.30mm) |
|
|
MDH10060C-6R8NB=P3FIXED IND 6.8UH 3.8A 14 MOHM SMD |
2,019 | - |
|
Datasheet | MDH10060C | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 6.8 µH | ±30% | 3.8 A | 6A | Unshielded | 18.2mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.394" W (10.10mm x 10.00mm) | 0.248" (6.30mm) |
|

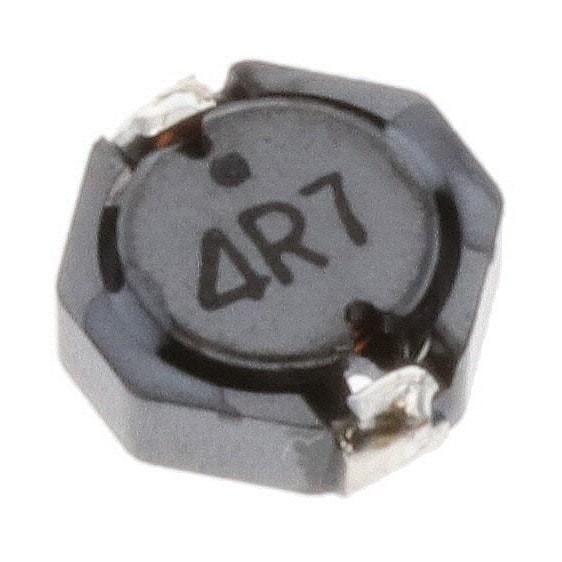

#A914BYW-4R7M=P3FIXED IND 4.7UH 1.22A 87MOHM SMD |
2,101 | - |
|
Datasheet | D52LC | Nonstandard | Tape & Reel (TR) | Not For New Designs | - | - | 4.7 µH | ±20% | 1.22 A | 1.14A | Shielded | 87mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|
1273AS-H-330M=P3FIXED IND 33UH 1.6A 174 MOHM SMD |
4,009 | - |
|
Datasheet | DEM8030C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 1.6 A | 1.9A | Shielded | 174mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.118" (3.00mm) |
|
|
1273AS-H-470M=P3FIXED IND 47UH 1.3A 289 MOHM SMD |
3,281 | - |
|
Datasheet | DEM8030C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1.3 A | 1.3A | Shielded | 289mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.118" (3.00mm) |
|
B1135AS-1R0N=P3FIXED IND 1UH 8.5A 9.6 MOHM SMD |
4,796 | - |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 8.5 A | 7.8A | Shielded | 9.6mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 2-SMD | 0.331" L x 0.327" W (8.40mm x 8.30mm) | 0.197" (5.00mm) |
|
|
B1135AS-1R5N=P3FIXED IND 1.5UH 7.6A 11 MOHM SMD |
4,923 | - |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 7.6 A | 6.3A | Shielded | 11mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 2-SMD | 0.331" L x 0.327" W (8.40mm x 8.30mm) | 0.197" (5.00mm) |
|
|
B1135AS-2R2N=P3FIXED IND 2.2UH 7.3A 13 MOHM SMD |
1,231 | - |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 7.3 A | 5.5A | Shielded | 13mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 2-SMD | 0.331" L x 0.327" W (8.40mm x 8.30mm) | 0.197" (5.00mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
