Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ATCA-05-900M-VFIXED IND 90UH 5A 34 MOHM TH |
3,999 | - |
|
Datasheet | ATCA | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 90 µH | ±20% | 5 A | - | Unshielded | 34mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.181" L x 0.669" W (30.00mm x 17.00mm) | - |
|
ATCA-06-391M-HFIXED IND 390UH 4A 88 MOHM TH |
4,958 | - |
|
Datasheet | ATCA | Radial, Horizontal (Open) | Tray | Active | Toroidal | Iron Powder | 390 µH | ±20% | 4 A | - | Unshielded | 88mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.260" Dia (32.00mm) | 0.630" (16.00mm) |
|
|
ATCA-06-471M-HFIXED IND 470UH 1A 342 MOHM TH |
3,859 | - |
|
Datasheet | ATCA | Radial, Horizontal (Open) | Tray | Active | Toroidal | Iron Powder | 470 µH | ±20% | 1 A | - | Unshielded | 342mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.260" Dia (32.00mm) | 0.630" (16.00mm) |
|

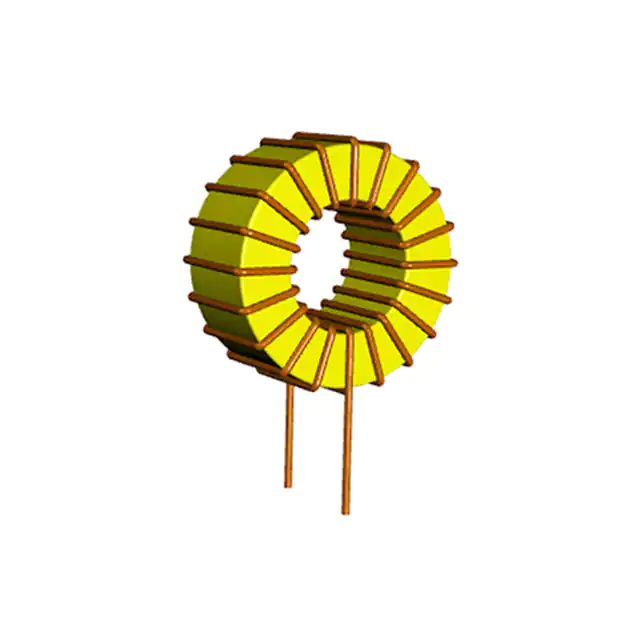

ATCA-06-391M-VFIXED IND 390UH 4A 88 MOHM TH |
3,421 | - |
|
Datasheet | ATCA | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 390 µH | ±20% | 4 A | - | Unshielded | 88mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.260" L x 0.630" W (32.00mm x 16.00mm) | - |
|
|
ATCA-06-471M-VFIXED IND 470UH 1A 342 MOHM TH |
4,529 | - |
|
Datasheet | ATCA | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 470 µH | ±20% | 1 A | - | Unshielded | 342mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.260" L x 0.630" W (32.00mm x 16.00mm) | - |
|
ATCA-05-141M-HFIXED IND 140UH 3A 64 MOHM TH |
1,358 | - |
|
Datasheet | ATCA | Radial, Horizontal (Open) | Tray | Active | Toroidal | Iron Powder | 140 µH | ±20% | 3 A | - | Unshielded | 64mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.181" Dia (30.00mm) | 0.669" (17.00mm) |
|
|
ATCA-05-141M-VFIXED IND 140UH 3A 64 MOHM TH |
2,647 | - |
|
Datasheet | ATCA | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 140 µH | ±20% | 3 A | - | Unshielded | 64mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.181" L x 0.669" W (30.00mm x 17.00mm) | - |
|
|
ATCA-06-501M-HFIXED IND 500UH 3A 124 MOHM TH |
1,809 | - |
|
Datasheet | ATCA | Radial, Horizontal (Open) | Tray | Active | Toroidal | Iron Powder | 500 µH | ±20% | 3 A | - | Unshielded | 124mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.260" Dia (32.00mm) | 0.630" (16.00mm) |
|
|
ATCA-06-781M-HFIXED IND 780UH 2A 225 MOHM TH |
4,236 | - |
|
Datasheet | ATCA | Radial, Horizontal (Open) | Tray | Active | Toroidal | Iron Powder | 780 µH | ±20% | 2 A | - | Unshielded | 225mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.260" Dia (32.00mm) | 0.630" (16.00mm) |
|
|
ATCA-06-501M-VFIXED IND 500UH 3A 124 MOHM TH |
2,754 | - |
|
Datasheet | ATCA | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 500 µH | ±20% | 3 A | - | Unshielded | 124mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.260" L x 0.630" W (32.00mm x 16.00mm) | - |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
