Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

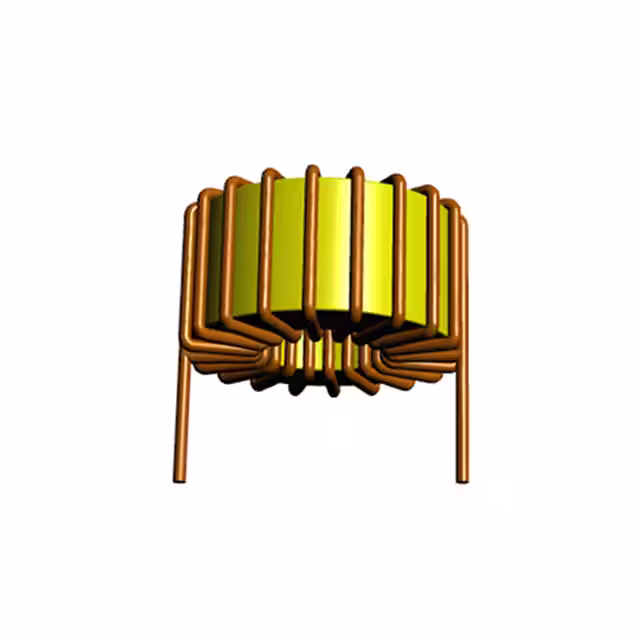

ATCA-07-560M-HFIXED IND 56UH 7A 20 MOHM TH |
2,830 | - |
|
Datasheet | ATCA | Radial, Horizontal (Open) | Tray | Active | Toroidal | Iron Powder | 56 µH | ±20% | 7 A | - | Unshielded | 20mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.417" Dia (36.00mm) | 0.768" (19.50mm) |
|

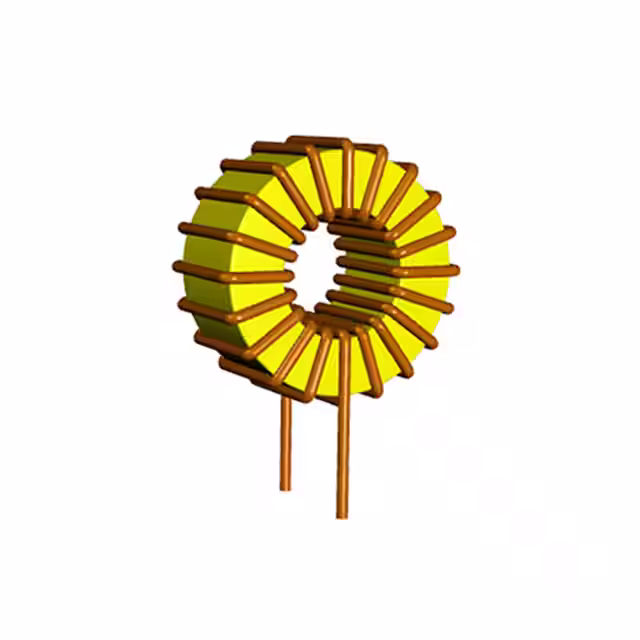

ATCA-07-350M-VFIXED IND 35UH 10A 10 MOHM TH |
2,547 | - |
|
Datasheet | ATCA | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 35 µH | ±20% | 10 A | - | Unshielded | 10mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.417" L x 0.768" W (36.00mm x 19.50mm) | - |
|
|
ATCA-07-560M-VFIXED IND 56UH 7A 20 MOHM TH |
3,248 | - |
|
Datasheet | ATCA | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 56 µH | ±20% | 7 A | - | Unshielded | 20mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.417" L x 0.768" W (36.00mm x 19.50mm) | - |
|
ATCA-08-750M-HFIXED IND 75UH 10A 14 MOHM TH |
3,599 | - |
|
Datasheet | ATCA | Radial, Horizontal (Open) | Tray | Active | Toroidal | Iron Powder | 75 µH | ±20% | 10 A | - | Unshielded | 14mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.673" Dia (42.50mm) | 0.846" (21.50mm) |
|
ATCA-08-750M-VFIXED IND 75UH 10A 14 MOHM TH |
3,250 | - |
|
Datasheet | ATCA | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 75 µH | ±20% | 10 A | - | Unshielded | 14mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.673" L x 0.846" W (42.50mm x 21.50mm) | - |
|
|
ATCA-07-301M-HFIXED IND 300UH 2A 142 MOHM TH |
1,126 | - |
|
Datasheet | ATCA | Radial, Horizontal (Open) | Tray | Active | Toroidal | Iron Powder | 300 µH | ±20% | 2 A | - | Unshielded | 142mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.417" Dia (36.00mm) | 0.768" (19.50mm) |
|
|
ATCA-07-301M-VFIXED IND 300UH 2A 142 MOHM TH |
2,808 | - |
|
Datasheet | ATCA | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 300 µH | ±20% | 2 A | - | Unshielded | 142mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.417" L x 0.768" W (36.00mm x 19.50mm) | - |
|
|
ATCA-07-851M-HFIXED IND 850UH 2A 211 MOHM TH |
1,631 | - |
|
Datasheet | ATCA | Radial, Horizontal (Open) | Tray | Active | Toroidal | Iron Powder | 850 µH | ±20% | 2 A | - | Unshielded | 211mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.417" Dia (36.00mm) | 0.768" (19.50mm) |
|
|
ATCA-07-851M-VFIXED IND 850UH 2A 211 MOHM TH |
4,228 | - |
|
Datasheet | ATCA | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 850 µH | ±20% | 2 A | - | Unshielded | 211mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.417" L x 0.768" W (36.00mm x 19.50mm) | - |
|
|
ATCA-08-131M-HFIXED IND 130UH 7A 31 MOHM TH |
3,251 | - |
|
Datasheet | ATCA | Radial, Horizontal (Open) | Tray | Active | Toroidal | Iron Powder | 130 µH | ±20% | 7 A | - | Unshielded | 31mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.673" Dia (42.50mm) | 0.846" (21.50mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
