Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BMQADY1010404R7MA1FIXED IND 4.7UH SMD |
9,244 | - |
|
Datasheet | BMQx | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 4.7 µH | ±20% | - | - | Shielded | - | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.445" L x 0.402" W (11.30mm x 10.20mm) | 0.157" (4.00mm) |
|
BMRA000505304R7MA1FIXED IND 4.7UH 4A 60 MOHM SMD |
10,485 | - |
|
Datasheet | BMRA | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 4.7 µH | ±20% | 4 A | 6A | Shielded | 60mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.224" W (5.40mm x 5.70mm) | 0.118" (3.00mm) |
|
|
BMRA00060630220MA1FIXED IND 22UH 3A 145 MOHM SMD |
7,262 | - |
|
Datasheet | BMRA | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 22 µH | ±20% | 3 A | 3.2A | Shielded | 145mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|
BMQA000606302R2MA1FIXED IND 2.2UH 11A 9.4 MOHM SMD |
2,837 | - |
|
Datasheet | BMQx | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 11 A | 12.5A | Shielded | 9.4mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.274" L x 0.260" W (6.95mm x 6.60mm) | 0.118" (3.00mm) |
|
PA4341.222NLTFIXED IND 2.2UH 8A 20 MOHM SMD |
3,405 | - |
|
Datasheet | PA4341.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 8 A | 14A | Shielded | 20mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.272" W (7.60mm x 6.90mm) | 0.118" (3.00mm) |
|
AMRM00101040100MA1IND 10UH SHLD 20% 6.5A |
9,585 | - |
|
Datasheet | AMRM00101040A1 | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 6.5 A | 7A | Unshielded | 30mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.457" L x 0.402" W (11.60mm x 10.20mm) | 0.157" (4.00mm) |
|
|
AMRM00101040470MA1IND 47UH SHLD 20% 3.0A |
9,790 | - |
|
Datasheet | AMRM00101040A1 | Nonstandard | Tape & Reel (TR) | Active | - | - | 47 µH | ±20% | 3 A | 3.5A | Unshielded | 165mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.457" L x 0.402" W (11.60mm x 10.20mm) | 0.157" (4.00mm) |
|
PA4987.102HLTFIXED IND 1UH 16.2A 0.81MOHM SMD |
2,436 | - |
|
Datasheet | PA4987 | Nonstandard | Tape & Reel (TR) | Active | - | - | 1 µH | ±15% | 16.2 A | 20.5A | Shielded | 0.81mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.276" W (10.00mm x 7.00mm) | 0.394" (10.00mm) |
|

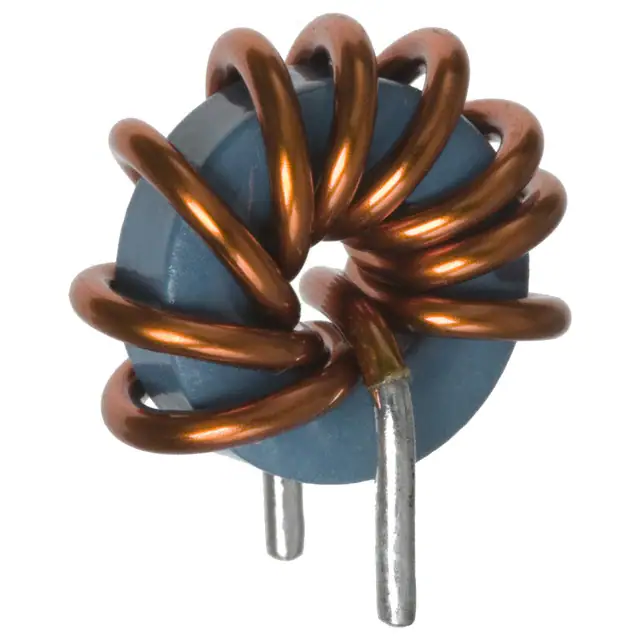

P1715LNLFIXED IND 3.5UH 14.3A 5 MOHM TH |
1,381 | - |
|
Datasheet | Bare Coil | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 3.5 µH | - | 14.3 A | - | Unshielded | 5mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.610" Dia x 0.327" W (15.50mm x 8.30mm) | - |
|
PA4340.223NLTFIXED IND 22UH 1.9A 250 MOHM SMD |
81,907 | - |
|
Datasheet | PA4340.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 22 µH | ±20% | 1.9 A | 1.7A | Shielded | 250mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.213" W (6.00mm x 5.40mm) | 0.118" (3.00mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
