Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PAL6374.121HLTIND POWER BEAD TLVR |
1,470 | - |
|
Datasheet | PAL6374.XXXHLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 120 nH | ±15% | 71 A | 66A | Unshielded | 0.45mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.236" W (12.00mm x 6.00mm) | 0.472" (12.00mm) |
|
|
PAL6374.800HLTIND POWER BEAD TLVR |
340 | - |
|
Datasheet | PAL6374.XXXHLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 80 nH | ±15% | 71 A | 100A | Unshielded | 0.45mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.236" W (12.00mm x 6.00mm) | 0.472" (12.00mm) |
|
|
PAL6374.700HLTIND POWER BEAD TLVR |
340 | - |
|
Datasheet | PAL6374.XXXHLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 70 nH | ±15% | 71 A | 114A | Unshielded | 0.45mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.236" W (12.00mm x 6.00mm) | 0.472" (12.00mm) |
|
PA4321.152NLTFIXED IND 1.5UH 7.8A 5.1MOHM SMD |
5,442 | - |
|
Datasheet | PA4321 | Nonstandard, Corner Terminals | Tape & Reel (TR) | Active | Wirewound | - | 1.5 µH | ±20% | 7.8 A | 5.44A | Shielded | 5.1mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.402" W (10.00mm x 10.20mm) | 0.201" (5.10mm) |
|
PG0926.722NLFIXED IND 7.2UH 12A 7 MOHM SMD |
937 | - |
|
Datasheet | PG0926NL | Nonstandard | Tray | Active | Wirewound | - | 7.2 µH | ±20% | 12 A | 12.5A | Unshielded | 7mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.528" L x 0.528" W (13.40mm x 13.40mm) | 0.315" (8.00mm) |
|

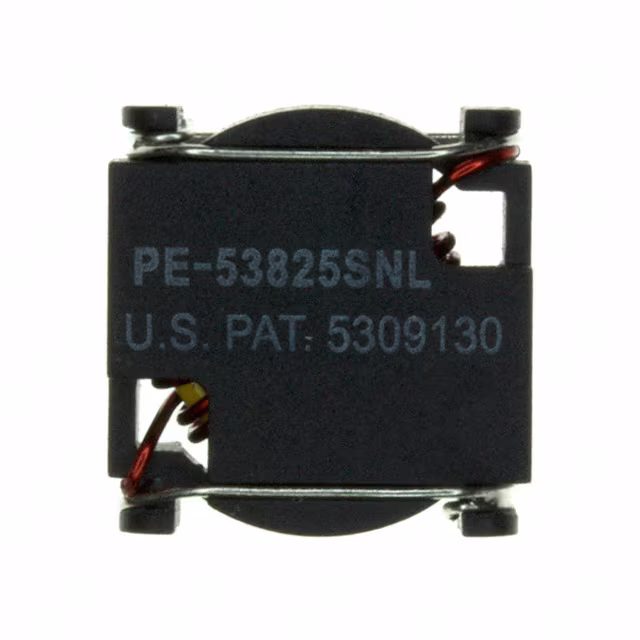

PE-53825SNLFIXED IND 18UH 1.81A 60 MOHM SMD |
1,040 | - |
|
Datasheet | - | Nonstandard | Tube | Active | Toroidal | - | 18 µH | ±20% | 1.81 A | - | Shielded | 60mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.570" L x 0.565" W (14.48mm x 14.35mm) | 0.360" (9.14mm) |
|
PG0936.113NLFIXED IND 11UH 14A 7 MOHM SMD |
950 | - |
|
Datasheet | PG0936NL | Nonstandard | Tray | Active | Wirewound | - | 11 µH | ±20% | 14 A | 14A | Unshielded | 7mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.689" L x 0.657" W (17.50mm x 16.70mm) | 0.394" (10.00mm) |
|
|
PG0936.682NLFIXED IND 6.8UH 18A 3.5 MOHM SMD |
950 | - |
|
Datasheet | PG0936NL | Nonstandard | Tray | Active | Wirewound | - | 6.8 µH | ±20% | 18 A | 18A | Unshielded | 3.5mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.689" L x 0.657" W (17.50mm x 16.70mm) | 0.394" (10.00mm) |
|
|
PG0936.282NLFIXED IND 2.8UH 24A 2.2 MOHM SMD |
880 | - |
|
Datasheet | PG0936NL | Nonstandard | Tray | Active | Wirewound | - | 2.8 µH | ±20% | 24 A | 28A | Unshielded | 2.2mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.689" L x 0.657" W (17.50mm x 16.70mm) | 0.394" (10.00mm) |
|
PA5006.271NLTFIXED IND 270NH 21A 3.5 MOHM SMD |
2,950 | - |
|
Datasheet | PA5006.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 270 nH | ±20% | 21 A | 35A | Shielded | 3.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.299" W (7.80mm x 7.60mm) | 0.081" (2.05mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
