Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

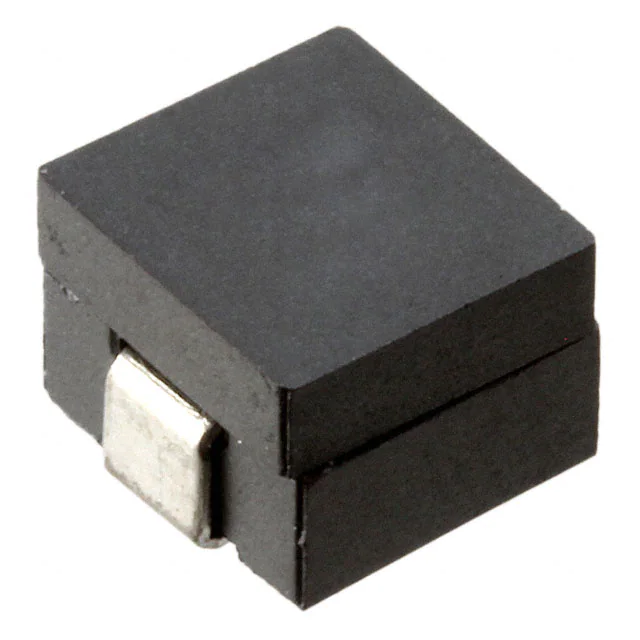

PA1212.101NLTFIXED IND 105NH 31A 0.46MOHM SMD |
3,900 | - |
|
Datasheet | PA1212NL | Nonstandard | Tape & Reel (TR) | Active | - | - | 105 nH | ±20% | 31 A | 46A | Shielded | 0.46mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.195" (4.96mm) |
|
PM4547.103NLTFIXED IND 10UH 1.2A 522 MOHM SMD |
2,174 | - |
|
Datasheet | PM4547 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 1.2 A | 1.6A | Unshielded | 522mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.059" (1.50mm) |
|
|
PM4547.102NLTFIXED IND 1UH 3.6A 50 MOHM SMD |
3,695 | - |
|
Datasheet | PM4547 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 3.6 A | 5.8A | Unshielded | 50mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.059" (1.50mm) |
|
P0250.103NLTFIXED IND 10UH 4.3A 31 MOHM SMD |
2,992 | - |
|
Datasheet | P0250NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±15% | 4.3 A | 10A | Unshielded | 31mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.733" L x 0.596" W (18.62mm x 15.14mm) | 0.290" (7.36mm) |
|
|
P0250.222NLTFIXED IND 2.2UH 7.1A 14 MOHM SMD |
3,495 | - |
|
Datasheet | P0250NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 2.2 µH | ±15% | 7.1 A | 16A | Unshielded | 14mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.733" L x 0.596" W (18.62mm x 15.14mm) | 0.290" (7.36mm) |
|
PA4303.102NLTFIXED IND 1UH 7.8A 8 MOHM SMD |
2,010 | - |
|
Datasheet | PA4303.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 7.8 A | - | Shielded | 8mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.197" (5.00mm) |
|
|
PA4303.104NLTFIXED IND 100UH 1.2A 299MOHM SMD |
2,552 | - |
|
Datasheet | PA4303.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 1.2 A | - | Shielded | 299mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.197" (5.00mm) |
|
|
PA4303.105NLTFIXED IND 1MH 320MA 2.67 OHM SMD |
1,734 | - |
|
Datasheet | PA4303.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±20% | 320 mA | - | Shielded | 2.67Ohm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.197" (5.00mm) |
|
|
PA4303.122NLTFIXED IND 1.2UH 7.5A 9 MOHM SMD |
4,014 | - |
|
Datasheet | PA4303.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.2 µH | ±30% | 7.5 A | - | Shielded | 9mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.197" (5.00mm) |
|
|
PA4303.124NLTFIXED IND 120UH 1.1A 358MOHM SMD |
1,869 | - |
|
Datasheet | PA4303.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 120 µH | ±20% | 1.1 A | - | Shielded | 358mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.197" (5.00mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
