Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APCK000808096R8M70INDUCTOR POWER |
4,158 | - |
|
Datasheet | APCK | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 6.8 µH | ±20% | 3.2 A | 5.2A | Shielded | 31mOhm Max | - | - | AEC-Q200 | -50°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.354" (9.00mm) |
|
|
APCK00080809220M70INDUCTOR POWER |
2,788 | - |
|
Datasheet | APCK | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±20% | 1.8 A | 3A | Shielded | 90mOhm Max | - | - | AEC-Q200 | -50°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.354" (9.00mm) |
|

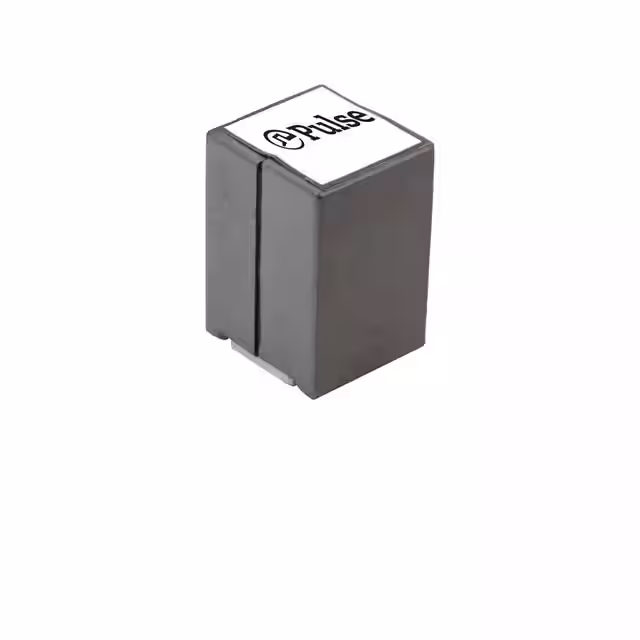

PGL6076.900AHLTINDUCTOR PWR BEAD 90NH 137A |
3,967 | - |
|
Datasheet | PGL6076.XXXAHLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 90 nH | ±10% | 60 A | 137A | Unshielded | 0.155mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.327" L x 0.299" W (8.30mm x 7.60mm) | 0.472" (12.00mm) |
|
|
PGL6076.131AHLTINDUCTOR PWR BEAD 130NH 95A |
1,902 | - |
|
Datasheet | PGL6076.XXXAHLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 130 nH | ±10% | 60 A | 95A | Unshielded | 0.155mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.327" L x 0.299" W (8.30mm x 7.60mm) | 0.472" (12.00mm) |
|
|
PGL6076.321AHLTINDUCTOR PWR BEAD 320NH 37A |
4,610 | - |
|
Datasheet | PGL6076.XXXAHLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 320 nH | ±10% | 60 A | 37A | Unshielded | 0.155mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.327" L x 0.299" W (8.30mm x 7.60mm) | 0.472" (12.00mm) |
|
PE-53807NLFIXED IND 26UH 450MA 620 MOHM TH |
1,691 | - |
|
Datasheet | - | Radial, Vertical - Corner Terminals | Bulk | Active | Toroidal | - | 26 µH | ±20% | 450 mA | - | Shielded | 620mOhm | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.360" L x 0.360" W (9.14mm x 9.14mm) | 0.310" (7.87mm) |
|
PF0560.154NLTFIXED IND 150UH 850MA 506MOHM SM |
3,428 | - |
|
Datasheet | PF0560NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 150 µH | ±25% | 850 mA | 1.15A | Shielded | 506mOhm Max | - | 5.4MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.406" W (10.40mm x 10.30mm) | 0.157" (4.00mm) |
|
PM4346.152NLTFIXED IND 1.5UH 27A 3.3 MOHM SMD |
2,844 | - |
|
Datasheet | PM4346 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1.5 µH | ±20% | 27 A | 48A | Unshielded | 3.3mOhm Max | - | 30MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.197" (5.00mm) |
|
|
PM4346.102NLTFIXED IND 1UH 29A 2.5 MOHM SMD |
1,482 | - |
|
Datasheet | PM4346 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 29 A | 50A | Unshielded | 2.5mOhm Max | - | 40MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.197" (5.00mm) |
|
|
PE-53813SNLFIXED IND 55UH 560MA 500MOHM SMD |
1,684 | - |
|
Datasheet | - | Nonstandard | Bulk | Active | Toroidal | - | 55 µH | ±20% | 560 mA | - | Shielded | 500mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.440" L x 0.435" W (11.18mm x 11.05mm) | 0.360" (9.14mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
