Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PA2242.281NLTIND PWR MOLDED 0.28UH 35A |
990 | - |
|
Datasheet | PA2242.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 280 nH | ±20% | 35 A | 58A | Unshielded | 1.6mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.469" L x 0.433" W (11.90mm x 11.00mm) | 0.122" (3.10mm) |
|

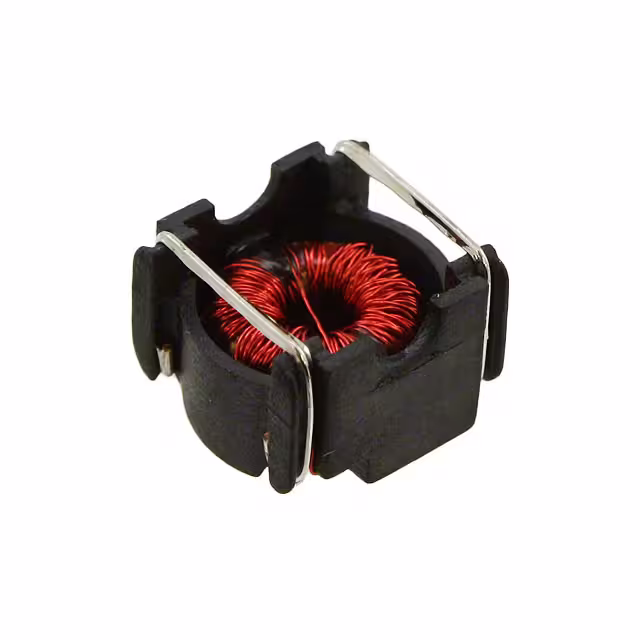

PE-53809SNLFIXED IND 256UH 250MA 2.2OHM SMD |
575 | - |
|
Datasheet | - | Nonstandard | Tube | Active | Toroidal | - | 256 µH | ±20% | 250 mA | - | Shielded | 2.2Ohm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.440" L x 0.435" W (11.18mm x 11.05mm) | 0.360" (9.14mm) |
|
PG0936.681NLFIXED IND 680NH 40A 0.87MOHM SMD |
950 | - |
|
Datasheet | PG0936NL | Nonstandard | Tray | Active | Wirewound | - | 680 nH | ±20% | 40 A | 62A | Unshielded | 0.87mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.689" L x 0.657" W (17.50mm x 16.70mm) | 0.315" (8.00mm) |
|
|
PA2242.561NLTIND PWR MOLDED 0.56UH 32A |
996 | - |
|
Datasheet | PA2242.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 560 nH | ±20% | 32 A | 39A | Unshielded | 2.75mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.469" L x 0.433" W (11.90mm x 11.00mm) | 0.122" (3.10mm) |
|
PE-53652NLFIXED IND 9UH 5.5A 28 MOHM SMD |
1,875 | - |
|
Datasheet | SLIC | Nonstandard | Bulk | Active | Toroidal | - | 9 µH | - | 5.5 A | - | Unshielded | 28mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.620" L x 0.600" W (15.75mm x 15.24mm) | 0.390" (9.91mm) |
|
PM5432.822NLTFIXED IND 8.2UH 8A 26.4MOHM SMD |
2,245 | - |
|
Datasheet | PM5432.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 8.2 µH | ±20% | 8 A | - | Shielded | 26.4mOhm Max | - | 16MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.268" L x 0.260" W (6.80mm x 6.60mm) | 0.236" (6.00mm) |
|
|
PM5432.562NLTFIXED IND 5.6UH 9.9A 15.9MOHM SM |
2,240 | - |
|
Datasheet | PM5432.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 5.6 µH | ±20% | 9.9 A | - | Shielded | 15.9mOhm Max | - | 20MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.268" L x 0.260" W (6.80mm x 6.60mm) | 0.236" (6.00mm) |
|
PG0871.681NLTFIXED IND 680NH 19A 2.3 MOHM SMD |
2,100 | - |
|
Datasheet | PG0871NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 680 nH | ±20% | 19 A | 24.5A | Shielded | 2.3mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.291" W (7.60mm x 7.40mm) | 0.252" (6.40mm) |
|
|
PG0871.332NLTFIXED IND 3.3UH 7.1A 13.5MOHM SM |
2,075 | - |
|
Datasheet | PG0871NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 3.3 µH | ±20% | 7.1 A | 10.5A | Shielded | 13.5mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.291" W (7.60mm x 7.40mm) | 0.252" (6.40mm) |
|
|
PM5432.223NLTFIXED IND 22UH 5A 60.63MOHM SMD |
1,807 | - |
|
Datasheet | PM5432.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 5 A | - | Shielded | 60.63mOhm Max | - | 9MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.268" L x 0.260" W (6.80mm x 6.60mm) | 0.236" (6.00mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
