Fixed Inductors

Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.

If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.

Parametric Selection Filter options by technical parameters

Stock & Datasheets Review availability and technical references

RFQ & BOM Support Send your target MPN, quantity or BOM

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Package/Case	Packaging	Product Status	Type	Material - Core	Inductance	Tolerance	Current Rating (Amps)	Current - Saturation (Isat)	Shielding	DC Resistance (DCR)	Q @ Freq	Frequency - Self Resonant	Ratings	Operating Temperature	Inductance Frequency - Test	Features	Mounting Type	Supplier Device Package	Size / Dimension	Height - Seated (Max)
PM2247.153NLT FIXED IND 15UH 18A 11.5MOHM SMD Pulse Electronics	2,642	-	RFQ	Datasheet	PM2247.XXXNLT	Nonstandard	Tape & Reel (TR)	Active	-	-	15 µH	±20%	18 A	20A	Unshielded	11.5mOhm Max	-	-	AEC-Q200	-55°C ~ 155°C	100 kHz	-	Surface Mount	-	0.650" L x 0.610" W (16.50mm x 15.50mm)	0.394" (10.00mm)
PM2247.562NLT FIXED IND 5.6UH 28A 4.2MOHM SMD Pulse Electronics	2,689	-	RFQ	Datasheet	PM2247.XXXNLT	Nonstandard	Tape & Reel (TR)	Active	-	-	5.6 µH	±20%	28 A	34A	Unshielded	4.2mOhm Max	-	-	AEC-Q200	-55°C ~ 155°C	100 kHz	-	Surface Mount	-	0.650" L x 0.610" W (16.50mm x 15.50mm)	0.394" (10.00mm)
PM2247.103NLT FIXED IND 10UH 24A 8.6 MOHM SMD Pulse Electronics	4,518	-	RFQ	Datasheet	PM2247.XXXNLT	Nonstandard	Tape & Reel (TR)	Active	-	-	10 µH	±20%	24 A	26A	Unshielded	8.6mOhm Max	-	-	AEC-Q200	-55°C ~ 155°C	100 kHz	-	Surface Mount	-	0.650" L x 0.610" W (16.50mm x 15.50mm)	0.394" (10.00mm)
PM2247.682NLT FIXED IND 6.8UH 26A 4.6MOHM SMD Pulse Electronics	1,527	-	RFQ	Datasheet	PM2247.XXXNLT	Nonstandard	Tape & Reel (TR)	Active	-	-	6.8 µH	±20%	26 A	31A	Unshielded	4.6mOhm Max	-	-	AEC-Q200	-55°C ~ 155°C	100 kHz	-	Surface Mount	-	0.650" L x 0.610" W (16.50mm x 15.50mm)	0.394" (10.00mm)

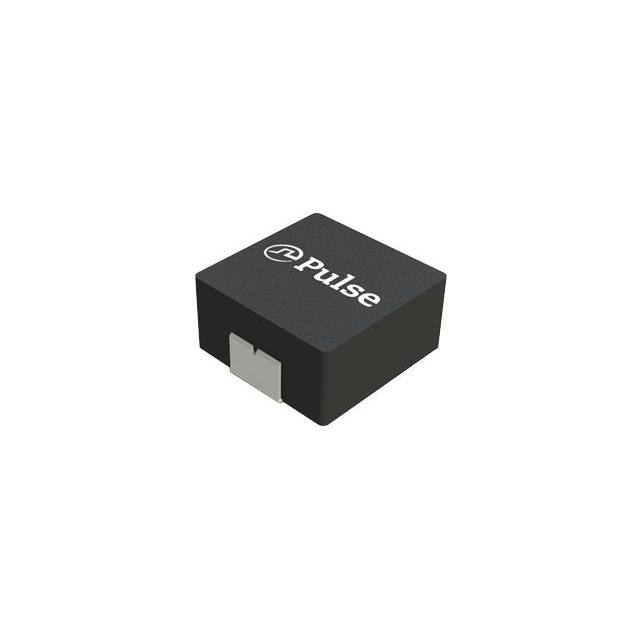

PA4349.102ANLT FIXED IND 1UH 65A 0.95 MOHM SMD Pulse Electronics	3,975	-	RFQ	Datasheet	PA4349.XXXANLT	Nonstandard	Tape & Reel (TR)	Active	Molded	-	1 µH	±20%	65 A	54A	Shielded	0.95mOhm Max	-	23MHz	AEC-Q200	-55°C ~ 155°C	100 kHz	-	Surface Mount	-	0.925" L x 0.866" W (23.50mm x 22.00mm)	0.512" (13.00mm)
AFDI00282811470M06 INDUCTOR CHOKE Pulse Electronics	4,045	-	RFQ	Datasheet	AFDI	Radial	Tape & Reel (TR)	Active	Drum Core, Wirewound	Metal	47 µH	±20%	16 A	16.2A	Shielded	14.7mOhm Max	-	-	AEC-Q200	-50°C ~ 155°C	100 kHz	-	Through Hole	Radial	1.102" L x 1.102" W (28.00mm x 28.00mm)	0.429" (10.90mm)
AFDI00282811100M06 INDUCTOR CHOKE Pulse Electronics	1,753	-	RFQ	Datasheet	AFDI	Radial	Tape & Reel (TR)	Active	Drum Core, Wirewound	Metal	10 µH	±20%	36 A	30A	Shielded	3.64mOhm Max	-	-	AEC-Q200	-50°C ~ 155°C	100 kHz	-	Through Hole	Radial	1.102" L x 1.102" W (28.00mm x 28.00mm)	0.429" (10.90mm)
AFDI00282811150M06 INDUCTOR CHOKE Pulse Electronics	3,628	-	RFQ	Datasheet	AFDI	Radial	Tape & Reel (TR)	Active	Drum Core, Wirewound	Metal	15 µH	±20%	28 A	20A	Shielded	4.76mOhm Max	-	-	AEC-Q200	-50°C ~ 155°C	100 kHz	-	Through Hole	Radial	1.102" L x 1.102" W (28.00mm x 28.00mm)	0.429" (10.90mm)
AFDI00282811220M06 INDUCTOR CHOKE Pulse Electronics	3,884	-	RFQ	Datasheet	AFDI	Radial	Tape & Reel (TR)	Active	Drum Core, Wirewound	Metal	22 µH	±20%	24 A	19A	Shielded	6.85mOhm Max	-	-	AEC-Q200	-50°C ~ 155°C	100 kHz	-	Through Hole	Radial	1.102" L x 1.102" W (28.00mm x 28.00mm)	0.429" (10.90mm)
AFDI00282811330M06 INDUCTOR CHOKE Pulse Electronics	3,535	-	RFQ	Datasheet	AFDI	Radial	Tape & Reel (TR)	Active	Drum Core, Wirewound	Metal	33 µH	±20%	18 A	18A	Shielded	11.3mOhm Max	-	-	AEC-Q200	-50°C ~ 155°C	100 kHz	-	Through Hole	Radial	1.102" L x 1.102" W (28.00mm x 28.00mm)	0.429" (10.90mm)

WINSUN SOURCING SUPPORT

Need Help Sourcing Fixed Inductors?

Send the target part number, manufacturer, specifications and quantity. Winsun (HK) Electronics can assist with availability checks, quotation support, shortage sourcing and alternative-part options when appropriate.

Availability and lead-time support BOM, shortage and alternative sourcing

Send part number & quantity Request a Quote

Need sourcing assistance? Contact Sales

FREQUENTLY ASKED QUESTIONS

Fixed Inductors FAQ

Common questions about filtering, comparing and sourcing Fixed Inductors components.

How can I narrow the Fixed Inductors selection?

Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.

Should I confirm the datasheet before selecting a part?

Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.

Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?

Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.

Do you support BOM, shortage or alternative-part requirements?

Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
