Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE-54039SFIXED IND 53UH 3A 80 MOHM SMD |
3,733 | - |
|
Datasheet | - | Nonstandard | Bulk | Obsolete | Toroidal | - | 53 µH | ±20% | 3 A | - | Shielded | 80mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.940" L x 0.940" W (23.88mm x 23.88mm) | 0.400" (10.16mm) |
|
|
PE-54041SFIXED IND 25UH 3A 40 MOHM SMD |
4,068 | - |
|
Datasheet | - | Nonstandard | Bulk | Obsolete | Toroidal | - | 25 µH | ±20% | 3 A | - | Shielded | 40mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.700" L x 0.670" W (17.78mm x 17.02mm) | 0.390" (9.91mm) |
|
|
PE-54044SFIXED IND 77UH 3A 80 MOHM SMD |
4,140 | - |
|
Datasheet | - | Nonstandard | Bulk | Obsolete | Toroidal | - | 77 µH | ±20% | 3 A | - | Shielded | 80mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.940" L x 0.940" W (23.88mm x 23.88mm) | 0.400" (10.16mm) |
|
|
P0841FIXED IND 22.8UH 4.9A 36 MOHM TH |
4,115 | - |
|
Datasheet | KlipMount™ | Radial, Vertical (Open) | Tube | Obsolete | Toroidal | - | 22.8 µH | ±20% | 4.9 A | - | Shielded | 36mOhm | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.830" L x 0.450" W (21.09mm x 11.43mm) | 0.950" (24.13mm) |
|
|
PE-53803FIXED IND 118UH 200MA 1.8 OHM TH |
1,017 | - |
|
Datasheet | - | Radial, Vertical - Corner Terminals | Bulk | Obsolete | Toroidal | - | 118 µH | ±20% | 200 mA | - | Shielded | 1.8Ohm | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.360" L x 0.360" W (9.14mm x 9.14mm) | 0.310" (7.87mm) |
|
|
PE-53804FIXED IND 79UH 250MA 1.5 OHM TH |
3,741 | - |
|
Datasheet | - | Radial, Vertical - Corner Terminals | Bulk | Obsolete | Toroidal | - | 79 µH | ±20% | 250 mA | - | Shielded | 1.5Ohm | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.360" L x 0.360" W (9.14mm x 9.14mm) | 0.310" (7.87mm) |
|
|
PE-53807FIXED IND 26UH 450MA 620 MOHM TH |
2,655 | - |
|
Datasheet | - | Radial, Vertical - Corner Terminals | Bulk | Obsolete | Toroidal | - | 26 µH | ±20% | 450 mA | - | Shielded | 620mOhm | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.360" L x 0.360" W (9.14mm x 9.14mm) | 0.310" (7.87mm) |
|

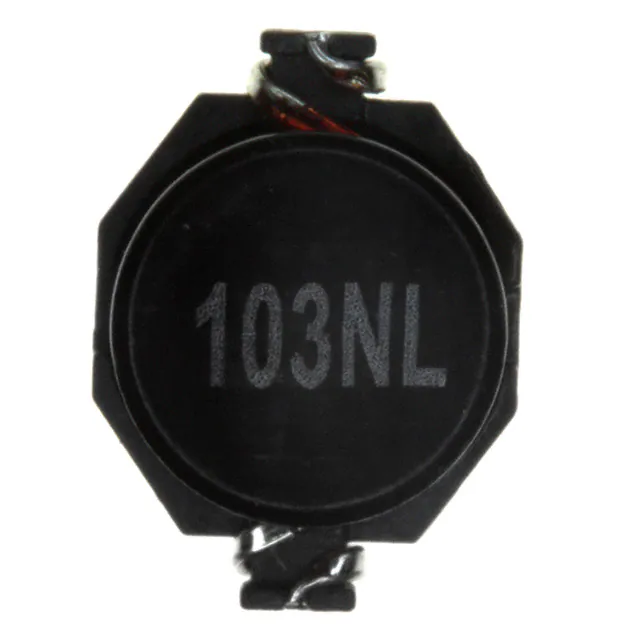

P0751.103TFIXED IND 10UH 3.8A 50 MOHM SMD |
1,051 | - |
|
Datasheet | P0751NL | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 10 µH | ±20% | 3.8 A | 3.8A | Unshielded | 50mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.215" (5.46mm) |
|

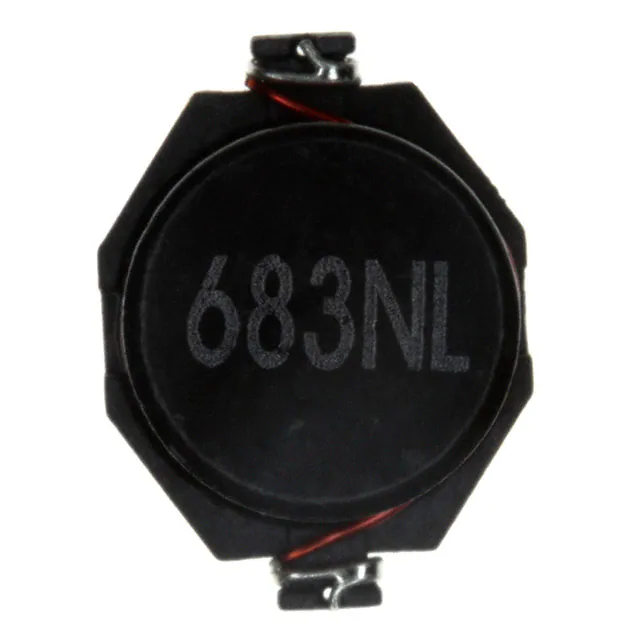

P0751.683TFIXED IND 68UH 1.4A 240 MOHM SMD |
4,293 | - |
|
Datasheet | P0751NL | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 68 µH | ±20% | 1.4 A | 1.4A | Unshielded | 240mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.215" (5.46mm) |
|
|
P0848SFIXED IND 50UH 5A 25 MOHM SMD |
1,312 | - |
|
Datasheet | Bigfoot | Nonstandard | Tube | Obsolete | Toroidal | - | 50 µH | ±20% | 5 A | - | Shielded | 25mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 1.220" L x 1.000" W (30.99mm x 25.40mm) | 0.500" (12.70mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
