Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PGL6380.151HLTIND PWR BEAD TLVR 150NH 85A |
455 | - |
|
Datasheet | PGL6380.XXXHLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 150 nH | ±15% | 77 A | 85A | Unshielded | 0.37mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.236" W (12.00mm x 6.00mm) | 0.453" (11.50mm) |
|
PG0083.472NLTFIXED IND 4.7UH 4.5A 38 MOHM SMD |
1,990 | - |
|
Datasheet | PG0083 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 4.7 µH | ±25% | 4.5 A | 8A | Unshielded | 38mOhm Max | - | - | - | -40°C ~ 95°C | 100 kHz | - | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | 0.157" (4.00mm) |
|
|
PG0083.182NLTFIXED IND 1.8UH 8A 16 MOHM SMD |
1,000 | - |
|
Datasheet | PG0083 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.8 µH | ±25% | 8 A | 13A | Unshielded | 16mOhm Max | - | - | - | -40°C ~ 95°C | 100 kHz | - | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | 0.157" (4.00mm) |
|

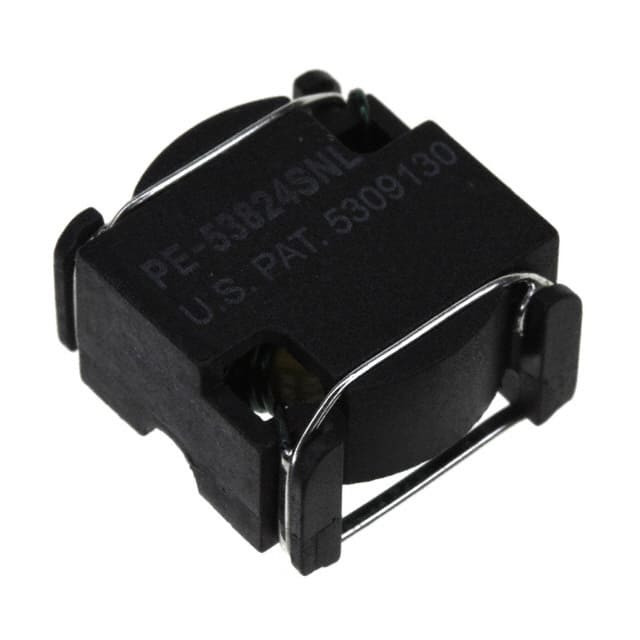

PE-53824SNLFIXED IND 26UH 1.48A 100MOHM SMD |
600 | - |
|
Datasheet | - | Nonstandard | Bulk | Active | Toroidal | - | 26 µH | ±20% | 1.48 A | - | Shielded | 100mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.570" L x 0.565" W (14.48mm x 14.35mm) | 0.360" (9.14mm) |
|
|
PE-92111NLFIXED IND 40UH 4A 27 MOHM TH |
1,985 | - |
|
Datasheet | - | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 40 µH | ±20% | 4 A | - | Unshielded | 27mOhm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 0.850" Dia x 0.410" W (21.59mm x 10.41mm) | - |
|
|
PE-53613NLTFIXED IND 645UH 740MA 1.25OHM SM |
430 | - |
|
Datasheet | SLIC | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 645 µH | - | 740 mA | - | Unshielded | 1.25Ohm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.620" L x 0.600" W (15.75mm x 15.24mm) | 0.390" (9.91mm) |
|
PE-53682NLFIXED IND 4.7UH 10.4A 8.3MOHM SM |
1,699 | - |
|
Datasheet | SLIC | Nonstandard | Tube | Active | Toroidal | - | 4.7 µH | - | 10.4 A | - | Unshielded | 8.3mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.740" L x 0.740" W (18.80mm x 18.80mm) | 0.390" (9.91mm) |
|
PG0926.113NLTFIXED IND 11.5UH 9.5A 12MOHM SMD |
493 | - |
|
Datasheet | PG0926NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 11.5 µH | ±20% | 9.5 A | 10.5A | Unshielded | 12mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.528" L x 0.528" W (13.40mm x 13.40mm) | 0.315" (8.00mm) |
|
|
PE-53813SNLTFIXED IND 55UH 560MA 500MOHM SMD |
304 | - |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 55 µH | ±20% | 560 mA | - | Shielded | 500mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.440" L x 0.435" W (11.18mm x 11.05mm) | 0.360" (9.14mm) |
|
|
PG0926.223NLFIXED IND 22UH 7A 21 MOHM SMD |
1,761 | - |
|
Datasheet | PG0926NL | Nonstandard | Tray | Active | Wirewound | - | 22 µH | ±20% | 7 A | 7.5A | Unshielded | 21mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.528" L x 0.528" W (13.40mm x 13.40mm) | 0.315" (8.00mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
