Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PA4344.823ANLTFIXED IND 82UH 6.5A 83 MOHM SMD |
7,149 | - |
|
Datasheet | PA4344.XXXANLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 82 µH | ±20% | 6.5 A | 8A | Shielded | 83mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.701" L x 0.665" W (17.80mm x 16.90mm) | 0.276" (7.00mm) |
|
|
PA4344.153ANLTFIXED IND 15UH 16A 15.5 MOHM SMD |
282 | - |
|
Datasheet | PA4344.XXXANLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 15 µH | ±20% | 16 A | 16A | Shielded | 15.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.701" L x 0.665" W (17.80mm x 16.90mm) | 0.276" (7.00mm) |
|

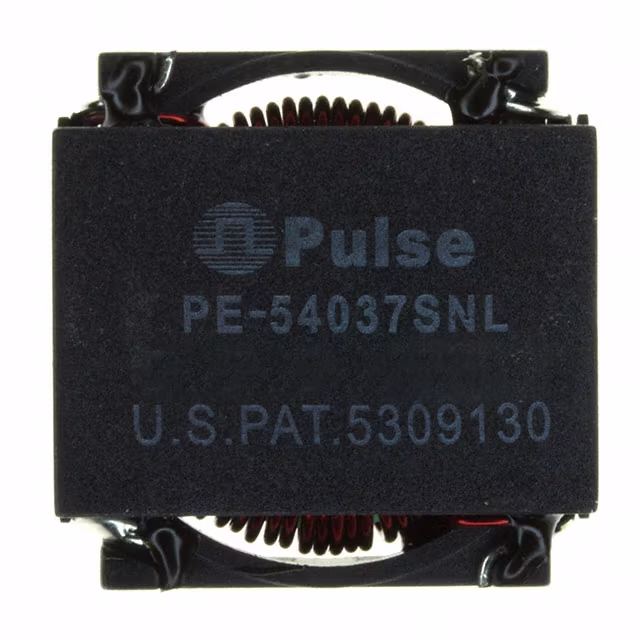

PE-54037SNLFIXED IND 114UH 2.22A 100MOHM SM |
699 | - |
|
Datasheet | - | Nonstandard | Bulk | Active | Toroidal | - | 114 µH | ±20% | 2.22 A | - | Shielded | 100mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.940" L x 0.940" W (23.88mm x 23.88mm) | 0.400" (10.16mm) |
|
PG1083.253NLTFIXED IND 24.5UH 11A 15 MOHM SMD |
597 | - |
|
Datasheet | PG1083NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 24.5 µH | ±20% | 11 A | 14.5A | Unshielded | 15mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.854" L x 0.846" W (21.70mm x 21.50mm) | 0.492" (12.50mm) |
|
|
PG1083.103NLFIXED IND 10.5UH 17.5A 6MOHM SMD |
418 | - |
|
Datasheet | PG1083NL | Nonstandard | Tray | Active | Wirewound | - | 10.5 µH | ±20% | 17.5 A | 22.5A | Unshielded | 6mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.854" L x 0.846" W (21.70mm x 21.50mm) | 0.492" (12.50mm) |
|

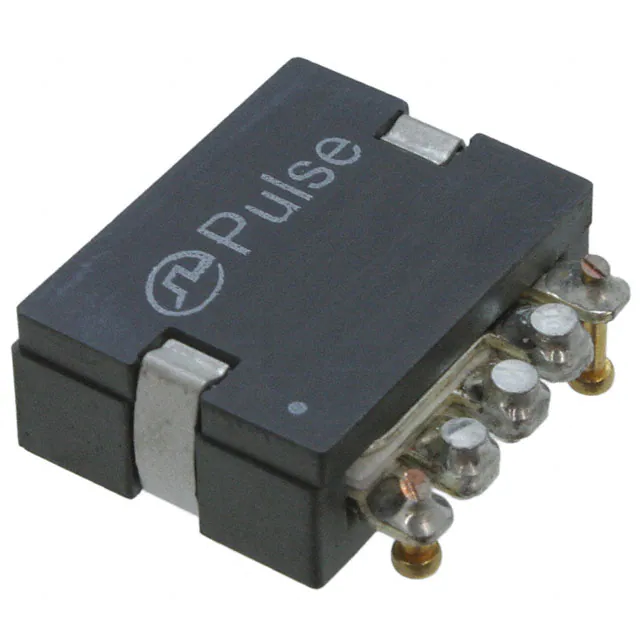

PA1494.362NLTFIXED IND 3.6UH 17A 1.8 MOHM SMD |
8,962 | - |
|
Datasheet | PA1494NL | Nonstandard | Tape & Reel (TR) | Active | Planar | - | 3.6 µH | ±15% | 17 A | 20A | Shielded | 1.8mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.780" L x 0.770" W (19.81mm x 19.56mm) | 0.290" (7.37mm) |
|

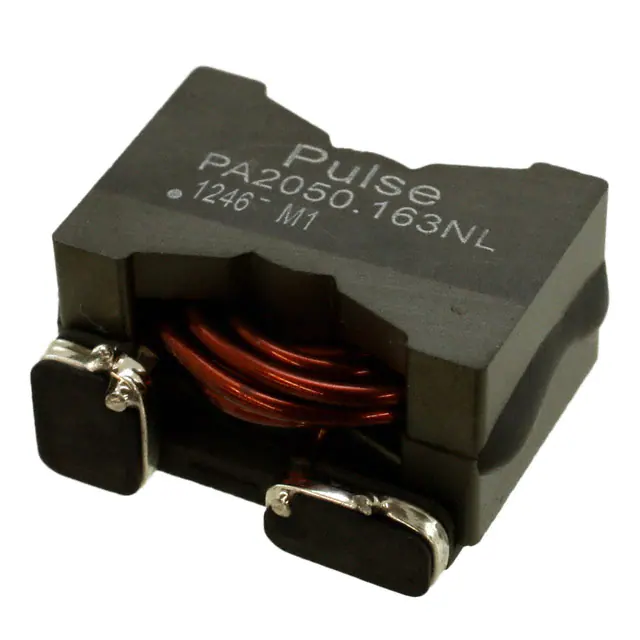

PA2050.163NLFIXED IND 16UH 9.9A 9.1 MOHM SMD |
485 | - |
|
Datasheet | PA2050NL | Nonstandard | Tray | Active | Wirewound | - | 16 µH | ±10% | 9.9 A | 12A | Shielded | 9.1mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.875" L x 0.750" W (22.23mm x 19.05mm) | 0.480" (12.20mm) |
|
PA2050.193NLFIXED IND 19.4UH 8.5A 12.6 MOHM |
357 | - |
|
Datasheet | PA2050NL | Nonstandard | Tray | Active | Wirewound | - | 19.4 µH | ±10% | 8.5 A | 22A | Shielded | 12.6mOhm | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.878" L x 0.750" W (22.30mm x 19.05mm) | 0.480" (12.20mm) |
|
PE-92114KNLFIXED IND 35.6UH 5A 23 MOHM TH |
826 | - |
|
Datasheet | - | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 35.6 µH | ±20% | 5 A | - | Unshielded | 23mOhm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 0.970" L x 0.610" W (24.64mm x 15.50mm) | 1.100" (27.94mm) |
|
|
PM2248.153NLTFIXED IND 15UH 22A 7.5 MOHM SMD |
205 | - |
|
Datasheet | PM2248.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 15 µH | ±20% | 22 A | 25.5A | Unshielded | 7.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.650" L x 0.610" W (16.50mm x 15.50mm) | 0.512" (13.00mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
