Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PA3784.151HLFIXED IND 150NH 67A 0.18MOHM SMD |
4,061 | - |
|
Datasheet | PA3784.XXXHL | Nonstandard | Tray | Active | - | - | 150 nH | ±10% | 67 A | 83A | Unshielded | 0.18mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.315" W (10.00mm x 8.00mm) | 0.315" (8.00mm) |
|

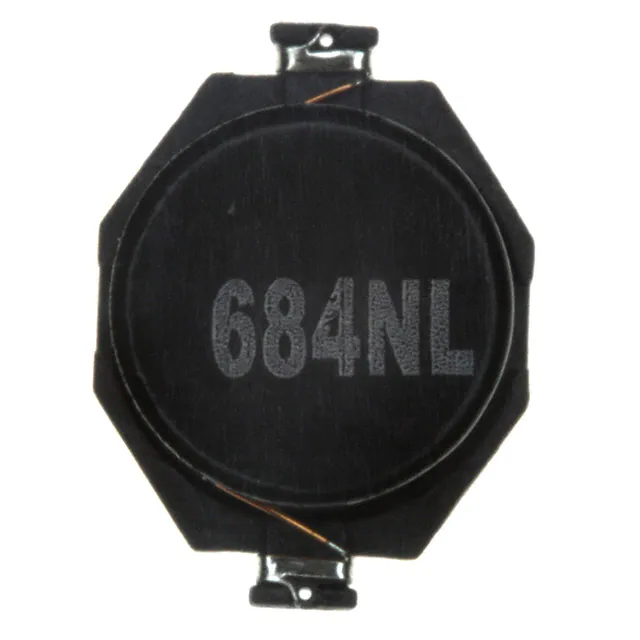

P0752.684NLTFIXED IND 680UH 400MA 2.17OHM SM |
2,993 | - |
|
Datasheet | P0752NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 680 µH | ±20% | 400 mA | 400mA | Unshielded | 2.17Ohm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.215" (5.46mm) |
|

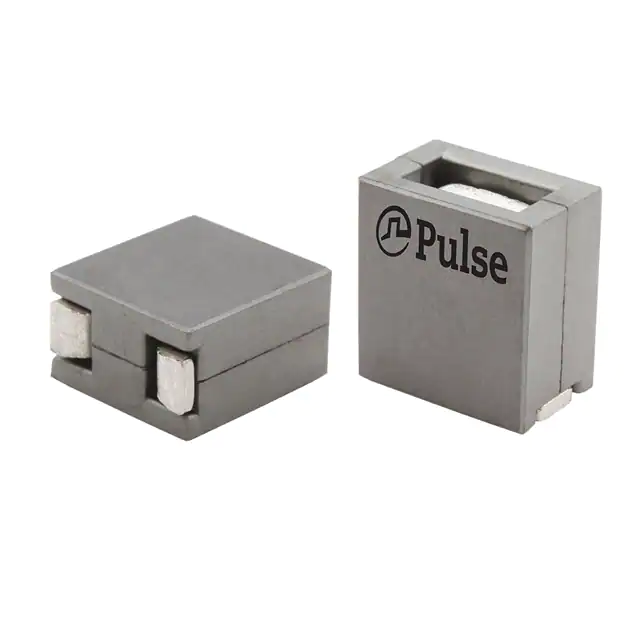

PA5034.331HLTIND PWR BEAD 330NH 40A SMD |
1,785 | - |
|
Datasheet | PA5034.XXXHLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 330 nH | ±15% | 40 A | 40A | Shielded | 0.4mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.276" W (10.00mm x 7.00mm) | 0.394" (10.00mm) |
|

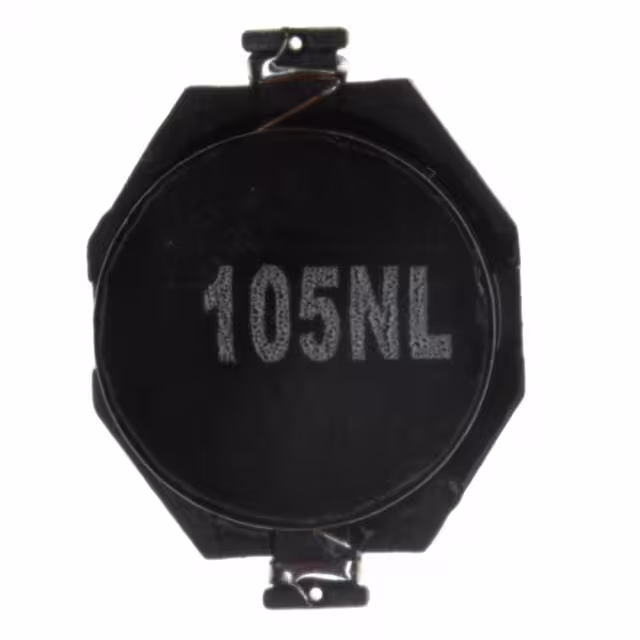

P0752.105NLTFIXED IND 1MH 300MA 3.3 OHM SMD |
4,411 | - |
|
Datasheet | P0752NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 mH | ±20% | 300 mA | 300mA | Unshielded | 3.3Ohm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.215" (5.46mm) |
|
PA5003.182NLTFIXED IND 1.8UH 10.1A 12.7 MOHM |
4,170 | - |
|
Datasheet | PA5003.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 1.8 µH | ±20% | 10.1 A | 12.3A | Shielded | 12.7mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.122" (3.10mm) |
|
PA5041.151HLTFIXED IND 150NH 40A 0.29MOHM SMD |
2,843 | - |
|
Datasheet | PA5041 | Nonstandard | Tape & Reel (TR) | Active | - | - | 150 nH | ±10% | 40 A | 72A | Shielded | 0.29mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.264" W (7.20mm x 6.70mm) | 0.441" (11.20mm) |
|
PA5615.101HLTINDUCTOR PWR BEAD 1000NH 84A |
3,130 | - |
|
Datasheet | PA5615.XXXHLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 100 nH | ±15% | 85 A | 84A | Unshielded | 125mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.236" W (10.00mm x 6.00mm) | 0.335" (8.50mm) |
|
PA4342.153ANLTFIXED IND 15UH 5A 45 MOHM SMD |
701 | - |
|
Datasheet | PA4342.XXXANLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 15 µH | ±20% | 5 A | 6A | Shielded | 45mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
|
PA3784.121HLFIXED IND 120NH 70A 0.18MOHM SMD |
3,572 | - |
|
Datasheet | PA3784.XXXHL | Nonstandard | Tray | Active | - | - | 120 nH | ±10% | 70 A | 94A | Unshielded | 0.18mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.315" W (10.00mm x 8.00mm) | 0.315" (8.00mm) |
|
PA4310.334NLTFIXED IND 330UH 1.8A 941MOHM SMD |
5,797 | - |
|
Datasheet | PA4310.XXXNL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 330 µH | ±20% | 1.8 A | - | Unshielded | 941mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.504" L x 0.504" W (12.80mm x 12.80mm) | 0.315" (8.00mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
