Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PA4320.223NLTFIXED IND 22UH 5.6A 30 MOHM SMD |
1,490 | - |
|
Datasheet | PA4320 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | ±20% | 5.6 A | 6.8A | Shielded | 30mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.402" (10.20mm) |
|
PE-52646NLFIXED IND 220UH 1.5A 420 MOHM TH |
1,283 | - |
|
Datasheet | - | Radial, Vertical - Corner Terminals | Tube | Active | Toroidal | - | 220 µH | ±20% | 1.5 A | - | Unshielded | 420mOhm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 0.710" L x 0.510" W (18.03mm x 12.95mm) | 0.710" (18.03mm) |
|

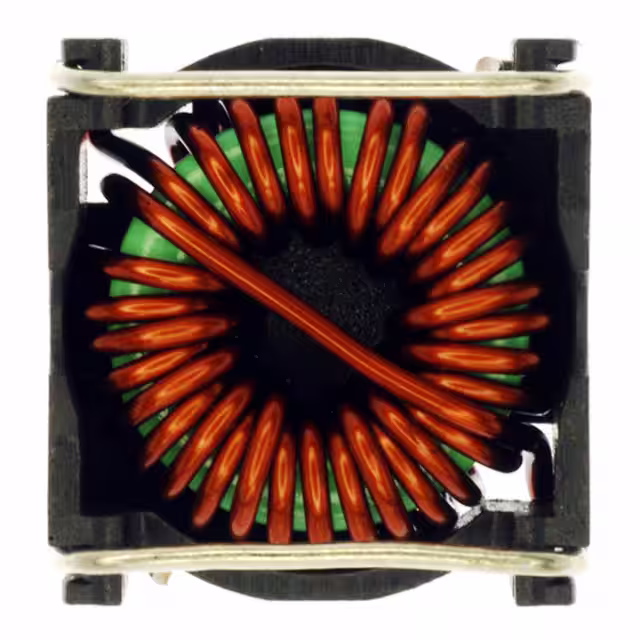

P0846SNLFIXED IND 14.8UH 5A 27 MOHM SMD |
822 | - |
|
Datasheet | LCI-50 | Nonstandard | Tube | Active | Toroidal | - | 14.8 µH | ±20% | 5 A | - | Shielded | 27mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.700" L x 0.670" W (17.78mm x 17.02mm) | 0.390" (9.91mm) |
|

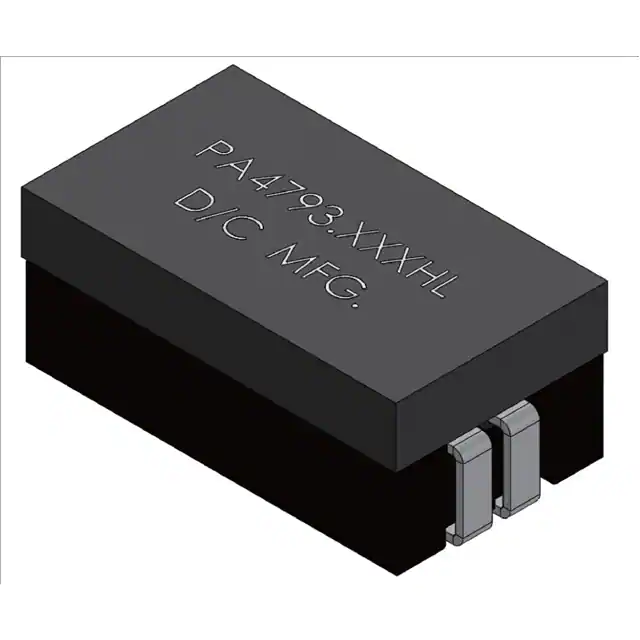

PA4793.501HLTFIXED IND 500NH 40A 1.15MOHM SMD |
1,000 | - |
|
Datasheet | PA4793.XXXHL | Nonstandard | Tape & Reel (TR) | Active | - | - | 500 nH | ±10% | 40 A | 60A | Shielded | 1.15mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | SMD | 0.575" L x 0.327" W (14.60mm x 8.30mm) | 0.260" (6.60mm) |
|
PA5300.221HLTIND PWR BEAD 220NH 80A SMD |
786 | - |
|
Datasheet | PA5300.XXXHLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 220 nH | ±15% | 80 A | 80A | Shielded | 0.1mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.610" (15.50mm) |
|
PE-53361NLFIXED IND 530NH 23.8A 3 MOHM SMD |
875 | - |
|
Datasheet | SLIC | Nonstandard | Tube | Active | Toroidal | - | 530 nH | - | 23.8 A | - | Unshielded | 3mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.865" L x 0.715" W (21.97mm x 18.16mm) | 0.390" (9.91mm) |
|
P0846SNLTFIXED IND 15UH 5A 27 MOHM SMD |
707 | - |
|
Datasheet | LCI-50 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 15 µH | ±20% | 5 A | - | Shielded | 27mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.700" L x 0.670" W (17.78mm x 17.02mm) | 0.390" (9.91mm) |
|
PG0426.101NLTFIXED IND 100NH 34.5A 1.5MOHM SM |
5,265 | - |
|
Datasheet | PG0426NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 100 nH | ±20% | 34.5 A | 60A | Shielded | 1.5mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.295" L x 0.276" W (7.50mm x 7.00mm) | 0.126" (3.20mm) |
|
P0438NLTFIXED IND 12.2UH 500MA 161 MOHM |
8,563 | - |
|
Datasheet | Ros 1 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 12.2 µH | ±15% | 500 mA | - | Shielded | 161mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.335" L x 0.225" W (8.51mm x 5.72mm) | 0.125" (3.18mm) |
|
PE-52645NLFIXED IND 150UH 1.7A 420 MOHM TH |
617 | - |
|
Datasheet | - | Radial, Vertical - Corner Terminals | Tube | Active | Toroidal | - | 150 µH | ±20% | 1.7 A | - | Unshielded | 420mOhm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 0.710" L x 0.510" W (18.03mm x 12.95mm) | 0.710" (18.03mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
