Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

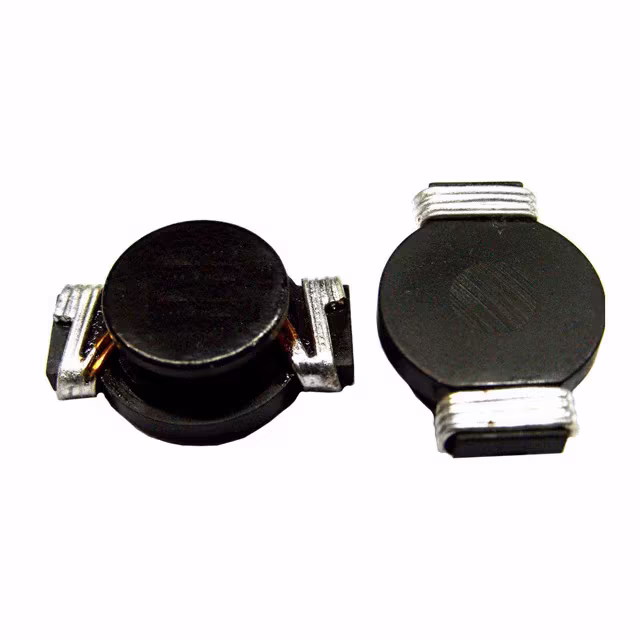

SC5022FH-4R7FIXED IND 4.7UH 8A 14 MOHM SMD |
3,370 | - |
|
Datasheet | SC5022FH | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 4.7 µH | ±30% | 8 A | 13A | Unshielded | 14mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.880" L x 0.640" W (22.35mm x 16.26mm) | 0.315" (8.00mm) |
|
|
SC5022FH-6R8FIXED IND 6.8UH 6.5A 18 MOHM SMD |
1,010 | - |
|
Datasheet | SC5022FH | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 6.8 µH | ±20% | 6.5 A | 12A | Unshielded | 18mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.880" L x 0.640" W (22.35mm x 16.26mm) | 0.315" (8.00mm) |
|
|
SC5022FH-R47FIXED IND 470NH 20A 2 MOHM SMD |
1,943 | - |
|
Datasheet | SC5022FH | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 470 nH | ±30% | 20 A | 40A | Unshielded | 2mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.880" L x 0.640" W (22.35mm x 16.26mm) | 0.315" (8.00mm) |
|
|
SC5022FH-R82FIXED IND 820NH 17A 2.6 MOHM SMD |
1,683 | - |
|
Datasheet | SC5022FH | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 820 nH | ±30% | 17 A | 30A | Unshielded | 2.6mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.880" L x 0.640" W (22.35mm x 16.26mm) | 0.315" (8.00mm) |
|

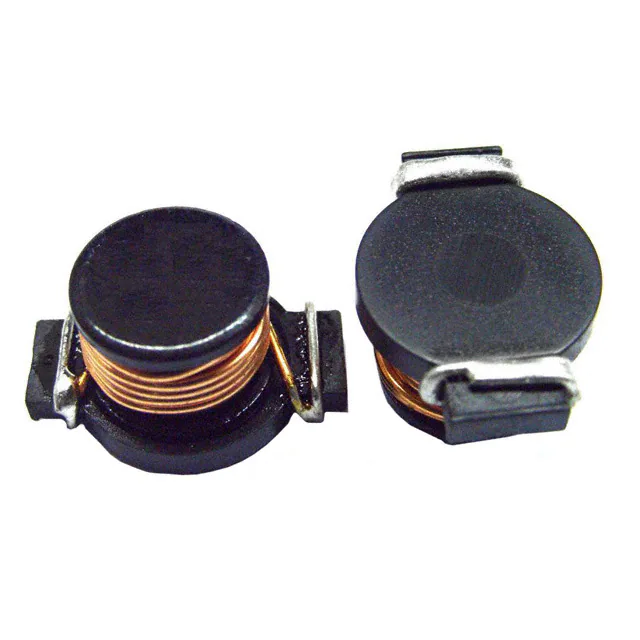

SC5040FH-120FIXED IND 12UH 8.5A 15.5MOHM SMD |
1,585 | - |
|
Datasheet | SC5040FH | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 12 µH | ±30% | 8.5 A | 15.9A | Unshielded | 15.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.880" L x 0.640" W (22.35mm x 16.26mm) | 0.484" (12.30mm) |
|
|
SC5040FH-2R8FIXED IND 2.8UH 16A 5.2 MOHM SMD |
1,880 | - |
|
Datasheet | SC5040FH | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 2.8 µH | ±30% | 16 A | 33.4A | Unshielded | 5.2mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.880" L x 0.640" W (22.35mm x 16.26mm) | 0.484" (12.30mm) |
|
|
SC5040FH-330FIXED IND 33UH 4.4A 37 MOHM SMD |
3,643 | - |
|
Datasheet | SC5040FH | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 33 µH | ±30% | 4.4 A | 9.6A | Unshielded | 37mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.880" L x 0.640" W (22.35mm x 16.26mm) | 0.484" (12.30mm) |
|
|
SC5040FH-3R9FIXED IND 3.9UH 14A 6 MOHM SMD |
3,574 | - |
|
Datasheet | SC5040FH | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 3.9 µH | ±30% | 14 A | 26.8A | Unshielded | 6mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.880" L x 0.640" W (22.35mm x 16.26mm) | 0.484" (12.30mm) |
|
|
SC5040FH-680FIXED IND 68UH 3.4A 67 MOHM SMD |
1,945 | - |
|
Datasheet | SC5040FH | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 68 µH | ±30% | 3.4 A | 6.7A | Unshielded | 67mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.880" L x 0.640" W (22.35mm x 16.26mm) | 0.484" (12.30mm) |
|
|
SC5040FH-6R8FIXED IND 6.8UH 11.5A 9 MOHM SMD |
2,001 | - |
|
Datasheet | SC5040FH | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 6.8 µH | ±30% | 11.5 A | 21.5A | Unshielded | 9mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.880" L x 0.640" W (22.35mm x 16.26mm) | 0.484" (12.30mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
