Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SPFC-RM12-100PWR FACTOR COR RM12 PCB 100W |
630 | - |
|
Datasheet | SPFC | Radial, Vertical, 14 Leads | Tray | Active | Wirewound | - | 450 µH | ±10% | 1.2 A | 5.6A | Shielded | 330mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | Radial, Vertical, 14 Leads | 1.575" L x 1.614" W (40.00mm x 41.00mm) | 1.024" (26.00mm) |
|
|
SPFC-RM10-50PWR FACTOR COR RM10 PCB 50W |
630 | - |
|
Datasheet | SPFC | Radial, Vertical, 14 Leads | Tray | Active | Wirewound | - | 750 µH | ±10% | 900 mA | 3.9A | Shielded | 720mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | Radial, Vertical, 14 Leads | 1.220" L x 1.142" W (31.00mm x 29.00mm) | 0.787" (20.00mm) |
|
|
SPFC-RM14-200PWR FACTOR COR RM14 PCB 200W |
630 | - |
|
Datasheet | SPFC | Radial, Vertical, 16 Leads | Tray | Active | Wirewound | - | 225 µH | ±10% | 2.4 A | 12.4A | Shielded | 87mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | Radial, Vertical, 16 Leads | 1.693" L x 1.890" W (43.00mm x 48.00mm) | 1.260" (32.00mm) |
|
SCRH127-101FIXED IND 100UH 1.8A 220MOHM SMD |
1,400 | - |
|
Datasheet | SCRH127 | Nonstandard | Tape & Reel (TR) | Active | - | - | 100 µH | ±20% | 1.8 A | 1.7A | Shielded | 220mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|

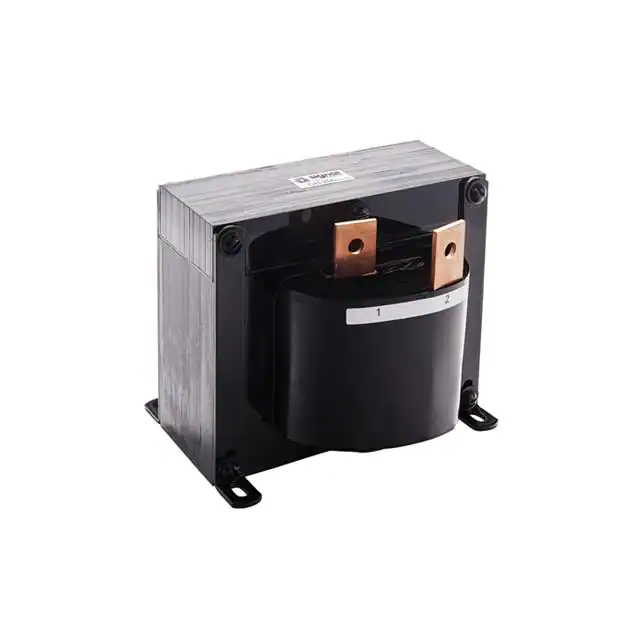

CH-200FIXED IND 300UH 200A 1 MOHM CHAS |
3,629 | - |
|
Datasheet | - | Nonstandard | Box | Active | - | - | 300 µH | - | 200 A | - | Unshielded | 1mOhm | - | - | - | - | - | - | Chassis Mount | - | 7.500" L x 7.500" W (190.50mm x 190.50mm) | 6.252" (158.80mm) |
|

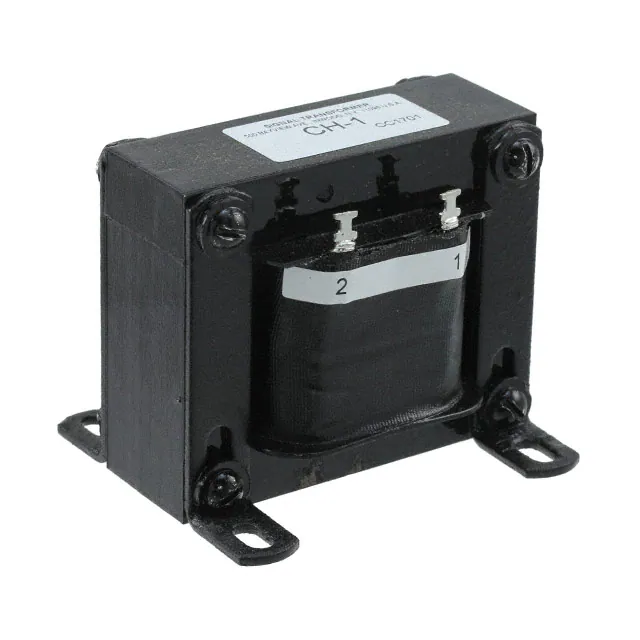

CH-1FIXED IND 100MH 1A 1.5 OHM CHASS |
2,372 | - |
|
Datasheet | - | Nonstandard | Box | Active | - | - | 100 mH | - | 1 A | - | Unshielded | 1.5Ohm | - | - | - | - | - | - | Chassis Mount | - | 3.000" L x 2.500" W (76.20mm x 63.50mm) | 2.500" (63.50mm) |
|

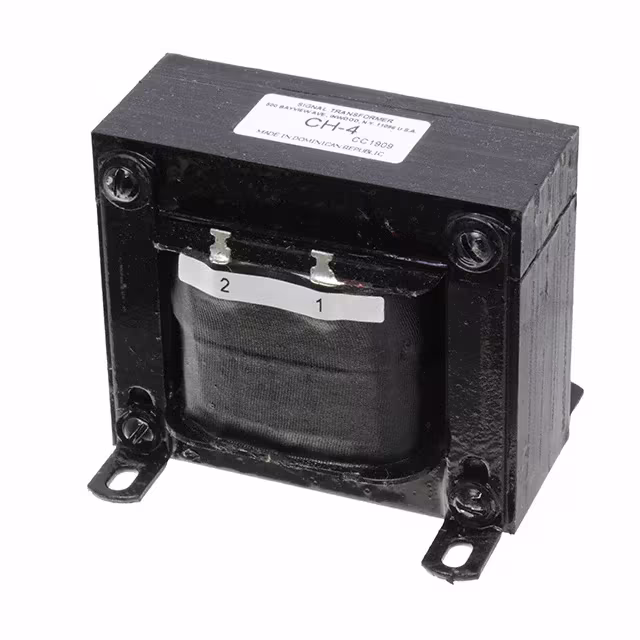

CH-4FIXED IND 70MH 4A 600 MOHM CHASS |
3,359 | - |
|
Datasheet | - | Nonstandard | Box | Active | - | - | 70 mH | - | 4 A | - | Unshielded | 600mOhm | - | - | - | - | - | - | Chassis Mount | - | 3.752" L x 3.126" W (95.30mm x 79.40mm) | 3.252" (82.60mm) |
|

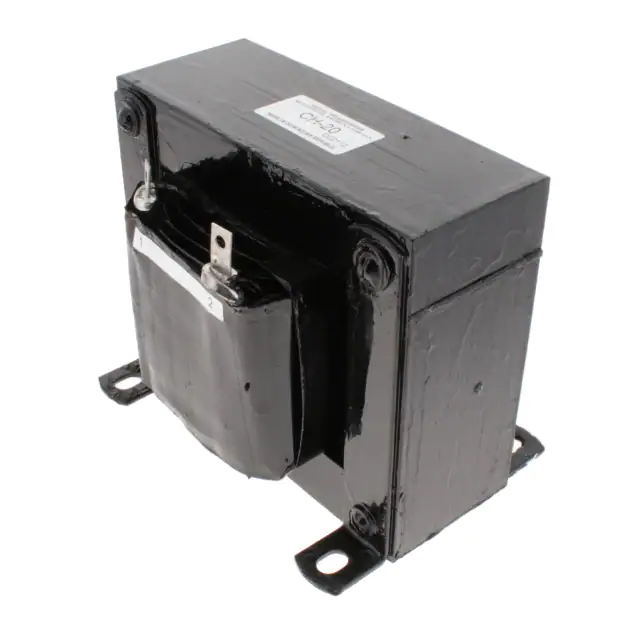

CH-20FIXED IND 7MH 20A 50 MOHM CHASS |
1,567 | - |
|
Datasheet | - | Nonstandard | Box | Active | - | - | 7 mH | - | 20 A | - | Unshielded | 50mOhm | - | - | - | - | - | - | Chassis Mount | - | 5.252" L x 4.000" W (133.40mm x 101.60mm) | 4.437" (112.70mm) |
|

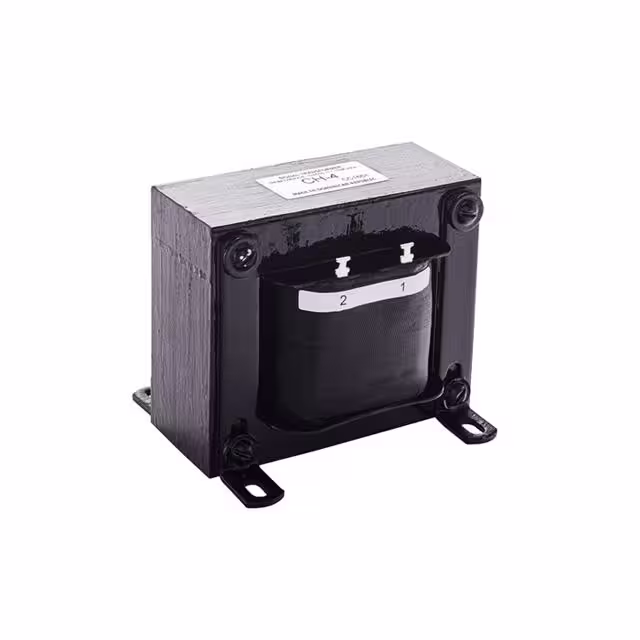

CH-6FIXED IND 40MH 6A 400 MOHM CHASS |
2,273 | - |
|
Datasheet | - | Nonstandard | Box | Active | - | - | 40 mH | - | 6 A | - | Unshielded | 400mOhm | - | - | - | - | - | - | Chassis Mount | - | 3.752" L x 3.626" W (95.30mm x 92.10mm) | 3.252" (82.60mm) |
|
SCRH125-220FIXED IND 22UH 4A 36 MOHM SMD |
1,223 | - |
|
Datasheet | SCRH125 | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 4 A | 2.8A | Shielded | 36mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
