Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SFAPI-470K-UL-TRFIXED IND 47UH 804MA AXIAL |
1,000 | - |
|
Datasheet | SFAPI | Axial | Tape & Reel (TR) | Active | - | Ferrite | 47 µH | ±10% | 804 mA | - | Unshielded | 109mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.260" Dia x 0.650" L (6.60mm x 16.50mm) | - |
|
|
SFAPI-472K-UL-TRFIXED IND 4.7MH 100MA AXIAL |
1,000 | - |
|
Datasheet | SFAPI | Axial | Tape & Reel (TR) | Active | - | Ferrite | 4.7 mH | ±10% | 100 mA | - | Unshielded | 10.5Ohm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.260" Dia x 0.650" L (6.60mm x 16.50mm) | - |
|
|
SFAPI-332K-UL-TRFIXED IND 3.3MH 125 MA AXIAL |
1,000 | - |
|
Datasheet | SFAPI | Axial | Tape & Reel (TR) | Active | - | Ferrite | 3.3 mH | ±10% | 125 mA | - | Unshielded | 6.56Ohm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.260" Dia x 0.650" L (6.60mm x 16.50mm) | - |
|
HCTI-100-7.0FIXED IND 100UH 7A 37 MOHM TH |
4,247 | - |
|
Datasheet | HCTI | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 100 µH | ±15% | 7 A | - | Shielded | 37mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|

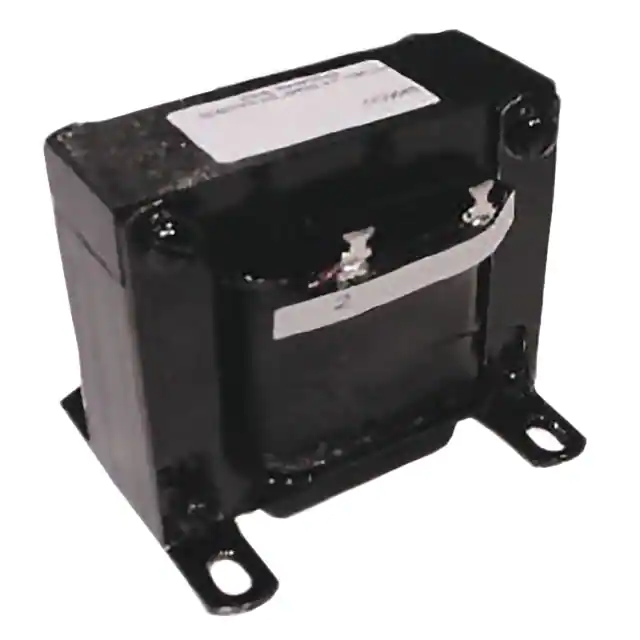

CH-2FIXED IND 70MH 2A 900 MOHM CHASS |
2,088 | - |
|
Datasheet | - | Nonstandard | Box | Active | - | - | 70 mH | - | 2 A | - | Unshielded | 900mOhm | - | - | - | - | - | - | Chassis Mount | - | 3.374" L x 2.752" W (85.70mm x 69.90mm) | 2.874" (73.00mm) |
|

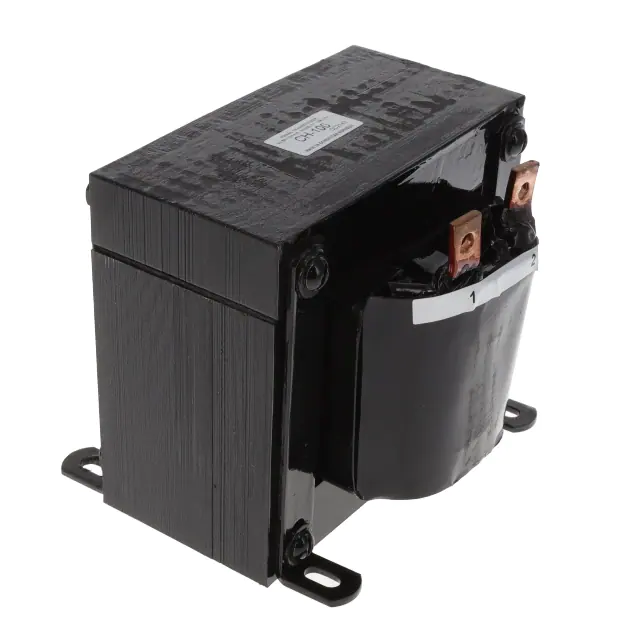

CH-100FIXED IND 500UH 100A 5 MOHM CHAS |
2,327 | - |
|
Datasheet | - | Nonstandard | Box | Active | - | - | 500 µH | - | 100 A | - | Unshielded | 5mOhm | - | - | - | - | - | - | Chassis Mount | - | 6.374" L x 6.252" W (161.90mm x 158.80mm) | 5.374" (136.50mm) |
|
|
HCTI-560-3.6FIXED IND 560UH 3.6A 140 MOHM TH |
3,400 | - |
|
Datasheet | HCTI | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 560 µH | ±15% | 3.6 A | - | Shielded | 140mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
|
HCTI-820-2.6FIXED IND 820UH 2.6A 270 MOHM TH |
1,020 | - |
|
Datasheet | HCTI | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 820 µH | ±15% | 2.6 A | - | Shielded | 270mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|

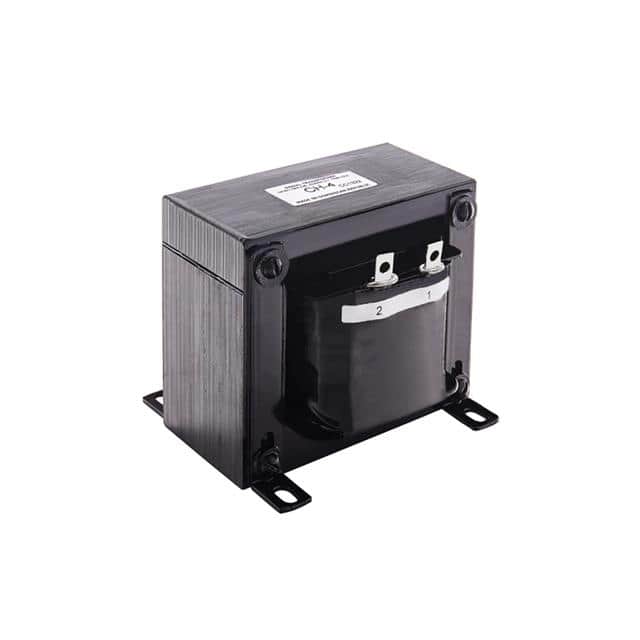

CH-8FIXED IND 30MH 8A 300 MOHM CHASS |
1,148 | - |
|
Datasheet | - | Nonstandard | Box | Active | - | - | 30 mH | - | 8 A | - | Unshielded | 300mOhm | - | - | - | - | - | - | Chassis Mount | - | 4.126" L x 3.626" W (104.80mm x 92.10mm) | 3.500" (88.90mm) |
|
CH-25FIXED IND 5MH 25A 25 MOHM CHASS |
3,488 | - |
|
Datasheet | - | Nonstandard | Box | Active | - | - | 5 mH | - | 25 A | - | Unshielded | 25mOhm | - | - | - | - | - | - | Chassis Mount | - | 5.252" L x 4.752" W (133.40mm x 120.70mm) | 4.437" (112.70mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
