Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
55081013400FIXED IND 100NH 350MA 260MOHM SM |
1,405 | - |
|
Datasheet | 5508 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 100 nH | ±5% | 350 mA | - | Unshielded | 260mOhm Max | 40 @ 150MHz | 1.31GHz | - | -55°C ~ 125°C | 150 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.087" L x 0.055" W (2.20mm x 1.40mm) | 0.056" (1.42mm) |
|
CDRH4D18NP-4R7NCFIXED IND 4.7UH 840MA 162MOHM SM |
5,959 | - |
|
Datasheet | CDRH4D18 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±30% | 840 mA | - | Shielded | 162mOhm Max | - | - | - | -40°C ~ 100°C | 7.96 MHz | - | Surface Mount | - | 0.185" L x 0.185" W (4.70mm x 4.70mm) | 0.079" (2.00mm) |
|
CDRH2D11/HPNP-4R7NCFIXED IND 4.7UH 850MA 238MOHM SM |
1,453 | - |
|
Datasheet | CDRH2D11/HP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±30% | 850 mA | 750mA | Shielded | 238mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.043" (1.10mm) |
|

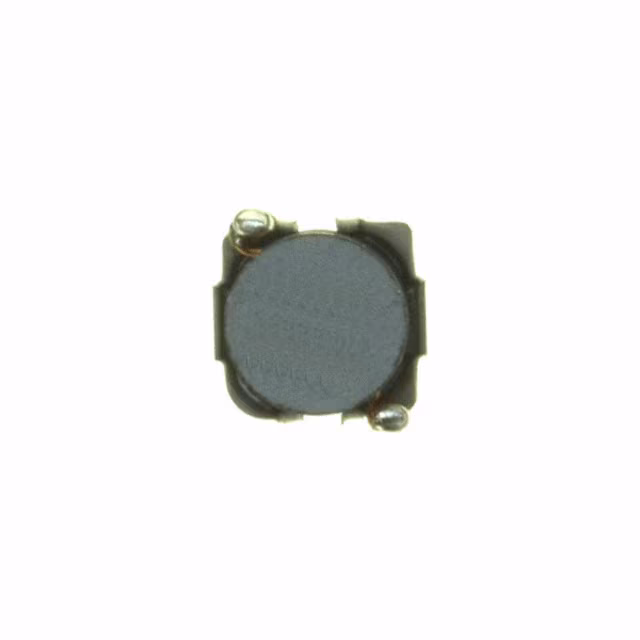

CDH53NP-101JCFIXED IND 100UH 370MA 1.57OHM SM |
3,327 | - |
|
Datasheet | CDH53 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±5% | 370 mA | - | Unshielded | 1.57Ohm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.236" L x 0.205" W (6.00mm x 5.20mm) | 0.126" (3.20mm) |
|
CDRH6D28NP-120NCFIXED IND 12UH 1.55A 70 MOHM SMD |
10,249 | - |
|
Datasheet | CDRH6D28 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 12 µH | ±30% | 1.55 A | - | Shielded | 70mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.264" L x 0.264" W (6.70mm x 6.70mm) | 0.118" (3.00mm) |
|

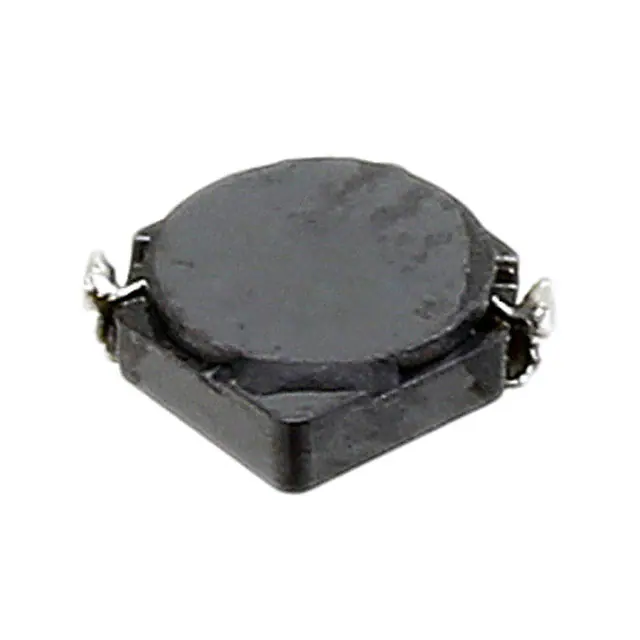

CDRH3D11HPNP-100NCFIXED IND 10UH 600MA 413MOHM SMD |
4,802 | - |
|
Datasheet | CDRH3D11/HP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±25% | 600 mA | 800mA | Shielded | 413mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.047" (1.20mm) |
|

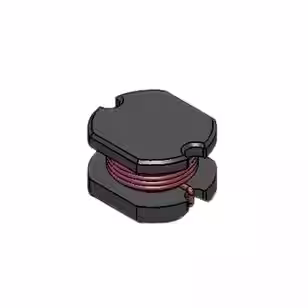

CD30D22HF-100MCFIXED IND 10UH 950MA 313MOHM SMD |
2,667 | - |
|
Datasheet | CD30D22 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 950 mA | 1.02A | Unshielded | 313mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.138" L x 0.118" W (3.50mm x 3.00mm) | 0.098" (2.50mm) |
|
RCH875NP-331KFIXED IND 330UH 300MA 1.05OHM TH |
6,790 | - |
|
Datasheet | RCH-875 | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 300 mA | 460mA | Unshielded | 1.05Ohm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.295" (7.50mm) |
|

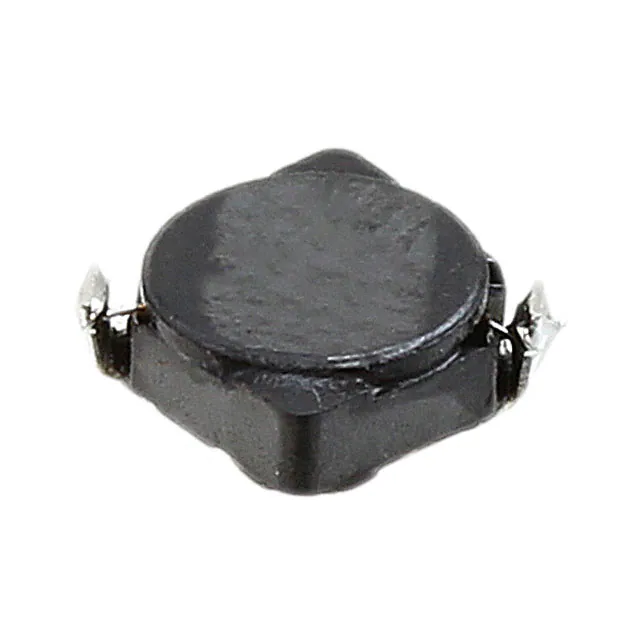

CDRH4D18NP-330NCFIXED IND 33UH 320MA 694MOHM SMD |
3,973 | - |
|
Datasheet | CDRH4D18 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 33 µH | ±30% | 320 mA | - | Shielded | 694mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.185" L x 0.185" W (4.70mm x 4.70mm) | 0.079" (2.00mm) |
|
RCH895NP-470KFIXED IND 47UH 990MA 100 MOHM TH |
2,417 | - |
|
Datasheet | RCH-895 | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 990 mA | 1.3A | Unshielded | 100mOhm Max | - | - | - | -40°C ~ 100°C | 2.52 MHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.374" (9.50mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
