Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DEP1016NP-150PBINDUCTOR |
1,056 | - |
|
Datasheet | DEP1016 | Radial | Box | Active | Molded | Ferrite | 15 µH | ±25% | 11.5 A | 8.7A | Shielded | 9.1mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | Radial | 0.571" L x 0.398" W (14.50mm x 10.10mm) | 0.630" (16.00mm) |
|
|
DEP1016NP-100PBINDUCTOR |
3,931 | - |
|
Datasheet | DEP1016 | Radial | Box | Active | Molded | Ferrite | 10 µH | ±25% | 11.5 A | 13.4A | Shielded | 9.1mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | Radial | 0.571" L x 0.398" W (14.50mm x 10.10mm) | 0.630" (16.00mm) |
|
|
DEP1016NP-180PBINDUCTOR |
3,484 | - |
|
Datasheet | DEP1016 | Radial | Box | Active | Molded | Ferrite | 18 µH | ±25% | 9.8 A | 7.9A | Shielded | 10.1mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | Radial | 0.571" L x 0.398" W (14.50mm x 10.10mm) | 0.630" (16.00mm) |
|
|
DEP1016NP-270PBINDUCTOR |
4,629 | - |
|
Datasheet | DEP1016 | Radial | Box | Active | Molded | Ferrite | 27 µH | ±25% | 7.5 A | 6.6A | Shielded | 13.8mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | Radial | 0.571" L x 0.398" W (14.50mm x 10.10mm) | 0.630" (16.00mm) |
|
|
CEP1110-PS10-200FIXED INDUCTOR SMD |
2,652 | - |
|
Datasheet | - | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | Unshielded | - | - | - | - | - | - | - | - | - | - | - |
|
|
CDEP1810NP-8R2MC-333FIXED IND 8.2UH 19.5A 2.42 MOHM |
3,510 | - |
|
Datasheet | CDEP1810 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 8.2 µH | ±20% | 19.5 A | 10.8A | Shielded | 2.42mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.866" L x 0.740" W (22.00mm x 18.80mm) | 0.433" (11.00mm) |
|

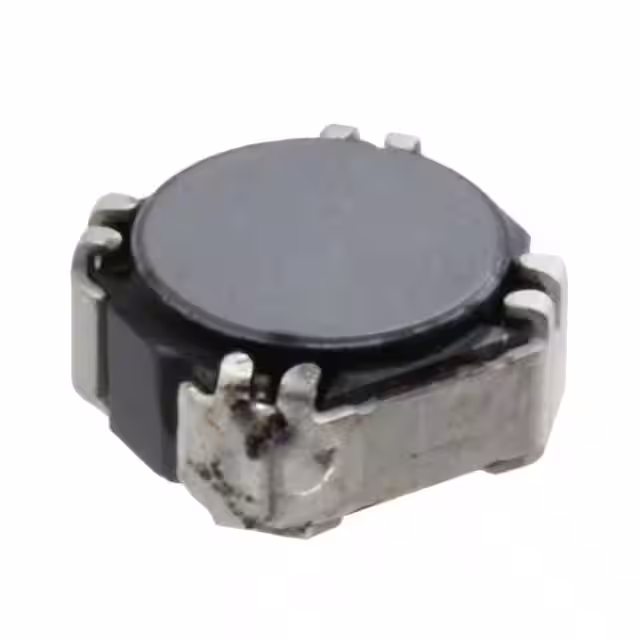

CDRH8D38/ANP-150MCFIXED IND 15UH 1.41A 70 MOHM SMD |
2,316 | - |
|
Datasheet | CDRH8D38/A | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 15 µH | ±20% | 1.41 A | - | Shielded | 70mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|
|
CDRH8D38/ANP-220MCFIXED IND 22UH 1.24A 100MOHM SMD |
4,191 | - |
|
Datasheet | CDRH8D38/A | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±20% | 1.24 A | - | Shielded | 100mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|

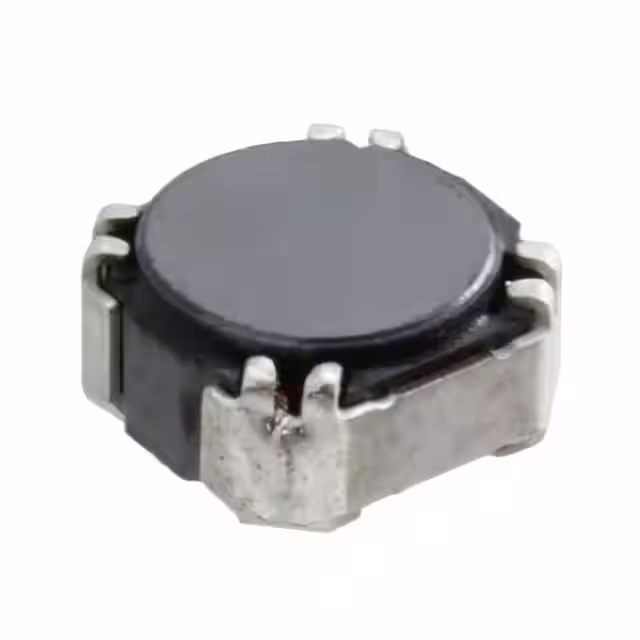

CDRH8D38/ANP-470MCFIXED IND 47UH 780MA 225MOHM SMD |
1,005 | - |
|
Datasheet | CDRH8D38/A | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 47 µH | ±20% | 780 mA | - | Shielded | 225mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|
|
CDH80D48NP-472KCFIXED IND 4.7MH 125MA 17.2OHM SM |
4,245 | - |
|
Datasheet | CDH80D48 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 mH | ±10% | 125 mA | 155mA | Unshielded | 17.2Ohm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.331" L x 0.315" W (8.40mm x 8.00mm) | 0.197" (5.00mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
