Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
54068203400FIXED IND 82NH 220MA 590MOHM SMD |
4,633 | - |
|
Datasheet | 5406 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 82 nH | ±5% | 220 mA | - | Unshielded | 590mOhm Max | 35 @ 150MHz | 1.7GHz | - | -55°C ~ 125°C | 150 MHz | - | Surface Mount | 0605 (1712 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
0520CDMCDS-R33MCFIXED IND 330NH 7.9A 8 MOHM SMD |
1,476 | - |
|
Datasheet | 0520CDMC/DS | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 330 nH | ±20% | 7.9 A | 14A | Shielded | 8mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.217" L x 0.205" W (5.50mm x 5.20mm) | 0.079" (2.00mm) |
|
0520CDMCDS-R68MCFIXED IND 680NH 6.6A 13 MOHM SMD |
2,940 | - |
|
Datasheet | 0520CDMC/DS | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 680 nH | ±20% | 6.6 A | 10A | Shielded | 13mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.217" L x 0.205" W (5.50mm x 5.20mm) | 0.079" (2.00mm) |
|
|
0520CDMCDS-2R2MCFIXED IND 2.2UH 4.1A 30 MOHM SMD |
1,272 | - |
|
Datasheet | 0520CDMC/DS | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 2.2 µH | ±20% | 4.1 A | 6A | Shielded | 30mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.217" L x 0.205" W (5.50mm x 5.20mm) | 0.079" (2.00mm) |
|
0520CDMCDS-3R3MCFIXED IND 3.3UH 3.6A 50 MOHM SMD |
4,539 | - |
|
Datasheet | 0520CDMC/DS | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 3.3 µH | ±20% | 3.6 A | 4.9A | Shielded | 50mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.217" L x 0.205" W (5.50mm x 5.20mm) | 0.079" (2.00mm) |
|
|
0520CDMCDS-4R7MCFIXED IND 4.7UH 2.8A 65 MOHM SMD |
1,880 | - |
|
Datasheet | 0520CDMC/DS | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 4.7 µH | ±20% | 2.8 A | 4.4A | Shielded | 65mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.217" L x 0.205" W (5.50mm x 5.20mm) | 0.079" (2.00mm) |
|

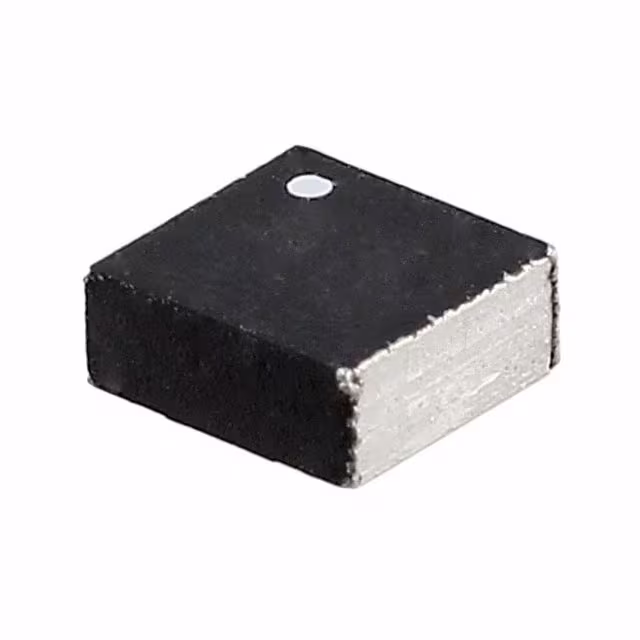

0420CDMCDS-6R8MCFIXED IND 6.8UH 2.6A 91 MOHM SMD |
3,065 | - |
|
Datasheet | 0420CDMC/DS | 1816 (4540 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 6.8 µH | ±20% | 2.6 A | 2.8A | Shielded | 91mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.177" L x 0.161" W (4.50mm x 4.10mm) | 0.079" (2.00mm) |
|
|
0420CDMCDS-R33MCFIXED IND 330NH 8.9A 6 MOHM SMD |
4,714 | - |
|
Datasheet | 0420CDMC/DS | 1816 (4540 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 330 nH | ±20% | 8.9 A | 12.6A | Shielded | 6mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.177" L x 0.161" W (4.50mm x 4.10mm) | 0.079" (2.00mm) |
|
|
0420CDMCDS-2R2MCFIXED IND 2.2UH 4.7A 35 MOHM SMD |
1,372 | - |
|
Datasheet | 0420CDMC/DS | 1816 (4540 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 2.2 µH | ±20% | 4.7 A | 4.5A | Shielded | 35mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.177" L x 0.161" W (4.50mm x 4.10mm) | 0.079" (2.00mm) |
|
|
0420CDMCDS-R47MCFIXED IND 470NH 8.1A 8.2MOHM SMD |
3,721 | - |
|
Datasheet | 0420CDMC/DS | 1816 (4540 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 470 nH | ±20% | 8.1 A | 11A | Shielded | 8.2mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.177" L x 0.161" W (4.50mm x 4.10mm) | 0.079" (2.00mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
