Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

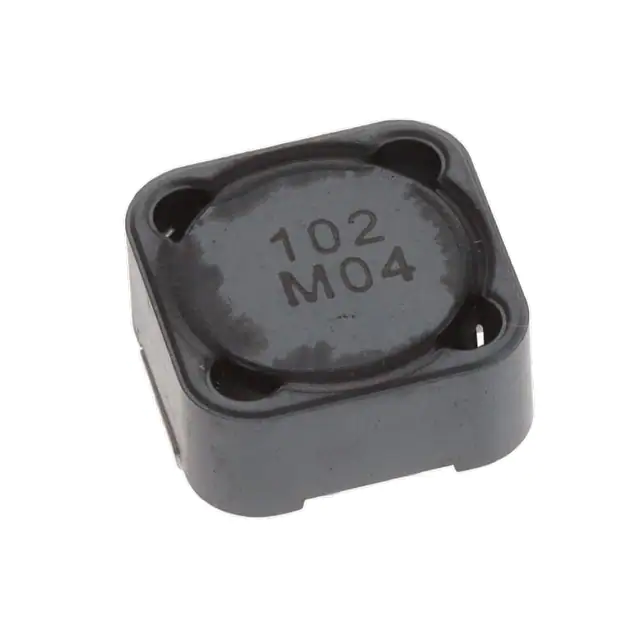

CDRH125L125NP-102MCFIXED IND 1MH 500MA 1.9MOHM SMD |
235 | - |
|
Datasheet | CDRH125/L125 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1 mH | ±20% | 500 mA | 520mA | Shielded | 1.9Ohm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
CDRH125L125NP-680MCFIXED IND 68UH 2.05A 131MOHM SMD |
224 | - |
|
Datasheet | CDRH125/L125 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 68 µH | ±20% | 2.05 A | 2.02A | Shielded | 131mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
CDRH125L125NP-2R7NCFIXED IND 2.7UH 7.4A 12.8MOHM SM |
166 | - |
|
Datasheet | CDRH125/L125 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 2.7 µH | ±30% | 7.4 A | 10.2A | Shielded | 12.8mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
CDRH50D28BT150NP-100MCFIXED IND 10UH 1.75A 95 MOHM SMD |
3,071 | - |
|
Datasheet | CDRH50D28B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±20% | 1.75 A | 1.7A | Shielded | 95mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.197" W (5.30mm x 5.00mm) | 0.118" (3.00mm) |
|
0415CDMCCDS-R22MCFIXED IND 220NH 12A 7.2MOHM SMD |
5,495 | - |
|
Datasheet | 0415CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 220 nH | ±20% | 12 A | 14A | Shielded | 7.2mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.059" (1.50mm) |
|
|
0415CDMCCDS-6R8MCFIXED IND 6.8UH 2.1A 206.4 MOHM |
2,888 | - |
|
Datasheet | 0415CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 6.8 µH | ±20% | 2.1 A | 2.5A | Shielded | 206.4mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.059" (1.50mm) |
|
|
0415CDMCCDS-2R2MCFIXED IND 2.2UH 3.3A 78MOHM SMD |
2,455 | - |
|
Datasheet | 0415CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 2.2 µH | ±20% | 3.3 A | 5.5A | Shielded | 78mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.059" (1.50mm) |
|
|
0415CDMCCDS-3R3MCFIXED IND 3.3UH 3.2A 92.4MOHM SM |
1,823 | - |
|
Datasheet | 0415CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 3.3 µH | ±20% | 3.2 A | 4A | Shielded | 92.4mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.059" (1.50mm) |
|
CDRH125L125NP-331MCFIXED IND 330UH 900MA 674MOHM SM |
1,211 | - |
|
Datasheet | CDRH125/L125 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 330 µH | ±20% | 900 mA | 900mA | Shielded | 674mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
CDRH3D16NP-150NCFIXED IND 15UH 450MA 295MOHM SMD |
1,166 | - |
|
Datasheet | CDRH3D16 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 15 µH | ±30% | 450 mA | - | Shielded | 295mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.071" (1.80mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
