Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CDRH127NP-6R1NCFIXED IND 6.1UH 6.6A 17.6MOHM SM |
1,032 | - |
|
Datasheet | CDRH127 | Nonstandard | Tape & Reel (TR) | Active | - | - | 6.1 µH | -20%, +40% | 6.6 A | - | Shielded | 17.6mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|

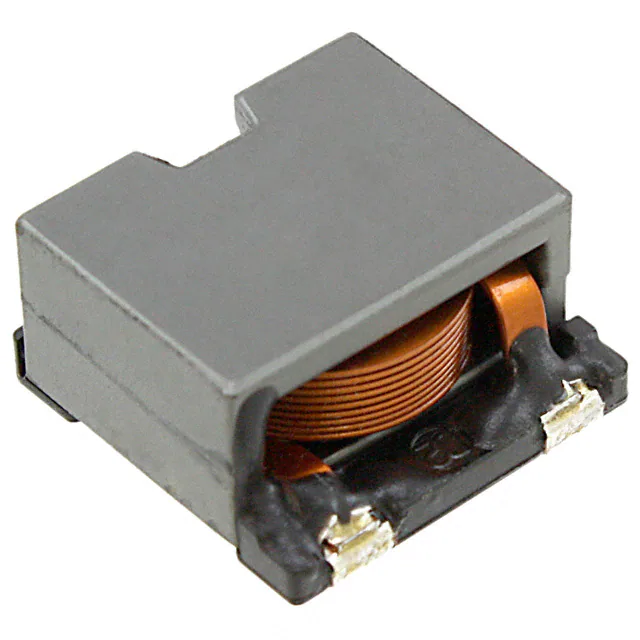

CDEP147NP-120MC-125FIXED IND 12UH 8.5A 13.31MOHM SM |
716 | - |
|
Datasheet | CDEP147 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 12 µH | ±20% | 8.5 A | 8A | Shielded | 13.31mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.571" L x 0.571" W (14.50mm x 14.50mm) | 0.315" (8.00mm) |
|
|
CDEP147NP-100MC-125FIXED IND 10UH 10A 9.85 MOHM SMD |
11,533 | - |
|
Datasheet | CDEP147 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 10 A | 9.2A | Shielded | 9.85mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.571" L x 0.571" W (14.50mm x 14.50mm) | 0.315" (8.00mm) |
|
|
CDEP147NP-6R1MC-95FIXED IND 6.1UH 11A 7.8 MOHM SMD |
3,722 | - |
|
Datasheet | CDEP147 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.1 µH | ±20% | 11 A | 14.8A | Shielded | 7.8mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.571" L x 0.571" W (14.50mm x 14.50mm) | 0.315" (8.00mm) |
|

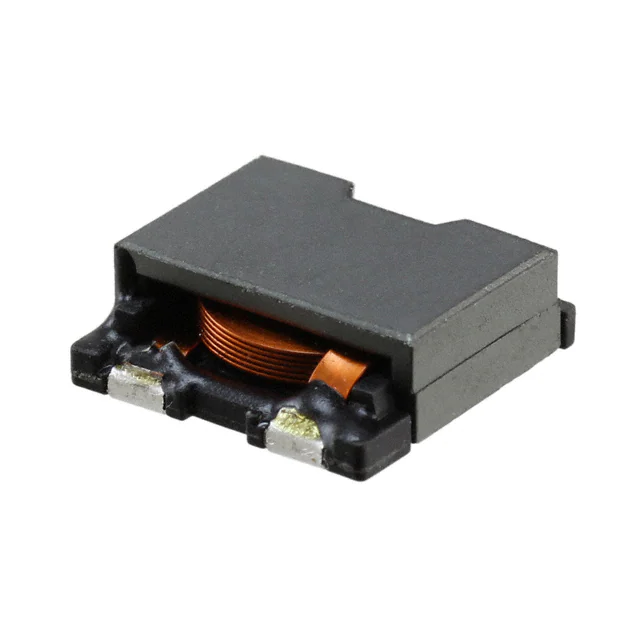

CDEP134NP-3R6MC-HFIXED IND 3.6UH 7.5A 12 MOHM SMD |
4,084 | - |
|
Datasheet | CDEP134 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.6 µH | ±20% | 7.5 A | 12.5A | Shielded | 12mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.531" W (13.50mm x 13.50mm) | 0.197" (5.00mm) |
|

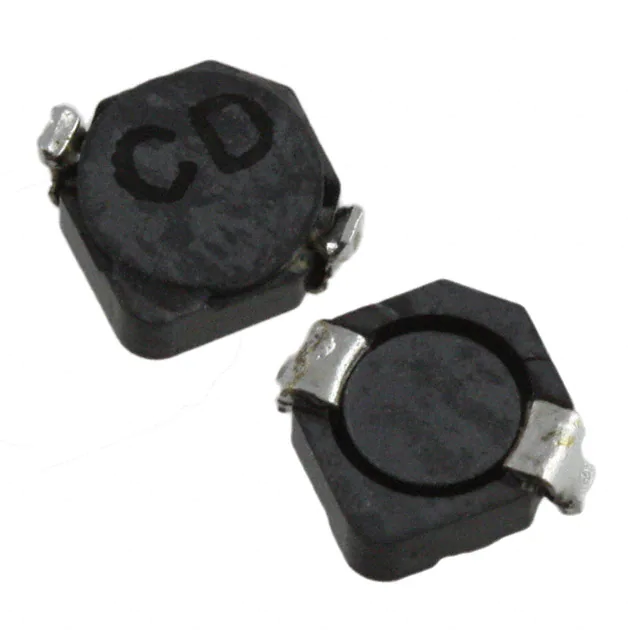

CDRH2D11/HPNP-100NCFIXED IND 10UH 520MA 559MOHM SMD |
39,761 | - |
|
Datasheet | CDRH2D11/HP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±30% | 520 mA | 520mA | Shielded | 559mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.043" (1.10mm) |
.jpg "252012CDMCDDS-2R2MC")
|
252012CDMCDDS-2R2MCFIXED IND 2.2UH 3A 82 MOHM SMD |
21,821 | - |
|
Datasheet | 252012CDMCD/DS | 1008 (2520 Metric) | Tape & Reel (TR) | Last Time Buy | Molded | Metal Composite | 2.2 µH | ±20% | 3 A | 2.8A | Shielded | 82mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
CDRH62BNP-470MC-BFIXED IND 47UH 500MA 690MOHM SMD |
48,674 | - |
|
Datasheet | CDRH62 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 47 µH | ±20% | 500 mA | - | Shielded | 690mOhm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.260" L x 0.244" W (6.60mm x 6.20mm) | 0.118" (3.00mm) |
|
0420CDMCCDS-1R0MCFIXED IND 1UH 6.5A 27 MOHM SMD |
91,556 | - |
|
Datasheet | 0420CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 1 µH | ±20% | 6.5 A | 8A | Shielded | 27mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.079" (2.00mm) |
|
|
252012CDMCDDS-R47MCFIXED IND 470NH 6.1A 21 MOHM SMD |
127,430 | - |
|
Datasheet | 252012CDMCD/DS | 1008 (2520 Metric) | Tape & Reel (TR) | Last Time Buy | Molded | Metal Composite | 470 nH | ±20% | 6.1 A | 6.2A | Shielded | 21mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
