Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TFL0816-33NFIXED IND 33NH 200MA 2 OHM SMD |
4,614 | - |
|
Datasheet | TFL | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | - | 33 nH | ±2% | 200 mA | - | Unshielded | 2Ohm Max | 15 @ 200MHz | 1.5GHz | - | - | 200 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.022" (0.55mm) |
|
PCMC063T-R68MNFIXED IND 680NH 15.5A 5.5MOHM SM |
2,613 | - |
|
Datasheet | PCMC | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 680 nH | ±20% | 15.5 A | 25A | Unshielded | 5.5mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|
|
PCMC063T-R82MNFIXED IND 820NH 13A 8 MOHM SMD |
1,151 | - |
|
Datasheet | PCMC | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 820 nH | ±20% | 13 A | 24A | Unshielded | 8mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|
PCMB063T-R82MSFIXED IND 820NH 13A 8 MOHM SMD |
2,344 | - |
|
Datasheet | PCMB | Nonstandard | Tape & Reel (TR) | Active | - | - | 820 nH | ±20% | 13 A | 24A | Unshielded | 8mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.274" L x 0.260" W (6.95mm x 6.60mm) | 0.110" (2.80mm) |
|

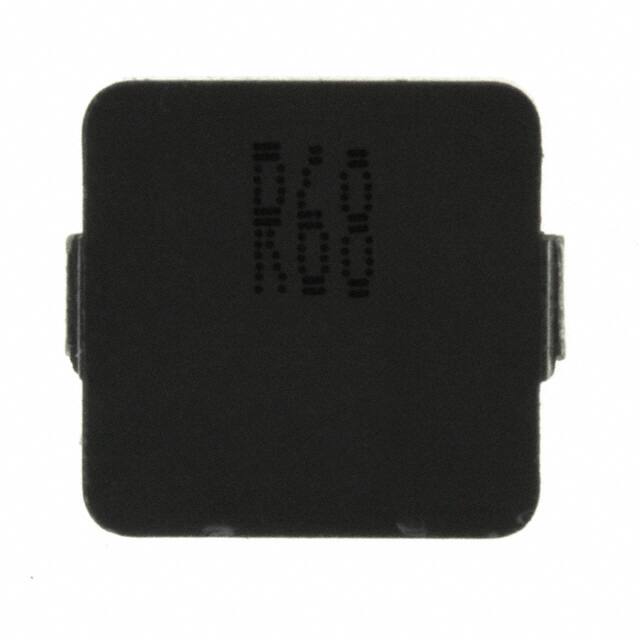

PCMC104T-R68MNFIXED IND 680NH 22A 2.7 MOHM SMD |
3,320 | - |
|
Datasheet | PCMC | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 680 nH | ±20% | 22 A | 39A | Unshielded | 2.7mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
PCMC104T-R88MNFIXED IND 880NH 20A 3 MOHM SMD |
1,899 | - |
|
Datasheet | PCMC | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 880 nH | ±20% | 20 A | 38A | Unshielded | 3mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
PCMC104T-2R2MNFIXED IND 2.2UH 12A 7 MOHM SMD |
2,534 | - |
|
Datasheet | PCMC | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 2.2 µH | ±20% | 12 A | 27A | Unshielded | 7mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
PCMB103T-R36MSFIXED IND 360NH 23A 1.6 MOHM SMD |
2,748 | - |
|
Datasheet | PCMB | Nonstandard | Tape & Reel (TR) | Active | - | - | 360 nH | ±20% | 23 A | 28A | Unshielded | 1.6mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.130" (3.30mm) |
|
|
PCMB103T-R47MSFIXED IND 470NH 23A 2.5 MOHM SMD |
2,910 | - |
|
Datasheet | PCMB | Nonstandard | Tape & Reel (TR) | Active | - | - | 470 nH | ±20% | 23 A | 26A | Unshielded | 2.5mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.130" (3.30mm) |
|
PCMC135T-R36MFFIXED IND 360NH 41A 1.1 MOHM SMD |
1,467 | - |
|
Datasheet | PCMC | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 360 nH | ±20% | 41 A | 75A | Unshielded | 1.1mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.189" (4.80mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
