Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LSDND2020MKT4R7MMFIXED IND 4.7UH 950MA 242MOHM SM |
4,575 | - |
|
Datasheet | LSDN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal | 4.7 µH | ±20% | 950 mA | 1.15A | Shielded | 242mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.047" (1.20mm) |
|
LSXBD6060YEL1R3NFIXED IND 1.3UH 4A 20.8 MOHM SMD |
2,925 | - |
|
Datasheet | LSXB | Nonstandard | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 1.3 µH | ±30% | 4 A | 8A | Shielded | 16mOhm | - | 95MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|

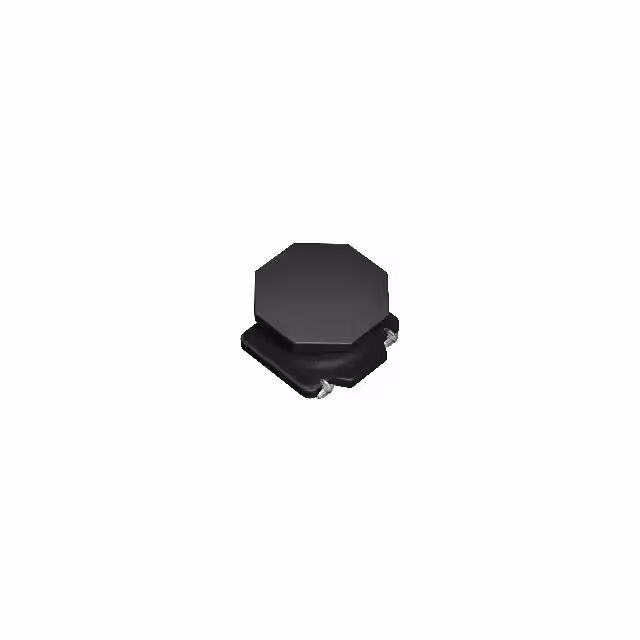

LSDND2020KKT4R7MMFIXED IND 4.7UH 750MA 435MOHM SM |
2,464 | - |
|
Datasheet | LSDN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal | 4.7 µH | ±20% | 750 mA | 1.05A | Shielded | 435mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.039" (1.00mm) |
|
LCXPD2020KKTR68N0GFIXED IND 680NH 1.85A 72MOHM SMD |
5,000 | - |
|
Datasheet | LCXP | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 680 nH | ±30% | 1.85 A | 1.85A | Unshielded | 60mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
NRS4010T3R3MDGGVFIXED IND 3.3UH 1.4A 120MOHM SMD |
4,860 | - |
|
Datasheet | NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 1.4 A | 1.1A | Shielded | 120mOhm Max | - | 60MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.039" (1.00mm) |
|
NR6020T1R5NFIXED IND 1.5UH 3.2A 31.2MOHM SM |
2,441 | - |
|
Datasheet | NR | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 3.2 A | 4A | Shielded | 31.2mOhm Max | - | 93MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.079" (2.00mm) |
|
|
NRS4010T220MDGGVFIXED IND 22UH 500MA 684MOHM SMD |
1,157 | - |
|
Datasheet | NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 500 mA | 450mA | Shielded | 684mOhm Max | - | 19MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.039" (1.00mm) |
|
NRS2012T1R0NGJVFIXED IND 1UH 1.7A 70 MOHM SMD |
6,245 | - |
|
Datasheet | NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 1.7 A | 1.9A | Shielded | 70mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.047" (1.20mm) |
|
|
NRS2012T4R7MGJVFIXED IND 4.7UH 910MA 241MOHM SM |
3,600 | - |
|
Datasheet | NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 910 mA | 900mA | Shielded | 241mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.047" (1.20mm) |
|
|
NRS6028T0R9NMGJVFIXED IND 900NH 4.6A 16.9MOHM SM |
2,000 | - |
|
Datasheet | NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 900 nH | ±30% | 4.6 A | 6.7A | Shielded | 16.9mOhm Max | - | 90MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.110" (2.80mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
